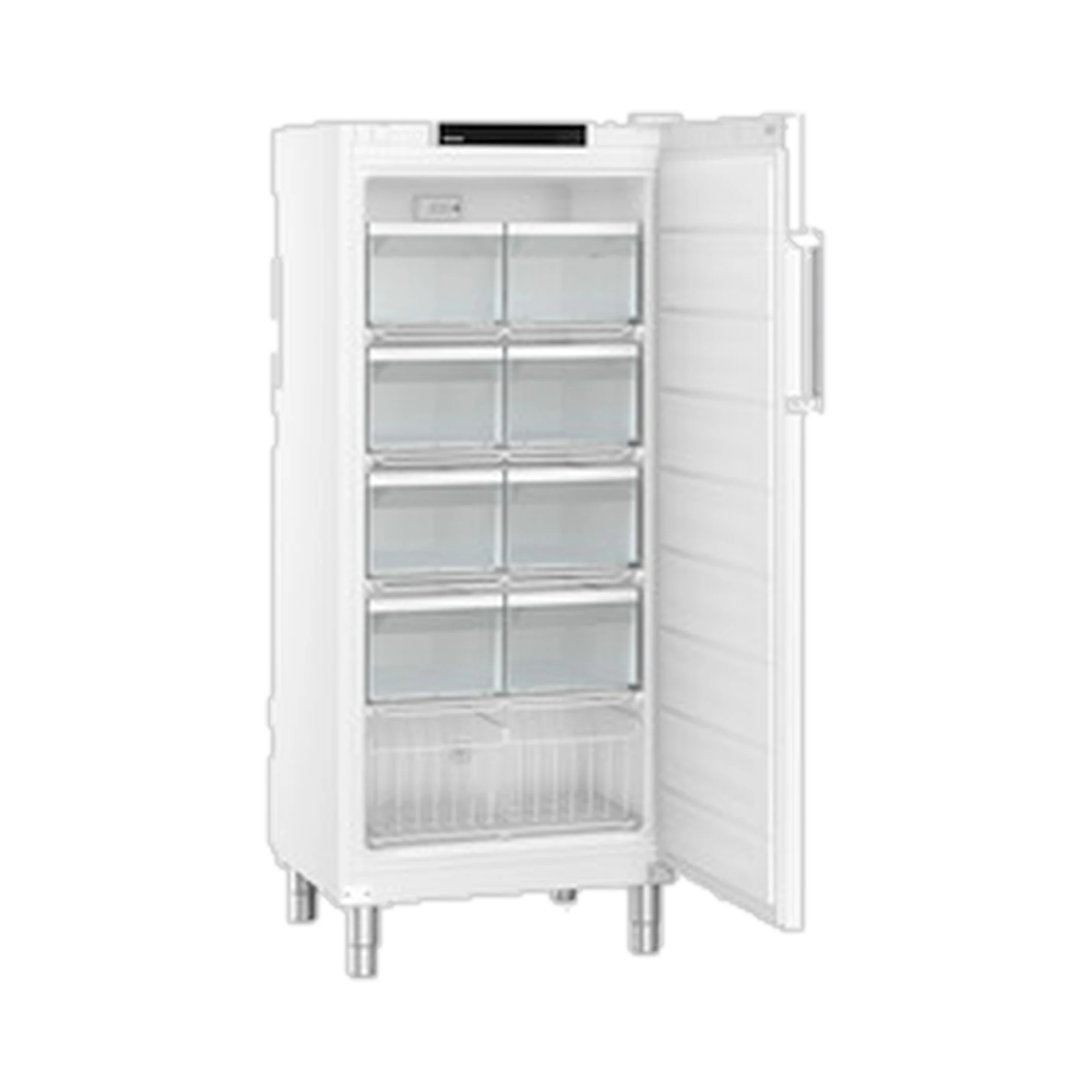

Liebherr FFFsg 5501 Freezer Cabinet, static cooling, 292 l, 2 baskets, 091699451

In busy kitchens, the freezer has to keep up: the Liebherr FFFsg 5501 is a storage freezer designed for professional use in the catering industry and maintains a reliable and stable temperature range of -9 °C to -26 °C, even at ambient temperatures of up to +40 °C. It meets the usual requirements for hygiene, the HACCP concept and storage in standardised GN containers, meaning that frozen goods can be stored directly from the preparation stage without the need for transfer.

Static cooling for consistent temperatures

The FFFsg 5501 operates using static cooling – i.e. without a fan-assisted circulation system – and reliably maintains the temperature within the range of -9 °C to -26 °C, even at a permissible ambient temperature of up to +40 °C. This design is particularly suitable for goods that need to be chilled without strong draughts, such as more delicate frozen goods, which could dry out more easily due to forced air circulation. The natural refrigerant R 290 is used (charge: 95 g), a refrigerant with very low global warming potential. The temperature is displayed digitally on the outside, so the status of the freezer can be checked at any time without opening the door and thereby losing cold air. In the event of a fault, the unit issues both visual and audible warnings, enabling staff to respond promptly before goods are damaged. Via a retrofittable Wi-Fi/LAN interface, the freezer cabinet can be integrated into an existing kitchen or business network as required, for example for centralised temperature monitoring of multiple units.

Interior layout with 2 baskets and 5 shelves

This version of the FFFsg 5501 features 5 shelves and 2 baskets in the 600 x 400 mm cross-slot format. It has a net capacity of 292 litres (gross capacity of 499 litres). The aluminium handle provides a secure grip even when wearing gloves; the door opens to the right but is reversible, allowing the unit to be flexibly integrated into the existing kitchen layout, regardless of whether worktop space is required to the right or left of it. Defrosting is carried out manually, and the lock is mechanical, ensuring simple, robust operation without electronic components, which is particularly beneficial in busy kitchens.

Robustly built for continuous use

The housing and door are made of robust steel, whilst the inner container is made of white plastic – a combination of materials designed for durability in everyday kitchen use and easy cleaning. Smooth, seamless surfaces can be wiped down quickly in a commercial kitchen environment and thus meet standard hygiene requirements. Four height-adjustable feet (150 to 180 mm) compensate for uneven floors and ensure a stable, secure footing, even when fully loaded with 292 litres of frozen goods.

Typical applications

• Deep-freeze storage in restaurant kitchens and canteens
• Stock management for catering businesses
• Temporary storage of prepared meals in professional kitchens

Particularly when preparing for service, when quick access to specific product groups is required, the combination of shelving and baskets helps you keep track of the stored goods, rather than having to search through an unsorted freezer compartment. The two baskets are particularly suitable for small items that would otherwise easily get lost amongst larger containers.

Installation and connection

With external dimensions of 181.8 x 74.7 x 76.9 cm (H x W x D) and a net weight of 103.40 kg, the FFFsg 5501 is designed for a fixed installation in the kitchen. When the door is open, the appliance requires a width of 79.2 cm; it is worth taking this into account when planning the layout, particularly if it is to be installed in a narrow kitchen unit. The appliance operates at 220 to 240 V with a connected load of 2.0 A and is supplied with a 3,000 mm long power cable, which is sufficient even for sockets situated slightly further away. According to the product specifications, the annual energy consumption is 1,234 kWh. When packed, the freezer cabinet has a gross weight of 109.20 kg and measures 76.5 x 84.0 x 185.0 cm (W x D x H), information which is useful when transporting it into the building and when planning delivery.

Technical details

Contents

• 1x Liebherr FFFsg 5501 freezer cabinet
• User manual

Customised requirements & procurement service

Do you require a different Liebherr size, suitable baskets/inserts, or assistance in selecting the right freezer cabinet for your kitchen? Through our procurement service, LT Laborhandel will be happy to assist you with procurement and configuration.
