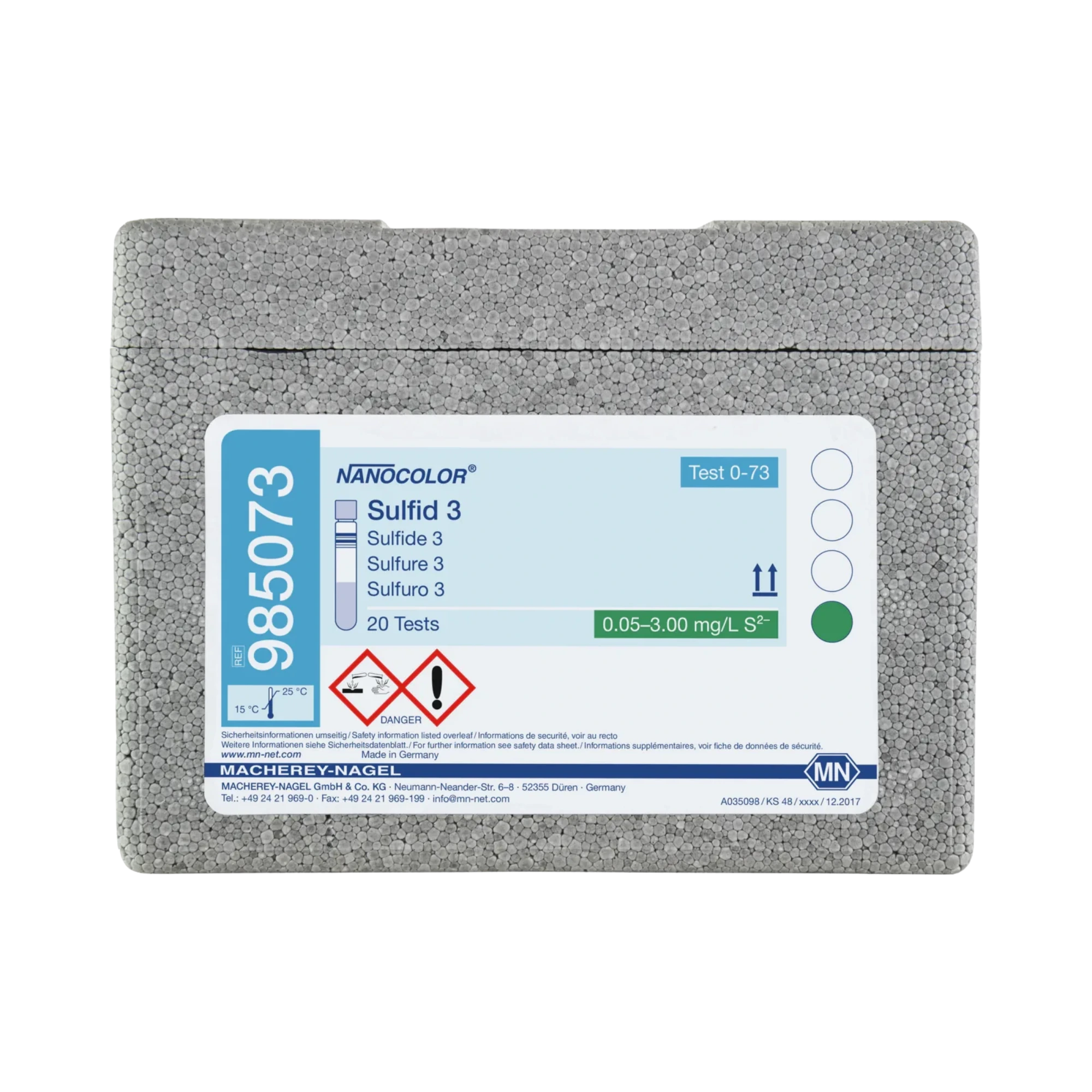

Macherey-Nagel NANOCOLOR Sulphide 3 Round-bottomed Flask Test, 985073

Smart Photometry: A revolutionary approach to laboratory operations The NANOCOLOR UV/VIS II heralds a new era in water and wastewater analysis. As a high-precision spectrophotometer with a wavelength range of 190 to 1100 nm, it combines high-end analysis with a user experience familiar from your smartphone or tablet. The centrepiece is the brilliant 10.1-inch HD touchscreen, which makes complex measurement procedures child’s play thanks to an intuitive, icon-based menu system. Integrated quality assurance and safety Unique in this class of instrument is the fully automatic turbidity control function (NTU-Check). As turbidity in samples is often not visually detectable but can significantly distort measurement results, the NANOCOLOR UV/VIS II automatically measures turbidity during every analysis and alerts the user in the event of interference. The integrated test equipment monitoring and the direct generation of IQK charts (e.g. in accordance with DWA-A 704) directly within the instrument facilitate audits and guarantee maximum process reliability. Connectivity and Versatility The instrument is equipped for the modern laboratory environment: it features all relevant interfaces (LAN, RS232, USB) for seamless integration with laboratory information management systems (LIMS). The integrated 2D barcode scanner automatically recognises cuvette tests, selects the method and performs the measurement – without any manual intervention. In addition to standard routine tests, comprehensive colour measurements, real-time scans and specialised brewery analysis (MEBAK) are pre-installed. Technical details Device type: UV-VIS spectrophotometer with reference detector technology Wavelength range: 190 – 1100 nm Display: 10.1" HD touchscreen with backlighting Operation: Icon-based menu navigation (similar to a smartphone) Barcode technology: Integrated 2D barcode scanner with cuvette recognition Interfaces: LAN, RS 232, USB (host/device) Quality assurance: Integrated turbidity check (NTU Check), IQK menu Applications: Round cuvette tests, rectangular cuvette tests, scans, colour measurement, turbidity Power supply: 110–240 V, 50/60 Hz Scope of delivery NANOCOLOR UV/VIS II spectrophotometer Mains adaptor / power cable Quick start guide / User manual Protective cover Please note: Cuvette tests and other accessories are not included in the scope of delivery. Customised requirements & procurement service Do you need suitable round-bottom cuvette tests for COD, ammonium or phosphate? Or are you looking for the right thermal printer unit and certified test equipment? We can put together your complete analytical package. Contact our procurement service for a personalised consultation.

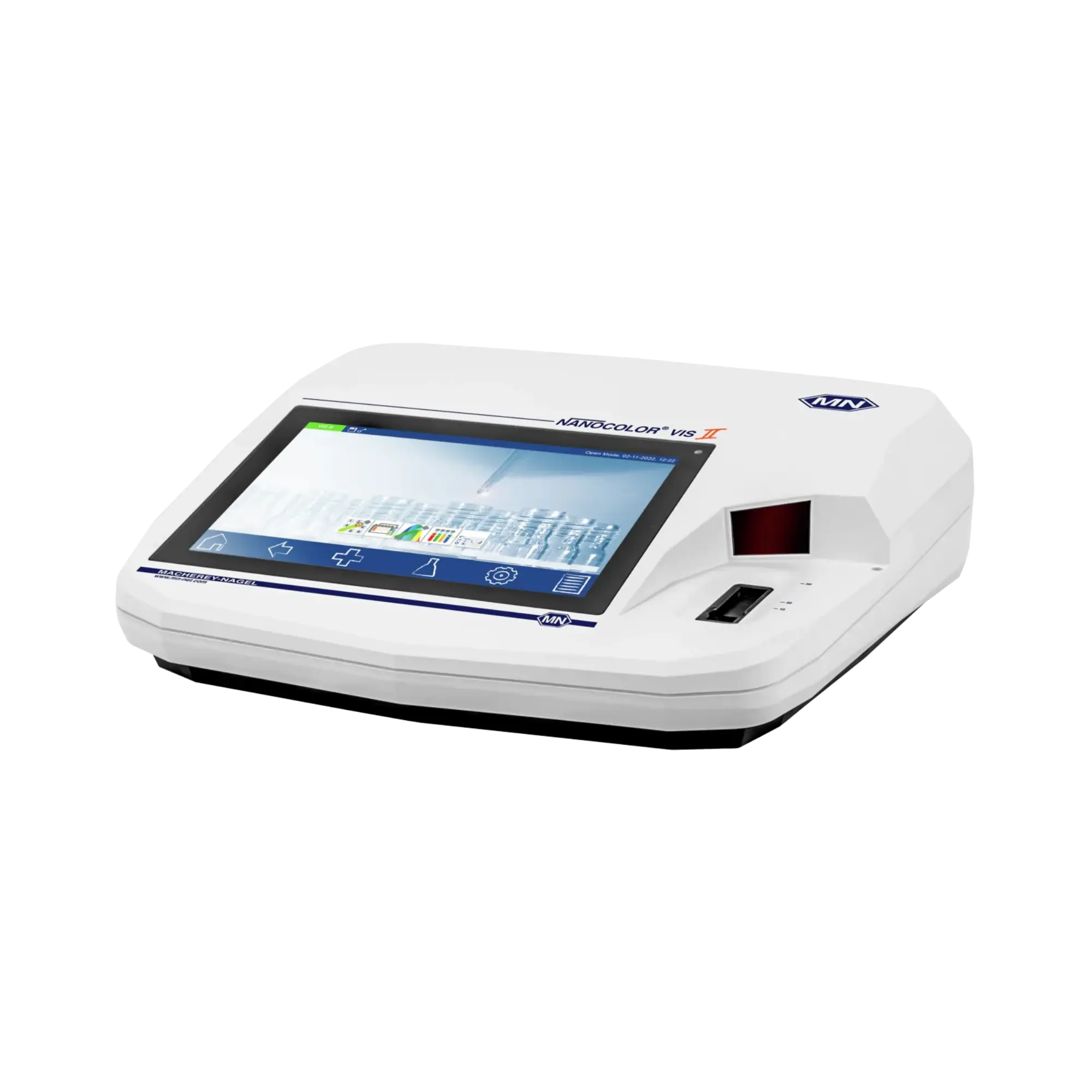

Precise water and wastewater analysis requires reliable measurement technology that is easy to use in day-to-day laboratory work. The NANOCOLOR VIS II photometer from Macherey-Nagel covers the wavelength range from 320–1100 nm and combines high-quality optics with an icon-based, touchscreen menu system for a quick start without the need for lengthy training. Precise measurement technology for everyday laboratory use At its core, the instrument utilises monochromator optics and reference detector technology (RDT). Photometric linearity is < 0.5 % (≤ 2 A) or ≤ 1 % (> 2 A), wavelength accuracy is ± 1 nm and the spectral bandwidth is < 4 nm. A complete scan is completed in less than a minute – ensuring reproducible results in daily measurement routines. The instrument is also insensitive to extraneous light and measures via an open cuvette chamber. Operation, Methods & Connectivity Operation is via barcode technology and a 10.1″ LED-backlit HD display with a projective-capacitive touchscreen (PCAP). Over 200 pre-programmed tests and 99 freely programmable methods cover absorbance, transmittance, factor, kinetic and scan measurements. Connections to laboratory information management systems (LIMS) are available via LAN, 2× USB (host), 1× USB (function) and RS232; the internal data storage (16 GB Micro-SDHC) can hold 5,000 measured values and 100 spectra or colour measurements. Software updates can be installed free of charge via a USB stick. Quality Assurance & Compliance Data storage is GLP-compliant, and internal quality control is carried out via NANOCONTROL NANOCHECK 2.0. In addition, the instrument offers nephelometric turbidity measurement at 860 nm in accordance with ISO 7027 (measuring range 0.1–1000 NTU) – turbidity is thus detected and reported during the measurement itself. The photometer is CE-certified and comes with a 2-year warranty. Versatile In addition to standard measurements (absorbance, transmittance, factor), the NANOCOLOR VIS II also covers kinetic measurements, colour measurements and turbidity determinations. The cuvette chamber accommodates round cuvettes (16 mm OD) as well as rectangular cuvettes (10 mm, 20 mm, 40 mm, 50 mm) and is designed for use with NANOCOLOR round and rectangular cuvette tests. Technical details Type Spectrophotometer with reference detector technology (RDT) Wavelengths 320–1100 nm Wavelength resolution 0.1 nm Wavelength accuracy ± 1 nm Wavelength reproducibility < 0.5 nm Wavelength selection Automatic, barcode, manual Wavelength calibration Automatic Spectral bandwidth < 4 nm Optics Monochromator Photometric range ± 3.0 E in the wavelength range 340 nm–900 nm Photometric linearity < 0.5% at ≤ 2 A; ≤ 1% at > 2 A Photometric accuracy 0.005 A at 0.0–0.5 A; 1 % at 0.5–2.0 A Stray light < 0.1 % Scanning speed 1 complete scan in less than 1 min Display 10.1″ LED-backlit HD display, anti-reflective cover glass with projective capacitive touchscreen (PCAP) Operation Barcode technology, icon-based on-screen menu navigation, touchscreen Measurement modes Over 200 pre-programmed tests and special methods, 99 freely programmable methods, absorbance, transmittance, factor, kinetics, scan, nephelometric turbidity measurement Pre-programmed tests NANOCOLOR round cuvette tests and rectangular cuvette tests Cuvette well Round cuvettes 16 mm OD, rectangular cuvettes 10 mm, 20 mm, 40 mm, 50 mm External light Insensitive to extraneous light, open shaft Turbidity measurement Nephelometric turbidity measurement at 860 nm (in accordance with ISO 7027), 0.1–1000 NTU Internal quality control With NANOCONTROL NANOCHECK 2.0 Data storage 16 GB Micro SDHC card, 5,000 measured values, 100 spectra or colour measurements, GLP-compliant Interfaces LAN, 2 x USB (host), 1 x USB (function) and RS232 Update Free via USB stick Language DE / EN / FR / ES / PT / PL / HU / NL / CZ / RO / IT Light source Halogen lamp Power supply Input 110–240 V AC, output 12 V 3 A DC Operating range 10–40 °C, max. 80% relative humidity (non-condensing) Dimensions (L x W x H) 360 x 400 x 110 mm Weight 4 kg Gross weight (including packaging) 7272 g Packaging dimensions 542 x 474 x 276 mm CE-certified Yes Hazardous substances No Warranty 2 years Trademark NANOCOLOR Contents Photometer, manual (quick start guide), touch pen, dust cover, mains adaptor with country-specific plugs, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth

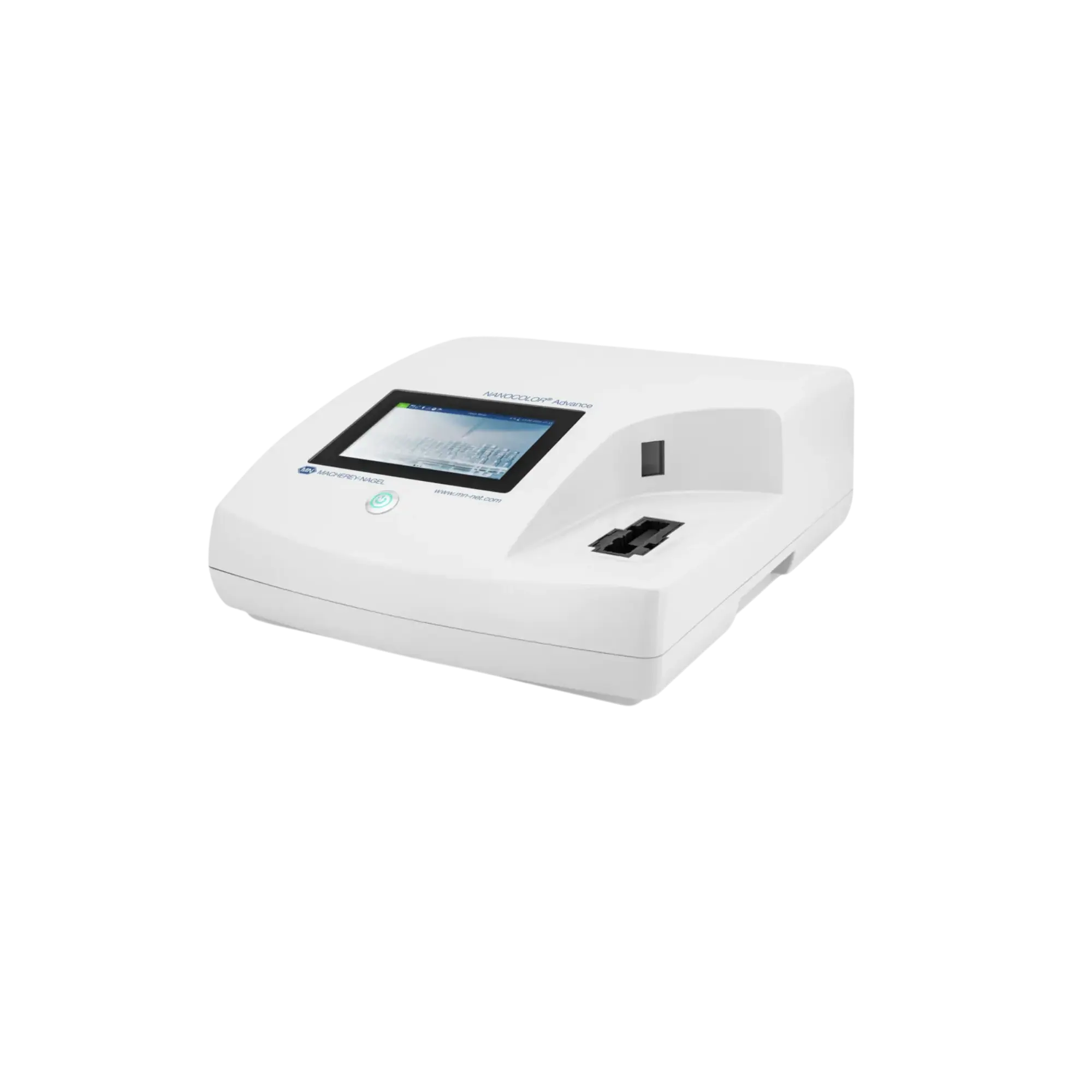

Precise water and wastewater analysis is not always confined to a fixed laboratory setting. The NANOCOLOR Advance spectrophotometer from Macherey-Nagel combines the key features of the PF-12Plus portable compact photometer with the precision of the NANOCOLOR VIS II spectrophotometer – and, thanks to its built-in rechargeable battery, can also be used on the move. Precise measurement technology, suitable for mobile use With a wavelength range of 340–800 nm, the NANOCOLOR Advance measures all photometrically analysable test kits from Macherey-Nagel, thereby covering the entire spectrum of water and wastewater analysis. Reference Detector Technology (RDT) and monochromator optics ensure reliable results; photometric linearity is < 0.5 % (0.5–2.0 E) or ≤ 1 % (> 2 E with a neutral glass filter at 546 nm). The built-in rechargeable battery (6.4 V, 7.2 Ah) allows operation even without a mains connection. Operation & Methods Operation is via barcode technology and a backlit, colour 5″ LCD touchscreen with icon-based menu navigation. Over 200 pre-programmed tests and special methods, as well as 99 freely programmable methods, cover absorbance, transmittance, factor, kinetic and scan measurements; VISOCOLOR ECO tests and Powder Pillows can also be analysed. The data memory holds 1,000 measurement results, 1,000 IQK results and 100 scans, in accordance with GLP. Quality assurance & versatility The instrument is insensitive to extraneous light and measures via an open shaft. In addition, it offers nephelometric turbidity measurement at 860 nm in accordance with ISO 7027 (16 and 24 mm cuvettes, measuring range 1–1,000 NTU). The cuvette shaft accommodates round cuvettes (16 mm, 24 mm outer diameter) as well as rectangular cuvettes (10, 20, 40, 50 mm). The photometer is CE-certified and comes with a 2-year warranty. Technical details Type Spectrophotometer with reference detector technology (RDT) Wavelengths 340 nm–800 nm Wavelength resolution 1 nm Wavelength accuracy ± 2 nm Wavelength reproducibility ± 0.1 nm Wavelength selection Automatic, barcode, manual Wavelength calibration Automatic Spectral bandwidth < 4 nm Optics Monochromator Photometric range ± 3.0 E in the wavelength range 340–800 nm Photometric linearity < 0.5% at 0.5–2.0 E; ≤ 1% at > 2 E with a neutral glass filter at 546 nm Photometric accuracy 0.003 E at 0.0–0.5 E; 1 % at 0.5–2.0 E Stray light < 0.5 % Scanning speed 1 complete scan in less than 3 minutes Display Backlit, colour 5″ LCD touchscreen Operation Barcode technology, icon-based on-screen menu navigation, touchscreen Measurement modes Over 200 pre-programmed tests and special methods, 99 freely programmable methods, absorbance, transmittance, factor, kinetics, scan, nephelometric turbidity measurement Pre-programmed tests NANOCOLOR round cuvette tests and rectangular cuvette tests, VISOCOLOR ECO tests and Powder Pillows Cuvette compartment Round cuvettes 16 mm, 24 mm outer diameter, rectangular cuvettes 10 mm, 20 mm, 40 mm, 50 mm Extraneous light Insensitive to extraneous light, open shaft Turbidity measurement Nephelometric turbidity measurement at 860 nm (in accordance with ISO 7027, 16 and 24 mm), 1–1000 NTU Data storage 1000 measurement results, 1000 IQK results, 100 scans; GLP-compliant Interfaces LAN (CAT 6, use only shielded cables with a maximum length of 20 m), 2 x USB (Host), 1 x USB (Function) Update Free via USB stick Power supply Input 110–240 V AC, output 12 V 3 A DC; 6.4 V, 7.2 Ah via built-in rechargeable battery Operating range 10–40 °C, max. 80% relative humidity (non-condensing) Dimensions (L x W x H) 325 x 280 x 130 mm Weight 3.8 kg Gross weight (including packaging) 5100 g Packaging dimensions 400 x 370 x 190 mm CE-certified Yes Warranty 2 years Trademark NANOCOLOR Contents Photometer, manual (quick start guide), touch pen, dust cover, mains adaptor with country-specific plugs, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth

The PF-3 Pool compact photometer is the smallest member of the Macherey-Nagel photometer range and has been specially designed to meet the requirements of swimming pool analysis. It enables the measurement of total alkalinity, cyanuric acid, pH and chlorine, directly on site, without the need for a laboratory connection. Compact and robust for on-site use Measuring 170 x 95 x 68 mm and weighing just 0.5 kg, the PF-3 Pool is a true lightweight and the ideal companion for field analysis. The housing is shock-resistant, waterproof and dustproof, certified to IP 68, ready for mobile use right by the pool. Intuitive operation, low maintenance Operation is via an intuitive menu system with a membrane keypad, test initiation directly from parameter lists and an illuminated graphic display (128 x 64 pixels). As an LED photometer with microprocessor control, the device offers self-testing and auto-calibration. The open cuvette chamber is insensitive to extraneous light, ensuring reliable measurements even under changing light conditions in outdoor swimming pool areas. Flexible power supply and data connectivity The PF-3 Pool is powered by 3 AA batteries or via a USB interface (mini-USB), with the option of an internal battery pack. An adjustable auto-off function (5, 10, 15 or 20 minutes, or when inactive) helps to conserve power. The internal memory can store 50 measurements, and software updates are available free of charge via the internet or a PC. Technical details Dimensions (L x W x H) 170 x 95 x 68 mm Display Backlit graphic display, 128 x 64 pixels Auto-off function Inactive or automatic switch-off after 5 mins, 10 mins, 15 mins, 20 mins Operation Intuitive menu navigation, membrane keypad, test initiation from parameter lists Operating range 10-40 °C, max. 80 % relative humidity (non-condensing) Standards/Certificates CE-certified Data storage 50 measurements Ambient light Insensitive to ambient light, open shaft Hazardous substances No Housing Shock-resistant, waterproof and dustproof, certified to IP 68 Weight 0.5 kg Gross weight (including packaging) 800 g Cuvette well Round cuvettes, 16 mm outer diameter Light source LED Scope of delivery Photometer, manual, batteries and certificate Optics LED + interference filter Interfaces Mini-USB Power supply 3 AA batteries / rechargeable batteries, USB interface; optional internal battery pack Type LED photometer with microprocessor control, self-test and auto-calibration Update Free via the internet / PC Packaging dimensions 260 x 215 x 80 mm Pre-programmed tests NANOCOLOR round cuvette tests, VISOCOLOR ECO tests and Powder Pillows Wavelengths 450 nm / 530 nm / 590 nm Wavelength accuracy ± 2 nm, half-width 10 nm-12 nm

The PF-3 Fish compact photometer is the smallest member of the Macherey-Nagel photometer range and has been specially designed to meet the requirements of fisheries water analysis. It enables the measurement of ammonium, chlorine, iron, silicic acid, copper, nitrate, nitrite, pH, phosphate and oxygen, directly on site, without the need for a laboratory connection. Compact and robust for on-site use Measuring 170 x 95 x 68 mm and weighing just 0.5 kg, the PF-3 Fish is a true lightweight and the ideal companion for field analysis. The housing is shock-resistant, waterproof and dustproof, certified to IP 68, ready for mobile use in and around bodies of water. Wide range of parameters for water analysis With ten supported measurement parameters, the PF-3 Fish covers a particularly wide range for monitoring fishing waters, from classic nutrient parameters (ammonium, nitrate, nitrite, phosphate) through to metals (iron, copper) and oxygen, pH, chlorine and silicic acid. Intuitive operation, low maintenance Operation is via an intuitive menu system with a membrane keypad, test initiation directly from parameter lists and an illuminated graphic display (128 x 64 pixels). As an LED photometer with microprocessor control, the instrument offers self-testing and auto-calibration. The open cuvette chamber is insensitive to extraneous light, ensuring reliable measurements even under changing light conditions in the field. Flexible power supply and data connectivity The PF-3 Fish is powered by 3 AA batteries or via a USB interface (mini-USB), with the option of an internal battery pack. An adjustable auto-off function (5, 10, 15 or 20 minutes, or when inactive) helps to conserve power. The internal memory can store 50 measurements, and software updates are available free of charge via the internet or a PC. Technical details Dimensions (L x W x H) 170 x 95 x 68 mm Display Backlit graphic display, 128 x 64 pixels Auto-off function Inactive or automatic switch-off after 5 mins, 10 mins, 15 mins, 20 mins Operation Intuitive menu navigation, membrane keypad, test initiation from parameter lists Operating range 10-40 °C, max. 80% relative humidity (non-condensing) Standards/Certificates CE-certified Data storage 50 measurements Ambient light Insensitive to ambient light, open shaft Hazardous substances No Housing Shock-resistant, waterproof and dustproof, certified to IP 68 Weight 0.5 kg Gross weight (including packaging) 844 g Cuvette well Round cuvettes, 16 mm outer diameter Light source LED Scope of delivery Photometer, manual, batteries and certificate Optics LED + interference filter Interfaces Mini-USB Power supply 3 AA batteries / rechargeable batteries, USB interface; optional internal battery pack Type LED photometer with microprocessor control, self-test and auto-calibration Update Free via the internet / PC Packaging dimensions 263 x 222 x 86 mm Pre-programmed tests NANOCOLOR round cuvette tests, VISOCOLOR ECO tests and Powder Pillows Wavelengths 450 nm / 530 nm / 660 nm Wavelength accuracy ± 2 nm, half-width 10 nm-12 nm

The PF-3 COD compact photometer is the smallest member of the Macherey-Nagel photometer range and has been specifically designed to meet the requirements of COD (Chemical Oxygen Demand) analyses. It supports the measurement of most NANOCOLOR COD round-cell tests, directly on site, without the need for a laboratory connection. Compact and robust for on-site use Measuring 170 x 95 x 68 mm and weighing just 0.5 kg, the PF-3 COD is a true lightweight and the ideal companion for field analysis. The housing is shock-resistant, waterproof and dustproof, certified to IP 68, ready for mobile use outside the laboratory. Optimised for NANOCOLOR COD round-cell tests Unlike the other PF-3 variants, the PF-3 COD is specifically designed for use with most NANOCOLOR CSB round-bottomed cuvette tests, this allows the CSB value to be determined quickly and easily on site, for example when monitoring wastewater or process water samples. Intuitive operation, low maintenance Operation is via an intuitive menu system with a membrane keypad, test selection directly from parameter lists and an illuminated graphic display (128 x 64 pixels). As an LED photometer with microprocessor control, the instrument features a self-test and auto-calibration function. The open cuvette chamber is insensitive to extraneous light, ensuring reliable measurements even under changing light conditions in the field. Flexible power supply and data connectivity The PF-3 COD is powered by 3 AA batteries or via a USB interface (mini-USB), with the option of an internal battery pack. An adjustable auto-off function (5, 10, 15 or 20 minutes, or when inactive) helps to conserve power. The internal memory can store 50 measurements, and software updates are available free of charge via the internet or a PC. Technical details Dimensions (L x W x H) 170 x 95 x 68 mm Display Backlit graphic display, 128 x 64 pixels Auto-off function Inactive or automatic switch-off after 5 mins, 10 mins, 15 mins, 20 mins Operation Intuitive menu navigation, membrane keypad, test initiation from parameter lists Operating range 10-40 °C, max. 80 % relative humidity (non-condensing) Standards/Certificates CE-certified Data storage 50 measurements Ambient light Insensitive to ambient light, open shaft Hazardous substances No Housing Shock-resistant, waterproof and dustproof, certified to IP 68 Weight 0.5 kg Gross weight (including packaging) 850 g Cuvette well Round cuvettes, 16 mm outer diameter Light source LED Scope of delivery Photometer, manual, batteries and certificate Optics LED + interference filter Interfaces Mini-USB Power supply 3 AA batteries / rechargeable batteries, USB interface; optional internal battery pack Type LED photometer with microprocessor control, self-test and auto-calibration Update Free via the internet / PC Packaging dimensions 260 x 220 x 80 mm Pre-programmed tests NANOCOLOR round cuvette tests Wavelengths 365 nm / 450 nm / 595 nm Wavelength accuracy ± 2 nm, half-width 10 nm-12 nm

The PF-3 Soil compact photometer is the smallest member of the Macherey-Nagel photometer range and has been specially designed to meet the requirements of soil analysis. It enables the measurement of ammonium, nitrate, phosphorus and potassium, directly on site, without the need for a laboratory connection. Compact and robust for on-site use Measuring 170 x 95 x 68 mm and weighing just 0.5 kg, the PF-3 Soil is a true lightweight and the ideal companion for field analysis. The housing is shock-resistant, waterproof and dustproof, certified to IP 68, ready for mobile use outside the laboratory. Intuitive operation, low maintenance Operation is via an intuitive menu system with a membrane keypad, test selection directly from parameter lists and an illuminated graphic display (128 x 64 pixels). As an LED photometer with microprocessor control, the instrument features a self-test and auto-calibration function. The open cuvette chamber is insensitive to extraneous light, ensuring reliable measurements even under changing light conditions in the field. Flexible power supply and data connectivity The PF-3 Soil is powered by 3 AA batteries or via a USB interface (mini-USB), with the option of an internal battery pack. An adjustable auto-off function (5, 10, 15 or 20 minutes, or when inactive) helps to conserve power. The internal memory can store 50 measurements, and software updates are available free of charge via the internet or a PC. Technical details Dimensions (L x W x H) 170 x 95 x 68 mm Display Backlit graphic display, 128 x 64 pixels Auto-off function Inactive or automatic switch-off after 5 mins, 10 mins, 15 mins, 20 mins Operation Intuitive menu navigation, membrane keypad, test initiation from parameter lists Operating range 10-40 °C, max. 80 % relative humidity (non-condensing) Standards/Certificates CE-certified Data storage 50 measurements Ambient light Insensitive to ambient light, open shaft Hazardous substances No Housing Shock-resistant, waterproof and dustproof, certified to IP 68 Weight 0.5 kg Gross weight (including packaging) 800 g Cuvette well Round cuvettes, 16 mm outer diameter Light source LED Scope of delivery Photometer, manual, batteries and certificate Optics LED + interference filter Interfaces Mini-USB Power supply 3 AA batteries / rechargeable batteries, USB interface; optional internal battery pack Type LED photometer with microprocessor control, self-test and auto-calibration Update Free via the internet / PC Packaging dimensions 260 x 220 x 80 mm Pre-programmed tests NANOCOLOR round cuvette tests, VISOCOLOR ECO tests and Powder Pillows Wavelengths 365 nm / 450 nm / 660 nm Wavelength accuracy ± 2 nm, half-width 10 nm-12 nm

The PF-3 Drinking Water compact photometer is the smallest member of the Macherey-Nagel photometer range and has been specifically designed to meet the requirements of drinking water analysis. It enables the measurement of chlorine dioxide, chlorine, pH, iron and fluoride, directly on site, without the need for a laboratory connection. Compact and robust for on-site use Measuring 170 x 95 x 68 mm and weighing just 0.5 kg, the PF-3 Drinking Water is a true lightweight and the ideal companion for field analysis. The housing is shock-resistant, waterproof and dustproof, certified to IP 68, ready for mobile use outside the laboratory. Intuitive operation, low maintenance Operation is via an intuitive menu system with a membrane keypad, test selection directly from parameter lists and an illuminated graphic display (128 x 64 pixels). As an LED photometer with microprocessor control, the instrument features a self-test and auto-calibration function. The open cuvette chamber is insensitive to extraneous light, ensuring reliable measurements even under changing light conditions in the field. Flexible power supply and data connectivity The PF-3 Drinking Water is powered by 3 AA batteries or via a USB interface (mini-USB), with the option of an internal battery pack. An adjustable auto-off function (5, 10, 15 or 20 minutes, or when inactive) helps to conserve power. The internal memory can store 50 measurements, and software updates are available free of charge via the internet or a PC. Technical details Dimensions (L x W x H) 170 x 95 x 68 mm Display Backlit graphic display, 128 x 64 pixels Auto-off function Inactive or automatic switch-off after 5 mins, 10 mins, 15 mins, 20 mins Operation Intuitive menu navigation, membrane keypad, test initiation from parameter lists Operating range 10-40 °C, max. 80 % relative humidity (non-condensing) Standards/Certificates CE-certified Data storage 50 measurements Ambient light Insensitive to ambient light, open shaft Hazardous substances No Housing Shock-resistant, waterproof and dustproof, certified to IP 68 Weight 0.5 kg Gross weight (including packaging) 846 g Cuvette compartment Round cuvettes, 16 mm outer diameter Light source LED Scope of delivery Photometer, manual, batteries and certificate Optics LED + interference filter Interfaces Mini-USB Power supply 3 AA batteries / rechargeable batteries, USB interface; optional internal battery pack Type LED photometer with microprocessor control, self-test and auto-calibration Update Free via the internet / PC Packaging dimensions 263 x 222 x 83 mm Pre-programmed tests NANOCOLOR round cuvette tests, VISOCOLOR ECO tests and Powder Pillows Wavelengths 450 nm / 530 nm / 590 nm Wavelength accuracy ± 2 nm, half-width 10 nm-12 nm

The Macherey-Nagel PF-12Plus compact photometer is a highly advanced, optoelectronic system solution for the precise, mobile and stationary analysis of water, wastewater and environmental samples. As a portable laboratory instrument, this photometer combines state-of-the-art filter photometry with maximum flexibility, whether used directly at the point of interest (POI) or in a traditional laboratory setting. When monitoring critical water parameters, industrial process water flows or municipal sewage treatment works, the accurate and rapid determination of substance concentrations is the primary criterion for documenting and controlling statutory limit values in a way that is gentle on materials, comprehensive and process-reliable. The optical architecture of the PF-12Plus is based on a long-life xenon flash lamp and a precisely calibrated sensor system with seven integrated interference filters. This spectral configuration enables reliable coverage of all relevant wavelengths for the evaluation of Macherey-Nagel’s renowned VISOCOLOR® ECO and NANOCOLOR® round-cell tests. An outstanding mechatronic safety feature is the integrated nephelometric turbidity measurement (NTU-Check). This advanced control function automatically detects interfering turbidity in the sample cuvette during the measurement process and reliably alerts the user to potential measurement errors, an invaluable advantage for analytical validity in harsh field conditions. The photometer’s mechatronic system architecture is consistently designed for maximum user ergonomics and flexibility under changing environmental conditions. Over 100 pre-programmed methods for common parameters (such as ammonium, nitrate, nitrite, COD, phosphorus or heavy metals) enable error-free direct measurement without time-consuming calibration cycles. The splash-proof housing and intuitive menu navigation via the large, backlit graphic display ensure absolutely safe handling for laboratory and service staff. Thanks to flexible power management, optionally via batteries, rechargeable batteries, the integrated USB cable or an external power supply, uninterrupted operational readiness in the field is permanently ensured. To support modern quality management in accordance with stringent GLP and GMP guidelines, the PF-12Plus features an internal data memory for up to 1,000 measurement results, including time, date and sample ID stamps. Via the integrated USB interface, the raw data can be transferred quickly and without damaging the sample to the free NANOCOLOR® PC export software. This enables seamless digital archiving, statistical analysis and the convenient creation of certificates of analysis. The simple option to independently verify instrument calibrations using certified test solutions meets the highest requirements of audited quality management systems. Technical details Optics & Photometry Type: Filter photometer with microprocessor control, self-test and auto-calibration Light source: Extremely long-life xenon flash lamp Detector: Silicon photodiode Wavelengths (filters): 345 / 436 / 540 / 585 / 620 / 690 nm plus 860 nm for turbidity measurement Wavelength accuracy: +/- 2 nm Photometric range: +/- 3 Abs Photometric accuracy: +/- 1 % Turbidity measurement: Integrated NTU check (nephhelometric at 860 nm, measurement range 1-1000 NTU) Interfaces, memory & software Data storage: 1,000 measurements (GLP-compliant with date, time and sample number) Interface: USB 2.0 for bidirectional data transfer and power supply Pre-programmed tests: Over 100 pre-programmed methods (VISOCOLOR® ECO and NANOCOLOR®) User-defined methods: Up to 50 freely programmable methods Design & Power supply Display: Backlit graphic display (64 x 128 pixels) Cuvette holder: For round cuvettes with an external diameter of 16 mm (no adapter change required) Power supply: 4 x AA batteries, rechargeable batteries, USB interface or external mains adaptor Housing features: Robust, ergonomic design, splash-proof membrane keypad Dimensions (W x D x H): approx. 215 x 160 x 70 mm Weight: approx. 1.0 kg (including batteries) Scope of delivery 1 x Macherey-Nagel PF-12Plus Compact Photometer base unit (MPN: 919250) 1 x Sturdy carrying case with custom-fit foam insert 1 x Manual / Quick Start Guide (including test instructions) 4 x AA batteries (Mignon) 1 x USB cable for PC connectivity and external power supply 1 x NANOCOLOR® PC export software (free download) 1 x calibration cuvette Important note: Reagent test kits (such as NANOCOLOR® or VISOCOLOR® ECO round cuvettes) are not included in the standard Scope of delivery and must be ordered separately according to your specific application. Individual requirements & accessories To ensure you get the most out of the PF-12Plus, we stock a comprehensive range of reagent kits. For standardised, high-precision photometric analyses, we recommend the certified NANOCOLOR® round cuvette tests (e.g. for COD, total nitrogen, total phosphorus) as well as the VISOCOLOR® ECO test kits. For on-site sample preparation, we offer portable heating blocks (e.g. the NANOCOLOR® VARIO Mini for 12 V vehicle power supply) for the chemical digestion of samples. To ensure the continuous integrity of the metrological chain in your laboratory, we also stock certified test solutions (NANOCONTROL NANOCHECK) for verifying photometric accuracy. Make use of our technical procurement service to tailor your mobile measuring station to your specific requirements.
