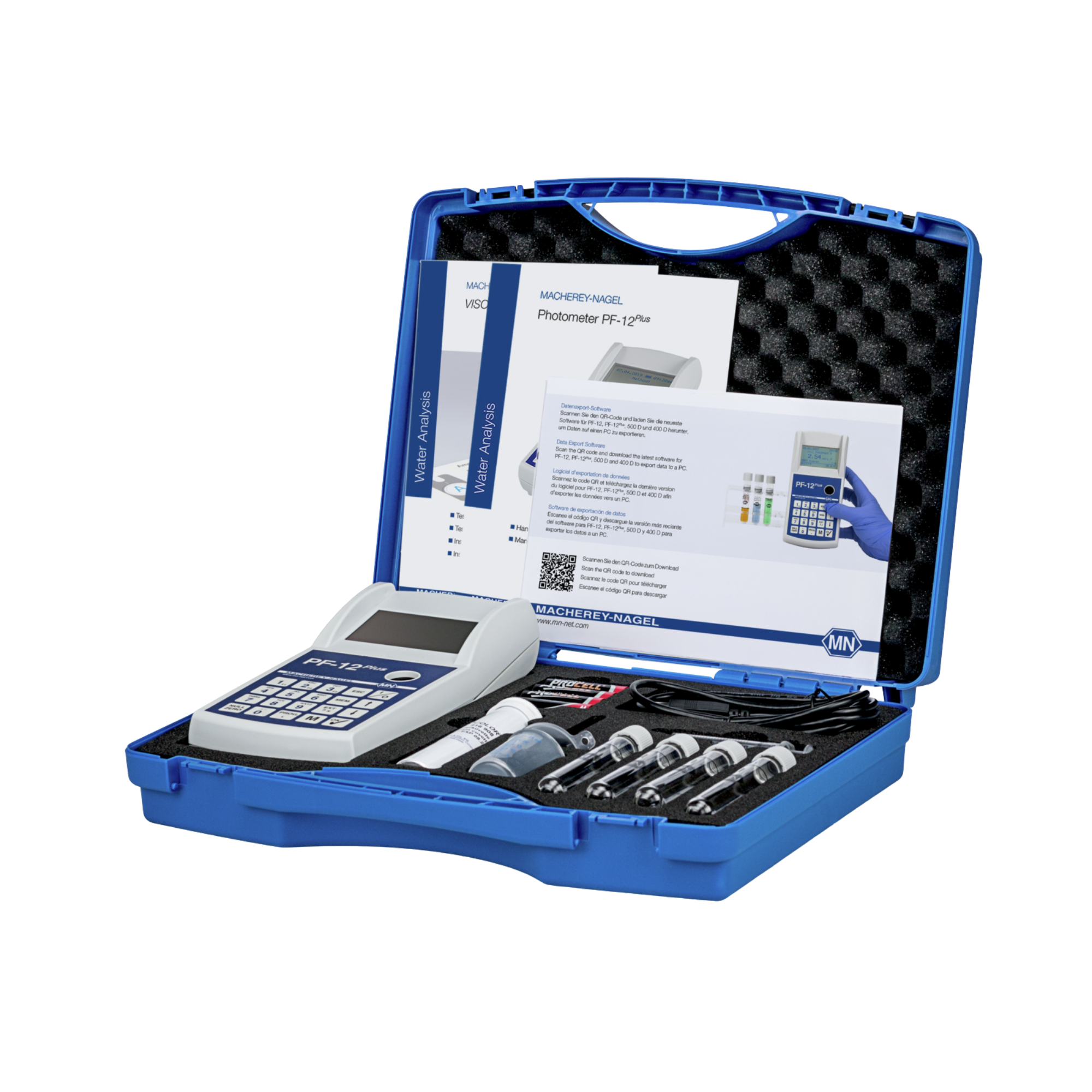

Macherey-Nagel PF-12Plus compact photometer for water analysis, including case and software, 919250

The Macherey-Nagel PF-12Plus compact photometer is a highly advanced, optoelectronic system solution for the precise, mobile and stationary analysis of water, wastewater and environmental samples. As a portable laboratory instrument, this photometer combines state-of-the-art filter photometry with maximum flexibility, whether used directly at the point of interest (POI) or in a traditional laboratory setting. When monitoring critical water parameters, industrial process water flows or municipal sewage treatment works, the accurate and rapid determination of substance concentrations is the primary criterion for documenting and controlling compliance with statutory limit values in a way that minimises damage to materials, ensures complete coverage and guarantees process reliability.

The optical architecture of the PF-12Plus is based on a long-life xenon flash lamp and a precisely coordinated sensor system with seven integrated interference filters. This spectral configuration enables reliable coverage of all relevant wavelengths for the analysis of Macherey-Nagel’s renowned VISOCOLOR ® ECO and NANOCOLOR ® round-cell tests. An outstanding mechatronic safety feature is the integrated nephelometric turbidity measurement (NTU-Check). This advanced monitoring function automatically detects interfering turbidity in the sample cuvette during the measurement process and reliably alerts the user to potential measurement errors – an invaluable advantage for analytical validity in harsh field conditions.

The photometer’s mechatronic system architecture is consistently designed for maximum user ergonomics and flexibility under changing environmental conditions. Over 100 pre-programmed methods for common parameters (such as ammonium, nitrate, nitrite, COD, phosphorus or heavy metals) enable error-free direct measurement without time-consuming calibration cycles. The splash-proof housing and intuitive menu navigation via the large, backlit graphic display ensure absolutely safe handling for laboratory and service staff. Thanks to flexible power management – optionally via batteries, rechargeable batteries, the integrated USB cable or an external power supply – uninterrupted operational readiness in the field is permanently guaranteed.

To support modern quality management in accordance with stringent GLP and GMP guidelines, the PF-12Plus features an internal data memory for up to 1,000 measurement results, including time, date and sample ID stamps. Via the integrated USB interface, the raw data can be transferred quickly and without damaging the samples to the free NANOCOLOR ® PC export software. This enables seamless digital archiving, statistical analysis and the convenient generation of certificates of analysis. The simple ability to independently verify instrument calibrations using certified test solutions meets the highest requirements of audited quality management systems.

Technical details

Optics & Photometry

• Type: Filter photometer with microprocessor control, self-test and auto-calibration
• Light source: Extremely long-life xenon flash lamp
• Detector: Silicon photodiode
• Wavelengths (filters): 345 / 436 / 540 / 585 / 620 / 690 nm plus 860 nm for turbidity measurement
• Wavelength accuracy: +/- 2 nm
• Photometric range: +/- 3 Abs
• Photometric accuracy: +/- 1 %
• Turbidity measurement: Integrated NTU check (nefelometric at 860 nm, measurement range 1–1000 NTU)

Interfaces, memory & software

• Data storage: 1000 measurements (GLP-compliant with date, time and sample number)
• Interface: USB 2.0 for bidirectional data transfer and power supply
• Pre-programmed tests: Over 100 pre-programmed methods (VISOCOLOR ® ECO and NANOCOLOR ®)
• User-defined methods: Up to 50 freely programmable methods

Design & Power supply

• Display: Backlit graphic display (64 x 128 pixels)
• Cuvette holder: For round cuvettes with an external diameter of 16 mm (no adapter change required)
• Power supply: 4 x AA batteries, rechargeable batteries, USB interface or external mains adaptor
• Housing features: Robust, ergonomic design, splash-proof membrane keypad
• Dimensions (W x D x H): approx. 215 x 160 x 70 mm
• Weight: approx. 1.0 kg (including batteries)

Contents

• 1 x Macherey-Nagel PF-12Plus Compact Photometer base unit (MPN: 919250)
• 1 x Sturdy carrying case with custom-fit foam insert
• 1 x Manual / Quick Start Guide (including test instructions)
• 4 x AA batteries (Mignon)
• 1 x USB cable for PC connectivity and external power supply
• 1 x NANOCOLOR ® PC export software (free download)
• 1 x calibration cuvette

Important note: Reagent test kits (such as NANOCOLOR ® or VISOCOLOR ® ECO round cuvettes) are not included in the standard scope of delivery and must be ordered separately according to your specific application.

Individual requirements & accessories

To ensure optimal use of the PF-12Plus, we stock a comprehensive range of reagent kits. For standardised, high-precision photometric analyses, we recommend the certified NANOCOLOR ® round cuvette tests (e.g. for COD, total nitrogen, total phosphorus) as well as the VISOCOLOR ® ECO test kits. For on-site sample preparation, we offer portable thermoblocks (e.g. NANOCOLOR ® NANOFOX) for the chemical digestion of samples. To ensure the continuous integrity of the metrological chain in your laboratory, we also stock certified test solutions (NANOCONTROL NANOCHECK) for verifying photometric accuracy. Please make use of our technical procurement service to tailor your mobile measuring station to your specific requirements.
