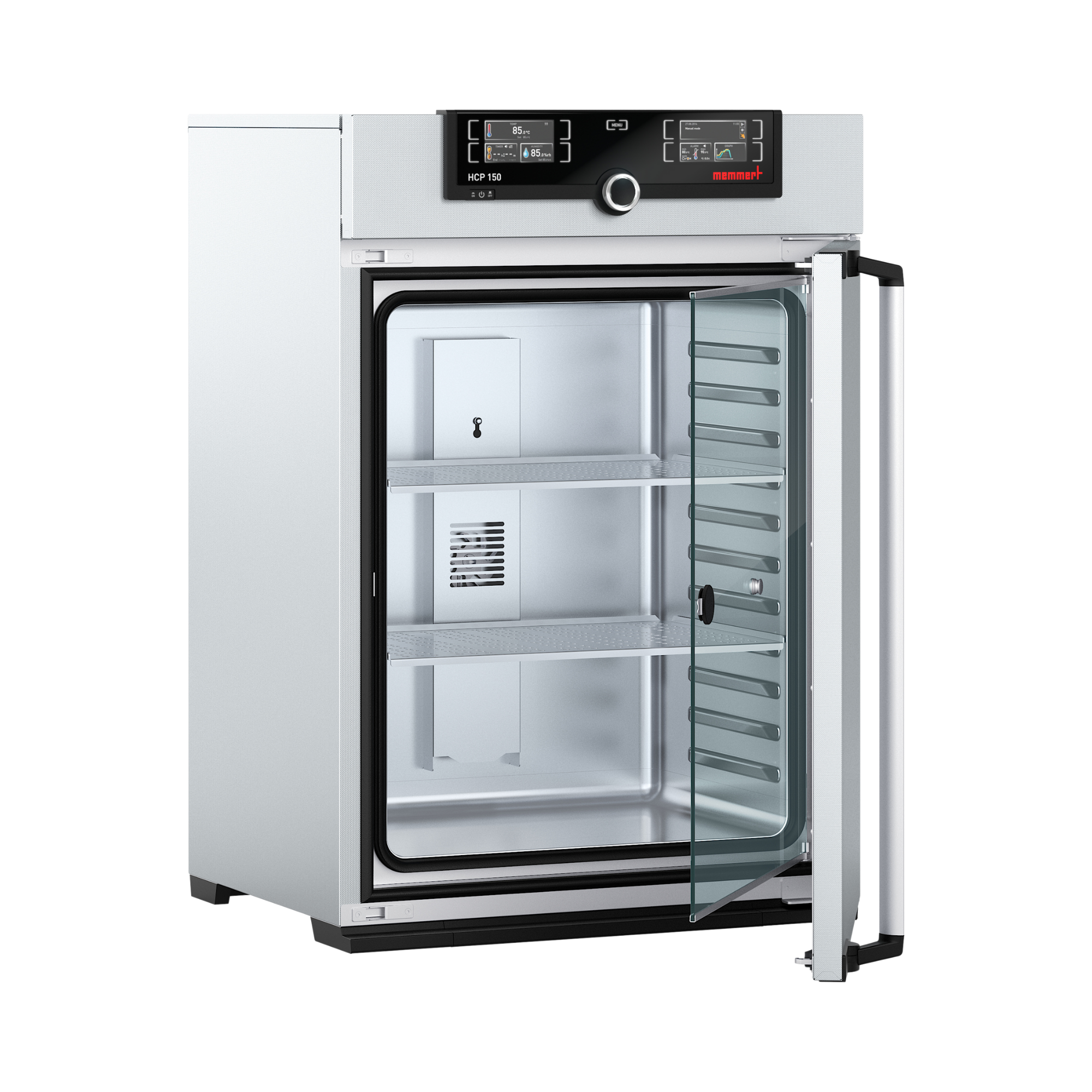

Memmert HCP150 humidity chamber, climate chamber, 156 litres, 20–95% rh

Climate control perfection: the Memmert HCP150 humidity chamber

The Memmert HCP150 humidity chamber (MPN HCP150) sets global standards when it comes to simulating environmental conditions. In laboratories specialising in building physics, biology, zoology or electronics manufacturing, precise control of temperature and humidity is crucial. This unit offers an internal volume of 156 litres and combines German engineering excellence with a user interface that is unrivalled in terms of convenience. Choosing an HCP150 means choosing not just a climate chamber, but a reliable partner for long-term testing, durability studies and standards-compliant material testing.

The end of condensation: intelligent temperature control

One of the biggest challenges with humidity chambers is the unwanted formation of condensation. Drops falling from the ceiling onto the test specimen can ruin weeks of test series. The Memmert HCP150 humidity chamber solves this problem with a sophisticated 6-sided heating system. Unlike simpler units, it does not merely heat the air. An electric heating jacket encloses the entire working chamber – including the door and the rear wall. This ensures that all walls are slightly warmer than the dew point temperature. The result: an actively dehumidified interior with no condensation forming on the walls or ceiling. Your samples remain dry where they need to stay dry, whilst the humidity is precisely controlled. This technology guarantees an absolutely homogeneous temperature distribution, which is essential for standard-compliant tests (e.g. 85/85 tests).

TwinDISPLAY: Maximum control and documentation

The control system of the Memmert HCP150 humidity chamber is carried out via the high-end TwinDISPLAY. This is the premium version of the Memmert control systems and features two high-resolution TFT touchscreens.

• Intuitive operation: Parameters such as temperature (+18 °C to +90 °C) and relative humidity (20 % to 95 % rh) can be selected at the touch of a finger and precisely adjusted using the digital rotary control (ControlCOCKPIT).
• HeatBALANCE: An exclusive feature of the TwinDISPLAY is the HeatBALANCE function. This allows you to shift the distribution of heating power between the upper and lower chambers. In this way, you can compensate for physically induced temperature differences or adapt the unit to specific loading patterns.
• Logging: All process data is recorded in full. You can retrieve the logs via the USB interface or Ethernet – a must for GLP-compliant working.

Hygienically clean: The sterilisation function

A truly unique feature of the Memmert HCP150 humidity chamber is its integrated sterilisation routine. Humid environments are often a breeding ground for bacteria and mould, which can cause cross-contamination. Whilst other climatic chambers require time-consuming chemical cleaning, the HCP150 offers a fixed programme: the interior is heated to +160 °C and held at that temperature for 4 hours. This reliably kills all microorganisms. Afterwards, a hygienically impeccable chamber is available for your next experiment.

Active humidification and dehumidification

The humidity system in the Memmert HCP150 humidity chamber operates actively. An external water tank (or a central water supply) feeds the steam generator. Humidity is controlled by a microprocessor from 20 % to 95 % rh. Even under difficult conditions, the system adjusts quickly – for example, after the door is opened. Thanks to the closed-loop system, water consumption is minimised, enabling long running times without the need for refilling.

Versatile applications

• Construction industry: Curing of concrete or cement samples at a defined humidity (e.g. in accordance with DIN EN 196-1).
• Electronics: Testing circuit boards for corrosion resistance or delamination.
• Biology/Zoology: Rearing insects or plants under controlled climatic conditions.
• Packaging industry: Testing the barrier properties of films.

Material quality built to last

Memmert is synonymous with the exclusive use of stainless steel. Both the outer casing (textured stainless steel) and the interior (stainless steel grade 1.4301) are corrosion-resistant, robust and easy to clean. The glass inner door allows visual inspection of the samples without disturbing the sensitive microclimate by opening the door.

With the Memmert HCP150 humidity chamber, you are investing in precision, safety and convenience. It is the technological answer to the increasing demands of quality assurance and research.

Technical data

• Model: HCP150 (2020 generation)
• Internal volume: 156 litres
• Temperature range: +18 °C (at least 7 °C above room temperature) to +90 °C
• Humidity range: 20% to 95% RH (active control)
• Sterilisation: Fixed programme at +160 °C (4 hours)
• Control system: TwinDISPLAY (2 x TFT touchscreen)
• Heating concept: 6-sided full-surface heating (condensation protection)
• Interior material: Stainless steel 1.4301, deep-drawn
• External material: Textured stainless steel
• Door: Outer door: solid stainless steel; inner door: glass
• Internal dimensions (W x H x D): 560 x 700 x 400 mm
• External dimensions (W x H x D): 719 x 1072 x 591 mm (depth excluding handle; handle +56 mm)
• Interfaces: Ethernet LAN, USB
• Voltage / Power: 230 V, 50/60 Hz / approx. 1800 W
• Weight: approx. 90 kg

Contents

• 1 x Memmert HCP150 humidity chamber
• 2 x stainless steel perforated plates
• 1 x water supply hose including filter
• 1 x water drain hose
• 1 x mains lead
• 1 x calibration certificate (factory calibration at 60°C / 75% rh)
• 1 x user manual

Customised requirements & accessories

Do you require a feed-through for sensors, additional grating or a central water supply? We can tailor the HCP150 perfectly to your laboratory infrastructure. Please contact our procurement service.
