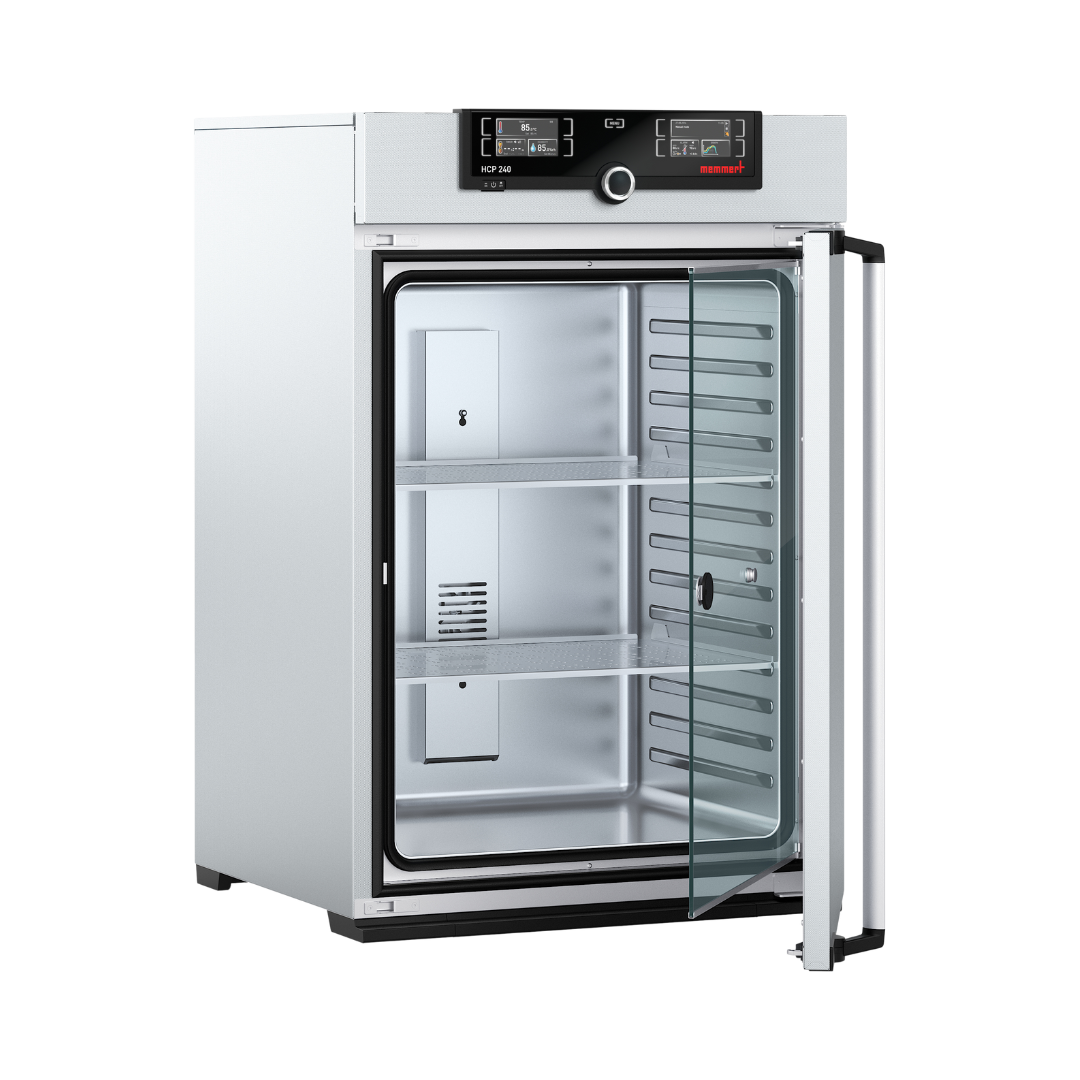

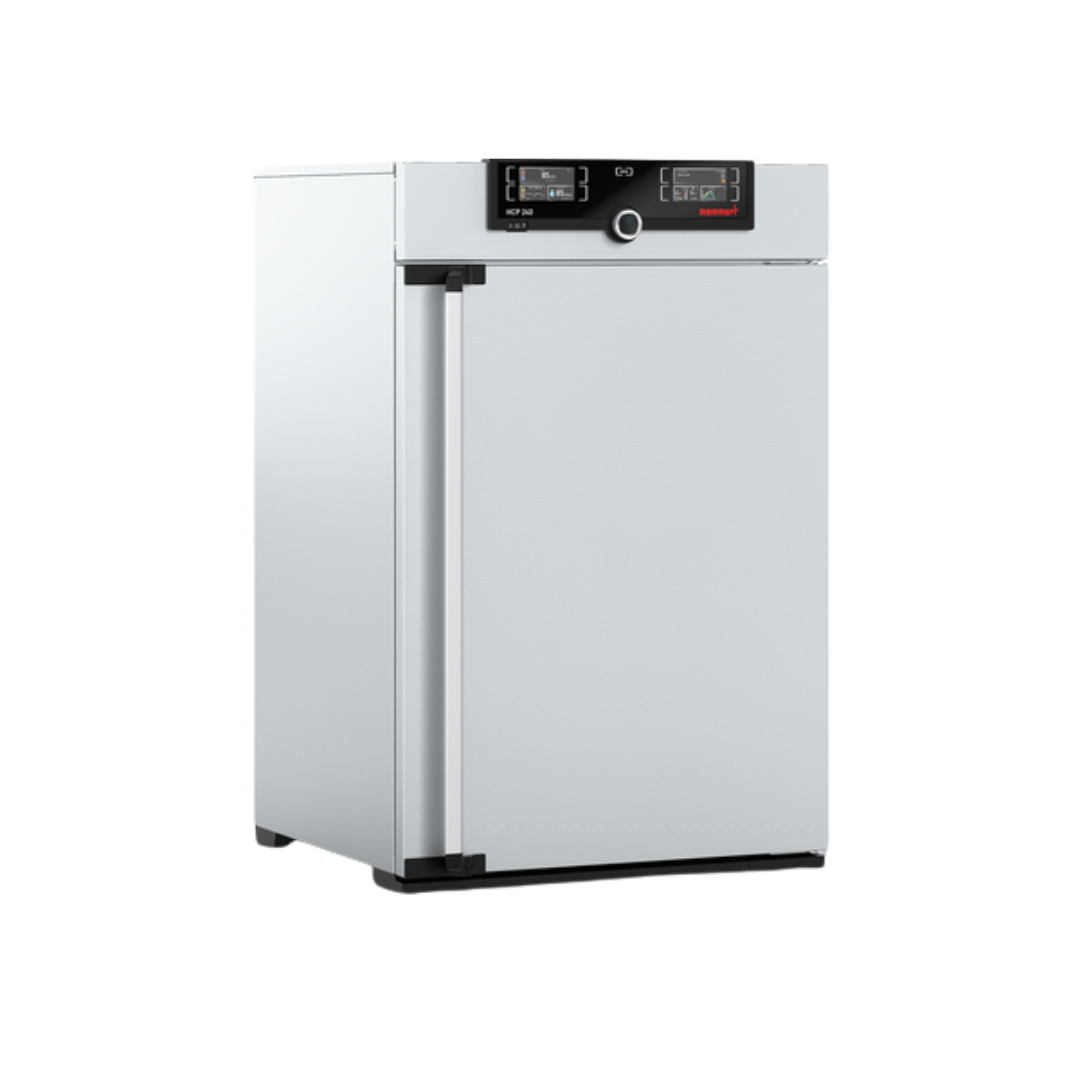

Memmert HCP240 humidity chamber, 241 L, TwinDISPLAY, 20–95% rh

Perfection in environmental simulation: the Memmert HCP240

If your research demands absolute reliability, the Memmert HCP240 humidity chamber is the first choice. With a generous capacity of 241 litres and active humidity control from 20 % to 95 % rh, it offers ideal conditions for environmental testing, accelerated life cycle testing and demanding 85/85 tests (in accordance with IEC 60068-2-67/78). You can create reproducible climatic scenarios that you can rely on.

Condensation-free interior thanks to 6-sided heating

Protect your sensitive samples from unwanted water droplets. The HCP series’ intelligent heating system heats all six sides of the interior – including the inner glass door. This effectively prevents condensation and ensures excellent temperature and humidity uniformity. Thanks to the heated viewing window, you have a clear view of your test samples at all times, without disturbing the climate by opening the door.

Intuitive control with TwinDISPLAY

The ControlCOCKPIT, featuring two high-resolution TFT touchscreen displays (TwinDISPLAY), makes operating complex ramp profiles a breeze. Monitor, log and control temperature and humidity with precision. Features such as SetpointWAIT ensure that the process time only starts once the target temperature has actually been reached – for validatable results in accordance with GLP/GMP standards.

Technical details

• Volume: 241 litres
• Temperature range (operating): +7 °C above room temperature to +90 °C
• Humidity control range: 20 % to 95 % rh (active control)
• Controller: TwinDISPLAY (adaptive PID microprocessor controller)
• Interior: deep-drawn stainless steel grade 1.4301 (ASTM 304)
• Internal dimensions (W x H x D): 600 x 810 x 500 mm
• External dimensions (W x H x D): 759 x 1180 x 691 mm
• Interfaces: Ethernet LAN, USB
• Voltage: 230 V, 50/60 Hz
• Power consumption: approx. 1840 W

Contents

• 1x Memmert HCP240 humidity chamber (MPN: HCP240)
• 2x stainless steel perforated sheets (electropolished)
• 1x water canister including connection hose
• 1x factory calibration certificate (for +60 °C / 75 % rh)
• 1x mains lead
• Operating instructions

Important note: Additional grating or special software modules (e.g. for FDA-compliant logging) are not included as standard and can be ordered separately.

Customised requirements & procurement service

Do you require a cable entry in a specific position, reinforced shelves for heavy-duty applications or a qualification (IQ/OQ)? We will configure your Memmert HCP240 exactly to your specifications. Make use of our procurement service.
