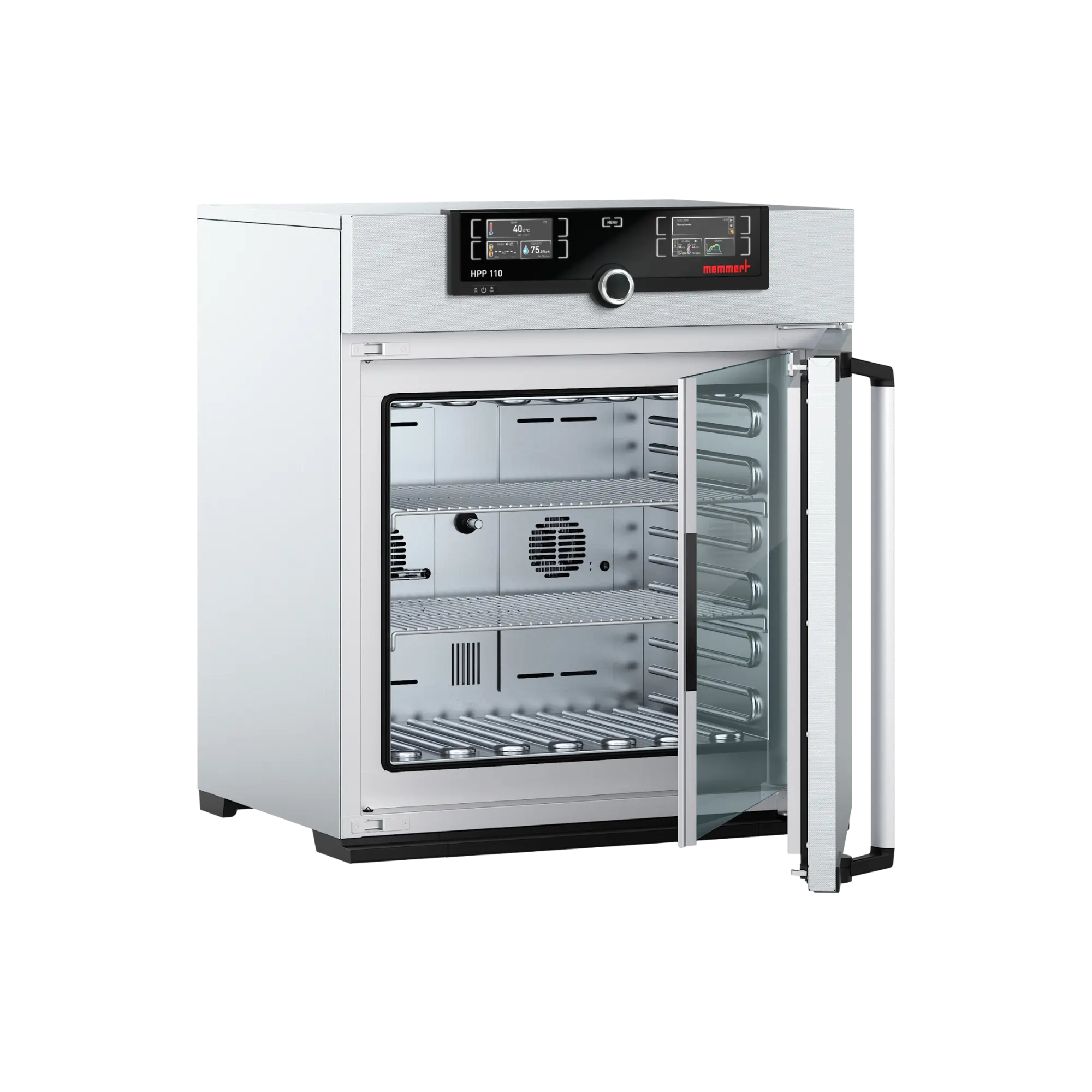

Memmert HPP110eco Constant-Climate Chamber, 108 l, 0°C to +70°C

Maximum precision in a compact space: the Memmert HPP110eco

The Memmert HPP110eco constant-climate chamber sets the technological benchmark for stability and climatic testing in the compact segment. With an internal volume of 108 litres, it offers the ideal solution for laboratories that demand the highest standards of accuracy but have limited floor space available. As part of Memmert’s pioneering Peltier series, the HPP110eco operates virtually vibration-free and extremely quietly, setting new standards in energy efficiency and sustainability. Whether for ICH stability testing (Q1A) in pharmaceutical research or for controlled storage in the cosmetics industry – this unit delivers reproducible results under highly stable conditions.

Peltier technology for maximum energy efficiency

At the heart of the HPP110eco is the innovative Peltier heating and cooling system. Unlike conventional compressor-cooled climate chambers, Peltier technology saves up to 90 per cent in energy costs during partial-load operation. As the system operates entirely without refrigerant-based cooling units, it is virtually maintenance-free and environmentally friendly. The precise fine-tuning of the Peltier elements enables extremely small temperature fluctuations, which is a critical quality feature, particularly for sensitive long-term experiments. The absence of a compressor also ensures absolutely silent operation, which significantly improves the working atmosphere in the laboratory.

Active humidity control and uniform climate distribution

To ensure precise climatic conditions, the HPP110eco features active digital humidification and dehumidification within a range of 10% to 90% RH. Water is supplied via an external tank using a self-priming pump, which guarantees precise vapour generation without condensation forming inside the chamber. The optimised ventilation system ensures that temperature and humidity are distributed absolutely uniformly throughout the entire sample volume. This guarantees constant conditions for every single sample, regardless of its position within the chamber – a fundamental requirement for validatable processes.

Intuitive TwinDISPLAY and comprehensive documentation

The HPP110eco is controlled via the tried-and-tested TwinDISPLAY system. Two high-resolution TFT colour graphic displays clearly show all relevant parameters such as temperature, humidity and fan speed. The integrated ControlCOCKPIT monitors all functions and enables legally compliant documentation of process data via USB or Ethernet. The HPP110eco thus effortlessly meets the requirements of GMP- and GLP-compliant environments. With the AtmoCONTROL software included in the scope of delivery, complex programmes can be easily created on a PC and transferred to the unit via a USB stick.

Technical details

• Internal volume: 108 litres
• Temperature range: 0 °C to +70 °C (without light)
• Temperature control accuracy: 0.1 °C
• Humidity range: 10 % to 90 % rh
• Humidity control accuracy: 0.5% rh
• Internal dimensions (W x H x D): 560 x 480 x 400 mm
• External dimensions (W x H x D): 745 x 864 x 555 mm (excluding door handle and connections)
• Interior material: 1.4301 (ASTM 304) stainless steel, electropolished
• Casing material: Textured stainless steel, rear panel galvanised
• Shelves: 2 stainless steel wire mesh shelves included as standard (up to 5 possible)
• Max. load per unit: 150 kg (max. 20 kg per standard shelf)
• Interfaces: Ethernet (LAN), USB
• Data logger: Internal memory for log data (capacity for at least 10 years)
• Safety: Electronic temperature monitoring (DHW), protection class 3.1
• Mains connection: 230 V, 50/60 Hz; power consumption approx. 650 W
• Weight: approx. 78 kg net

Scope of delivery

• HPP110eco constant-climate chamber
• 2 stainless steel grates
• Factory calibration certificate (points: +10°C, +25°C, +40°C and 60% rh at +25°C)
• Water connection kit including hose
• USB stick containing the AtmoCONTROL software and user manual

Accessories & Advice

Speed up your laboratory processes with tailor-made extensions: whether additional grating panels, reinforced shelves for heavy sample loads, integrated LED lighting modules or professional IQ/OQ qualification carried out directly at your premises – we make it possible. Are you planning a system integration or do you need advice on the optimal configuration for your stability studies? Our team of experts will provide you with personalised support in making your selection. Take advantage of our procurement service for a bespoke solution and a quote tailored precisely to your requirements.
