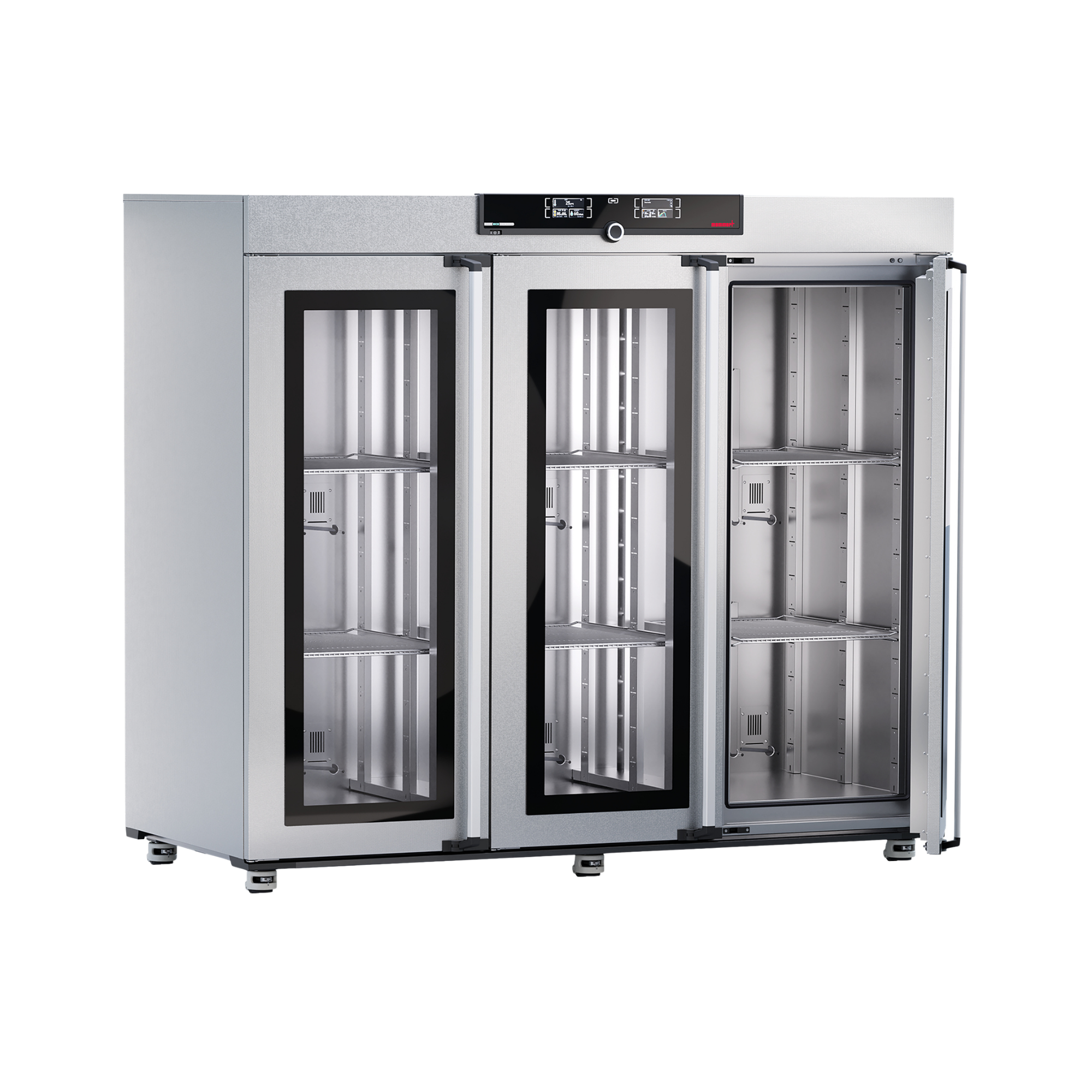

Memmert HPP2200eco Constant-Climate Chamber, 2140 l, 0°C to +70°C

Maximum capacity for stability testing: the Memmert HPP2200eco

The Memmert HPP2200eco constant-climate chamber is the undisputed powerhouse among Peltier climate chambers. With a massive internal volume of 2,140 litres, it offers unrivalled space for large-scale long-term tests and stability testing. Specially developed to meet the requirements of the pharmaceutical industry (ICH Q1A guidelines), the cosmetics sector and food technology, the HPP2200eco enables precisely controlled conditions to be maintained over a period of months. Thanks to innovative Peltier technology, this is achieved not only with high precision but also with a level of energy efficiency that far outshines conventional compressor-based units.

Advanced Peltier technology for sustainable efficiency

At a time of rising energy costs and stringent environmental regulations, the HPP2200eco is the answer to the quest for sustainability in the laboratory. As the system operates entirely without a compressor or refrigerant-based cooling systems, energy consumption is reduced by up to 90 per cent compared with conventional climate chambers. But Peltier technology offers even more advantages: it operates virtually vibration-free and extremely quietly. This not only protects sensitive samples from mechanical influences but also ensures a significantly more pleasant working environment in the laboratory. Furthermore, the low-maintenance technology reduces downtime and operating costs throughout the unit’s entire life cycle.

Active humidity control and unrivalled homogeneity

Despite its enormous volume of over 2,000 litres, the HPP2200eco guarantees an absolutely homogeneous distribution of temperature and humidity. Active humidification and dehumidification can be precisely controlled between 10% and 90% rh. Humidity is supplied via an external water feed using a self-priming pump, which ensures precise vapour generation without condensation. Whether conducting stability testing at 25 °C / 60 % rh or accelerated testing at 40 °C / 75 % rh – the system maintains the parameters stably within the tightest tolerance ranges required for validated processes.

Intelligent control and TwinDISPLAY convenience

Monitoring such large sample volumes requires maximum process reliability. This is where the Memmert TwinDISPLAY comes into its own. Two high-resolution TFT colour graphic displays allow you to keep an eye on all critical values at all times. The integrated ControlCOCKPIT software enables seamless digital documentation in accordance with GLP/GMP guidelines. Using the “AtmoCONTROL” software included in the scope of delivery, complex temperature and humidity profiles can be easily programmed on a PC and transferred to the unit via the Ethernet interface. Multiple over-temperature protection features and visual/audible alarm systems safeguard your valuable sample stocks around the clock.

Technical specifications

• Internal volume: 2140 litres
• Temperature range: 0 °C to +70 °C (without lighting)
• Humidity range: 10% to 90% RH
• Internal dimensions (W x H x D): 1972 x 1450 x 750 mm (double-door design)
• External dimensions (W x H x D): 2157 x 1913 x 905 mm
• Number of shelves: 6 stainless steel wire shelves included as standard
• Casing/interior: High-quality, stainless steel (1.4301)
• Interfaces: Ethernet, USB
• Mains connection: 230 V, 50/60 Hz; approx. 1200 W

Scope of delivery

• HPP2200eco constant-climate chamber
• 6 stainless steel grates
• Factory calibration certificate (temperature +10°C, +25°C, +40°C / humidity 60% rh at +25°C)
• Water connection kit including hose
• AtmoCONTROL software and comprehensive user manual

Accessories & Advice

Maximise the efficiency of your HPP2200eco with optional LED light modules for light simulation, reinforced stainless steel grates for heavy samples, or professional on-site IQ/OQ qualification carried out by our technicians. Do you need assistance with planning your stability laboratory? Use our procurement service for a bespoke solution and a personalised quote.
