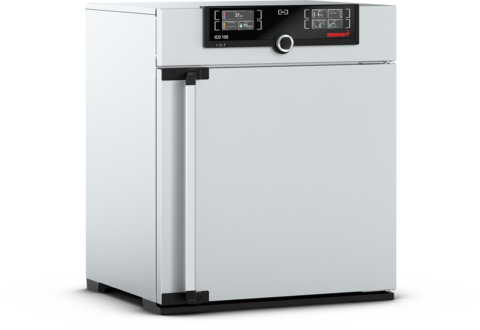

Memmert ICO105med CO₂ incubator, 107 L, TwinDISPLAY | Class IIa medical device

The Memmert ICO105med is a certified CO₂ incubator classified as a Class IIa medical device. With a generous chamber volume of 107 litres, it has been specially developed for safety-critical applications such as in vitro fertilisation (IVF) and the biosynthesis of cell and tissue cultures. It offers the highest precision and seamless protection for cell cultures.

Maximum hygiene & sterilisation

A standout feature is the pre-programmed sterilisation cycle: the entire interior, including all fittings and sensors, can be sterilised in a 60-minute cycle at +180 °C. The deep-drawn interior, made of electropolished stainless steel (grade 1.4301), features rounded corners, which makes cleaning considerably easier and prevents the build-up of bacteria.

Precise control with TwinDISPLAY

The ControlCOCKPIT, featuring two high-resolution TFT colour graphic displays (TwinDISPLAY), enables intuitive control and monitoring of all parameters. Thanks to the integrated battery backup, the control unit, logging system and CO₂ control remain fully operational even during a power cut, guaranteeing maximum data security.

Precise atmosphere & humidity control

CO₂ control is achieved via a drift-free dual-beam NDIR measurement system in the range from 0 to 20 per cent. As standard, a Peltier element limits the relative humidity to 93 per cent rh (+/- 2.5 per cent) to prevent condensation. Optionally (with module K7), active humidity control from 40 to 97 per cent rh is possible.

Technical details

• Model: Memmert ICO105med (Class IIa medical device)
• Volume: 107 litres
• Temperature setting range: +18 °C to +50 °C
• Operating temperature range: 5 °C above room temperature to +50 °C
• Temperature control accuracy: 0.1 °C
• CO₂ control range: 0 to 20 % (dual-beam NDIR sensor)
• CO₂ control accuracy: 0.1 %
• Humidity limit: Standard 93 % rh ± 2.5 % (Peltier element)
• Sterilisation: 60 mins at +180 °C (without removing the sensor)
• Control system: TwinDISPLAY (2x TFT touchscreens), battery-backed
• Sensors: 2x Pt100 sensors, DIN Class A (4-wire), for mutual monitoring
• Interior: Stainless steel 1.4301 (ASTM 304), deep-drawn
• Housing: Textured stainless steel, rear panel galvanised
• Internal dimensions (W x H x D): 560 x 480 x 400 mm (depth minus 35 mm for fan)
• External dimensions (W x H x D): 719 x 850 x 591 mm (depth +56 mm for door handle)
• Load capacity: Max. 90 kg total / max. 15 kg per shelf
• Drawers: 2 perforated panels included, max. 6 possible
• Interfaces: USB, Ethernet LAN
• Voltage / Power: 230 V, 50/60 Hz / approx. 1300 W
• Net weight: approx. 75 kg

Contents of delivery

• Memmert ICO105med CO₂ incubator
• 2 x stainless steel perforated trays
• 1 x stainless steel water tray
• 1 x factory calibration certificate (at +37 °C, 5 % CO₂)
• CO₂ connection kit (hose, coupling, clamp)
• Operating instructions

Customised requirements & procurement service

Do you require the optional K7 module for active humidity control (40–97% rh), an O2 module (T6) for hypoxic conditions, or an IVF module? We will configure your Memmert ICO105med precisely to your laboratory requirements. Take advantage of our bespoke procurement service for accessories and specialised equipment.
