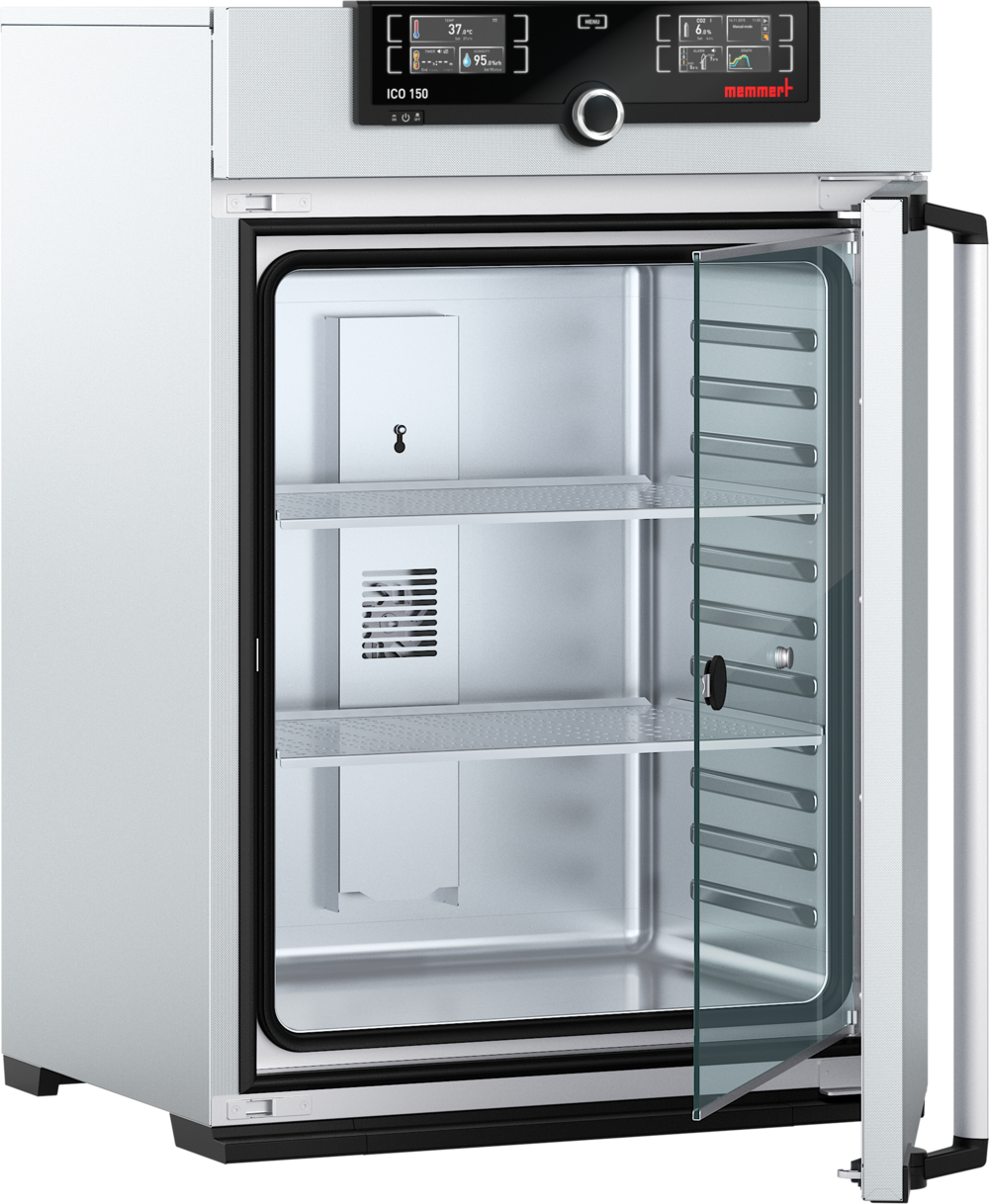

Memmert ICO150 CO₂ incubator, 156 L, with TwinDISPLAY

The Memmert ICO150 is a high-end CO₂ incubator specially designed to protect cell cultures, bacterial cultures and tissue cultures in research laboratories. With a generous chamber volume of 156 litres, it offers plenty of space and, thanks to state-of-the-art control technology, guarantees an absolutely constant atmosphere.

Uncompromising hygiene & sterilisation

To reliably prevent contamination, the ICO150 features a validatable sterilisation programme: the entire interior, including all fittings and sensors, can be sterilised in a 60-minute cycle at +180 °C. The deep-drawn interior, made from electropolished stainless steel (grade 1.4301), is seamlessly welded and features rounded corners, which makes cleaning extremely easy.

Precise control with TwinDISPLAY

The intuitive ControlCOCKPIT, featuring two high-resolution TFT colour graphic displays (TwinDISPLAY), allows for the precise setting and monitoring of temperature, CO₂ concentration and humidity. A key safety feature is the integrated battery backup: in the event of a power cut, the control unit, data logging and CO₂ control remain fully operational.

Precise atmosphere & humidity control

CO₂ control is achieved via a drift-free dual-beam NDIR measurement system in the range from 0 to 20 per cent. A standard Peltier element limits the relative humidity to 93 per cent RH (+/- 2.5 per cent) to effectively prevent condensation. Optionally (with module K7), active humidification control from 40 to 97% RH is available.

Technical details

• Model: Memmert ICO150 (2012 generation)
• Volume: 156 litres
• Temperature setting range: +18 °C to +50 °C
• Operating temperature range: 5 °C above room temperature to +50 °C
• Temperature control accuracy: 0.1 °C
• CO₂ control range: 0 to 20 % (dual-beam NDIR sensor)
• CO₂ control accuracy: 0.1 %
• Humidity limit: Standard 93 % rh ± 2.5 % (Peltier element)
• Sterilisation: 60 mins at +180 °C (without removing the sensor)
• Control system: TwinDISPLAY (2x TFT touchscreens), battery-backed
• Sensors: 2x Pt100 sensors, DIN Class A (4-wire)
• Interior: Stainless steel 1.4301 (ASTM 304), deep-drawn
• Housing: Textured stainless steel, rear panel galvanised
• Internal dimensions (W x H x D): 560 x 700 x 400 mm
• External dimensions (W x H x D): 719 x 1070 x 591 mm (depth +56 mm for door handle)
• Load capacity: Max. 120 kg total / max. 15 kg per shelf
• Shelves: 2 perforated stainless steel shelves included, max. 10 possible
• Interfaces: USB, Ethernet LAN
• Voltage / Power: 230 V, 50/60 Hz / approx. 1500 W
• Net weight: approx. 90 kg

Contents of delivery

• Memmert ICO150 CO₂ incubator
• 2 x stainless steel perforated trays
• 1 x stainless steel water tray
• 1 x factory calibration certificate (at +37 °C, 5 % CO₂)
• CO₂ connection kit (hose, coupling, clamp)
• Operating instructions

Customised requirements & procurement service

Do you require the optional K7 module for active humidity control, an O₂ module (T6) for hypoxic conditions, or additional stainless steel perforated plates? We will configure your Memmert ICO150 precisely to your laboratory requirements. Take advantage of our bespoke procurement service for accessories and optional extras.
