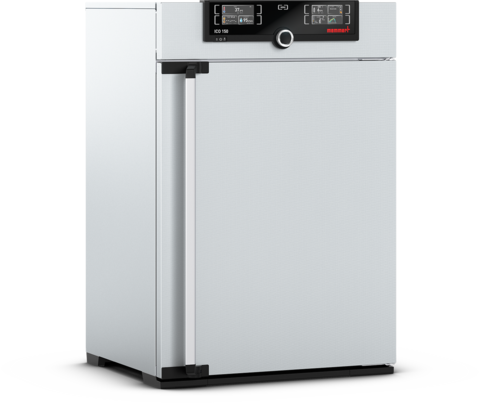

Memmert ICO150med CO₂ incubator, 156 L, TwinDISPLAY | Class IIa medical device

The Memmert ICO150med is a certified CO₂ incubator (Class IIa medical device) that has been specially developed for in vitro fertilisation (IVF) and the cultivation of cells, bacteria and tissues. With a generous chamber volume of 156 litres, it offers maximum capacity and precision for demanding laboratory applications.

Maximum safety & hygiene

The unit features a validatable sterilisation programme: the entire interior, including all fittings and sensors, can be sterilised in a 60-minute programme at +180 °C. The deep-drawn interior made of electropolished stainless steel (grade 1.4301) with rounded corners allows for easy cleaning and prevents the build-up of bacteria.

Precise control with TwinDISPLAY

The intuitive ControlCOCKPIT, featuring two high-resolution TFT colour graphic displays, allows for the precise setting and monitoring of all parameters. Thanks to the integrated battery backup, the control unit, logging system and CO₂ control remain fully functional even in the event of a power cut, guaranteeing maximum data security.

Precise atmosphere & humidity control

CO₂ control is achieved via a drift-free dual-beam NDIR measurement system in the range from 0 to 20 per cent. As standard, a Peltier element limits the relative humidity to 93 per cent rh (+/- 2.5 per cent) to effectively prevent condensation. Optionally (with module K7), active humidification control from 40 to 97 per cent rh is available.

Technical details

• Model: Memmert ICO150med (Class IIa medical device)
• Volume: 156 litres
• Temperature setting range: +18 °C to +50 °C
• Operating temperature range: 5 °C above room temperature to +50 °C
• Temperature control accuracy: 0.1 °C
• CO₂ control range: 0 to 20 % (dual-beam NDIR sensor)
• CO₂ control accuracy: 0.1 %
• Humidity limit: Standard 93 % rh ± 2.5 % (Peltier element)
• Sterilisation: 60 mins at +180 °C (without removing the sensor)
• Control system: TwinDISPLAY (2x TFT touchscreens), battery-backed
• Sensors: 2x Pt100 sensors, DIN Class A (4-wire), for mutual monitoring
• Interior: Stainless steel 1.4301 (ASTM 304), deep-drawn, corrosion-resistant
• Housing: Textured stainless steel, rear panel galvanised
• Internal dimensions (W x H x D): 560 x 700 x 400 mm
• External dimensions (W x H x D): 719 x 1070 x 591 mm (depth +56 mm for door handle)
• Load capacity: Max. 120 kg total / max. 15 kg per shelf
• Drawers: 2 perforated panels included, max. 10 possible
• Interfaces: USB, Ethernet LAN
• Voltage / Power: 230 V, 50/60 Hz / approx. 1500 W
• Net weight: approx. 90 kg

Contents of delivery

• Memmert ICO150med CO₂ incubator
• 2 x stainless steel perforated trays
• 1 x stainless steel water tray
• 1 x factory calibration certificate (at +37 °C, 5 % CO₂)
• CO₂ connection set (hose, coupling, clamp)
• Diaphragm filter (for gas inlet)
• User manual

Customised requirements & procurement service

Do you require the optional K7 module for active humidity control, an O₂ module (T6) for hypoxic conditions, or additional stainless steel perforated plates? We will configure your Memmert ICO150med precisely to your laboratory requirements. Take advantage of our bespoke procurement service for accessories and optional extras such as the IVF module.
