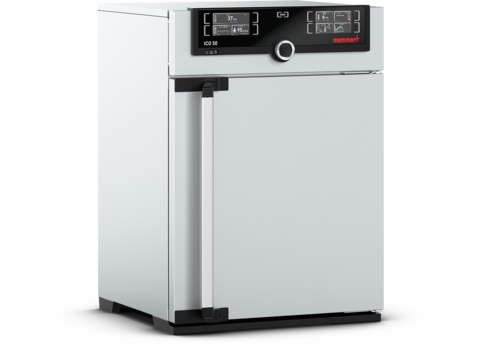

Memmert ICO50med CO₂ incubator, 56 L, TwinDISPLAY | Class IIa medical device

The Memmert ICO50med is a high-precision CO₂ incubator specially developed to meet the stringent requirements of in vitro fertilisation (IVF), biosynthesis and cell biology. As a certified Class IIa medical device, it offers maximum safety for cell, bacterial and tissue cultures. With a chamber volume of 56 litres and state-of-the-art control technology, it guarantees a completely homogeneous atmosphere and rapid recovery times after the door is opened.

Maximum safety & hygiene

The unit features a unique sterilisation programme: the entire interior, including all fittings and sensors, can be sterilised in a 60-minute programme at +180 °C. The deep-drawn interior made of electropolished stainless steel (grade 1.4301) with rounded corners allows for easy and thorough cleaning.

Precise control with TwinDISPLAY

The intuitive ControlCOCKPIT, featuring two high-resolution TFT colour graphic displays, allows for the precise setting and monitoring of temperature, CO₂ concentration and humidity. Thanks to battery backup, control and logging functions remain fully operational even in the event of a power cut. CO₂ control is provided by a drift-free dual-beam NDIR measurement system operating in the range from 0 to 20 per cent.

Active Humidity Protection

As standard, thermal decoupling and humidity limitation (Peltier element) prevent conditions that lead to condensation, thereby protecting cultures from contamination. Active humidity control (optional with module K7) allows setpoints from 40 to 97% rh for optimal cell growth conditions.

Technical details

• Model: Memmert ICO50med (Class IIa medical device)
• Volume: 56 litres
• Temperature setting range: +18 °C to +50 °C
• Operating temperature range: 5 °C above room temperature to +50 °C
• Temperature control accuracy: 0.1 °C
• CO₂ control range: 0 to 20 % (dual-beam NDIR sensor)
• Humidity limit: Standard 93 % rh ± 2.5 % (Peltier element)
• Sterilisation: 60 mins at +180 °C (without removing the sensor)
• Control: TwinDISPLAY (2x TFT touchscreens), battery-backed
• Sensors: 2x Pt100 sensors, DIN Class A (4-wire)
• Interior: Stainless steel 1.4301 (ASTM 304), deep-drawn
• Housing: Textured stainless steel, rear panel galvanised
• Internal dimensions (W x H x D): 400 x 425 x 330 mm
• External dimensions (W x H x D): 559 x 795 x 521 mm (depth +56 mm for door handle)
• Load capacity: Max. 75 kg total / max. 15 kg per shelf
• Shelves: 1 perforated sheet included, max. 5 possible
• Interfaces: USB, Ethernet LAN
• Voltage / Power: 230 V, 50/60 Hz / approx. 1100 W
• Net weight: approx. 55 kg

Contents of delivery

• Memmert ICO50med CO₂ incubator
• 1 x stainless steel perforated tray
• 1 x stainless steel water tray
• 1 x factory calibration certificate (at +37 °C, 5 % CO₂)
• CO₂ connection kit (hose, coupling, clamp)
• Operating instructions

Customised requirements & procurement service

Do you require the optional K7 module for active humidity control, an O₂ module (T6) or additional stainless steel perforated plates? We will configure your Memmert ICO50med precisely to your requirements. Make use of our bespoke procurement service for accessories and optional extras such as the IVF module.
