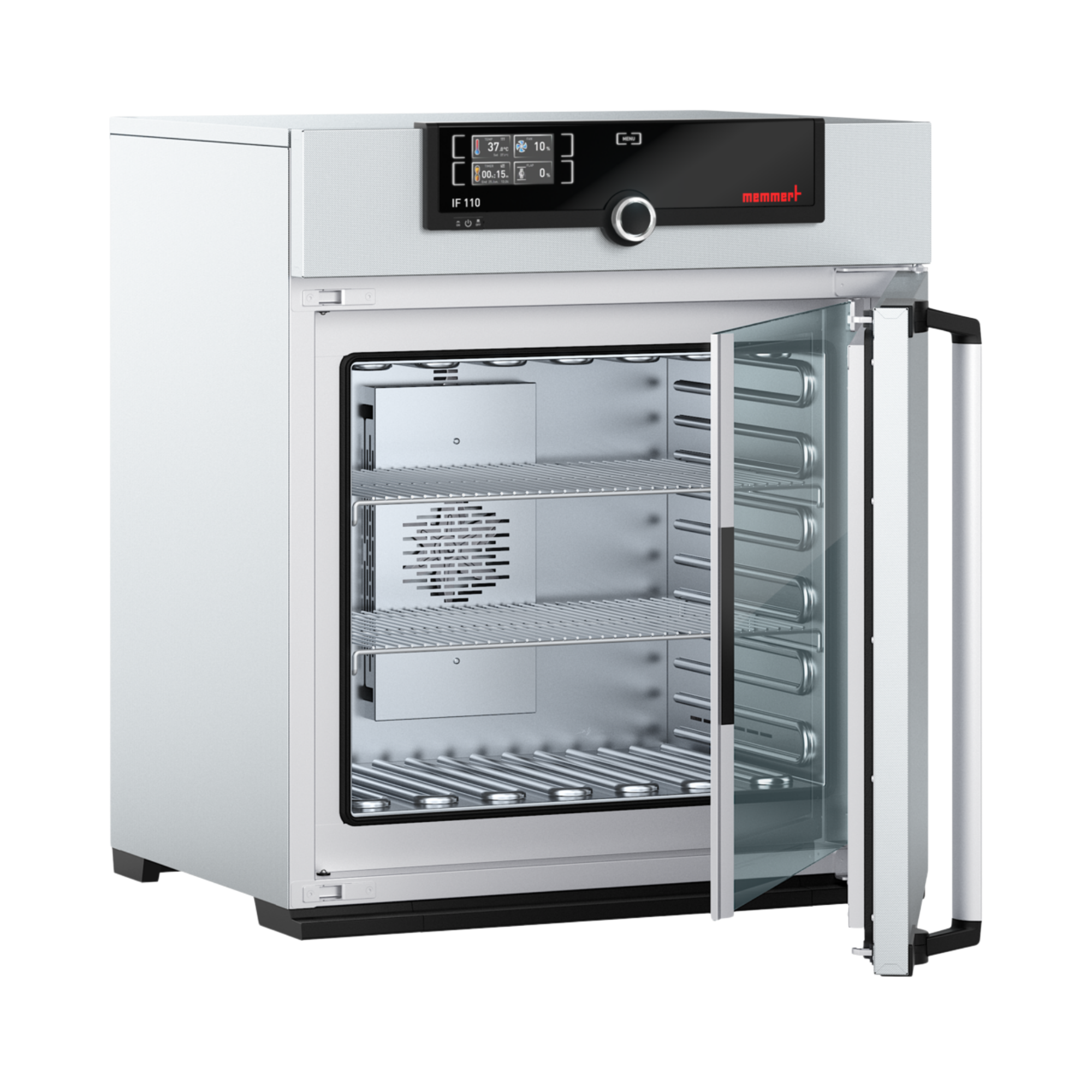

Memmert IF110 Incubator, 108 L, with forced air circulation, +20 to +80 °C

The Memmert IF110 is a high-precision incubator with forced air circulation, specially developed for demanding applications in research, medicine, pharmaceuticals and food technology. With a chamber volume of 108 litres, this model offers ample space for your samples and, thanks to its finely tuned heating technology, guarantees particularly gentle heating.

Precise control with SingleDISPLAY

At the heart of the IF110 is the intuitive ControlCOCKPIT with SingleDISPLAY. This adaptive PID microprocessor controller with a high-resolution TFT colour display allows you to precisely set and monitor all parameters, such as temperature, fan speed and air damper position. Operation is convenient via touchscreen, and thanks to the SetpointWAIT function, the process time only begins once the setpoint temperature has actually been reached – ensuring validatable results.

Optimal temperature distribution through forced air circulation

Unlike units with natural convection, the IF110 ensures rapid and uniform temperature distribution throughout the entire interior thanks to its forced air circulation (convection). The speed of the quiet air turbine can be adjusted in 10% increments to perfectly adapt the airflow to sensitive loads. In addition, the addition of preheated fresh air prevents unwanted temperature fluctuations.

Hygienic stainless steel design & safety

Both the textured housing and the interior are made of high-quality, rust-free stainless steel (grade 1.4301), which is extremely robust, scratch-resistant and easy to clean. The fully insulated stainless steel door with a two-point locking mechanism and the inner glass door allow samples to be monitored safely without heat loss. Maximum safety is ensured by dual over-temperature protection (electronic and mechanical in accordance with DIN 12880).

Technical details

• Model: Memmert IF110
• Capacity: 108 litres
• Convection type: Forced air circulation (via an air turbine)
• Temperature setting range: +20 °C to +80 °C
• Operating temperature range: At least 10 °C above room temperature to +80 °C
• Setting accuracy: 0.1 °C
• Control system: ControlCOCKPIT with SingleDISPLAY (TFT colour graphics)
• Temperature sensor: 1 Pt100 sensor, DIN Class A (4-wire measurement)
• Timer: Digital countdown timer (1 min to 99 days)
• Interior: Stainless steel, deep-drawn ribbing, integrated large-area heating
• Outer casing: Textured stainless steel, galvanised rear panel
• Internal dimensions (W x H x D): 560 x 480 x 400 mm
• External dimensions (W x H x D): 745 x 864 x 584 mm (depth excluding door handle, +56 mm for handle)
• Load capacity: Max. 175 kg total / max. 20 kg per rack
• Shelves: 2 wire mesh shelves included, max. 5 possible
• Voltage / Power: 230 V, 50/60 Hz / approx. 1400 W
• Net weight: approx. 74 kg

Contents of delivery

• Memmert IF110 incubator (basic unit)
• 2 x stainless steel wire shelves (electropolished)
• 1 x factory calibration certificate (at +37 °C)
• 1 x mains lead
• Operating instructions

Customised requirements & procurement service

Do you require additional stainless steel grids, a feed-through for external sensors or a specific software interface (AtmoCONTROL)? We will configure your Memmert incubator precisely to your laboratory requirements. Make use of our bespoke procurement service for accessories and special requests.
