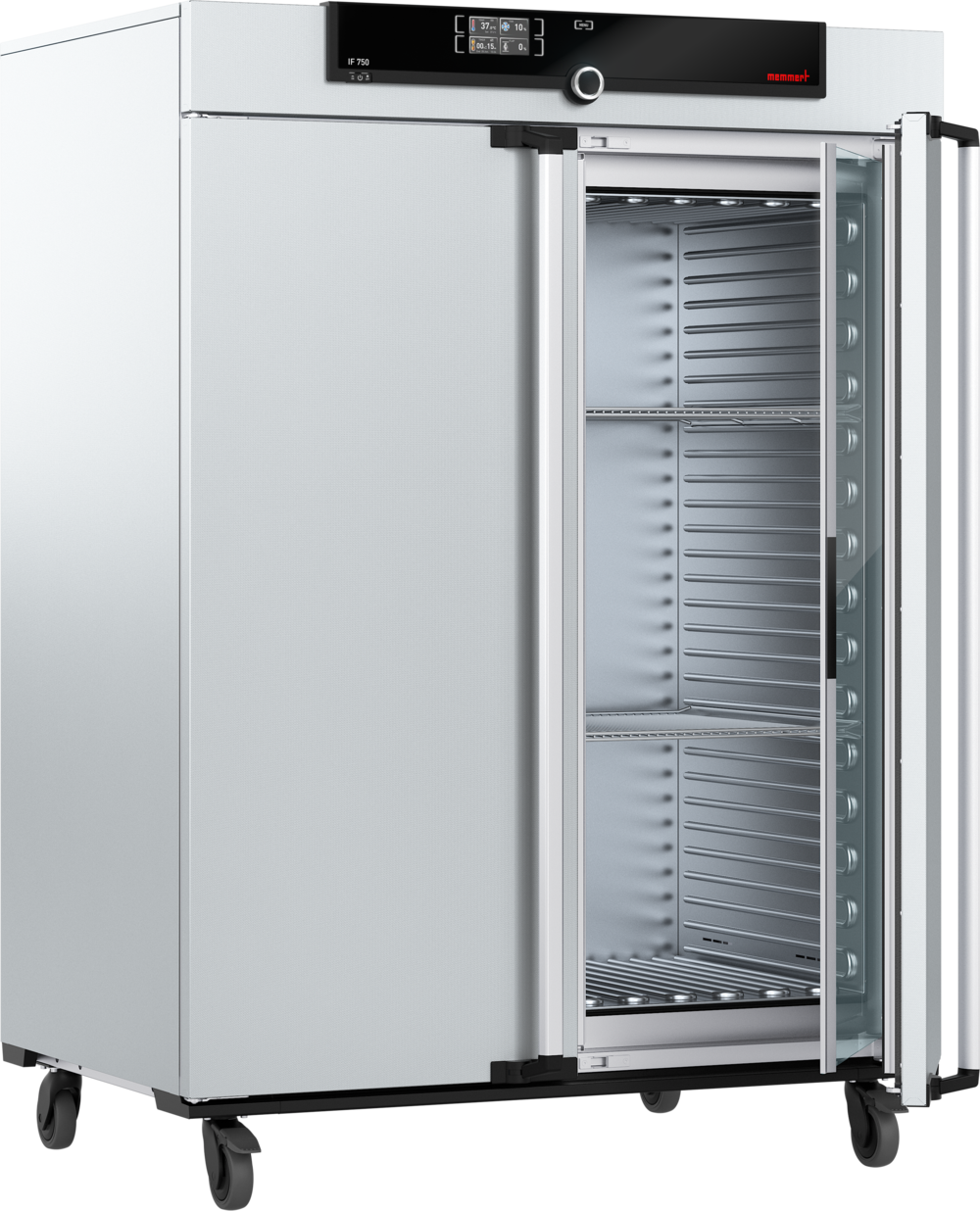

Memmert IF750 Incubator, 749 L, with forced air circulation, +20 to +80 °C

The Memmert IF750 is the largest precision incubator in the IF series with forced air circulation (convection). With an enormous chamber volume of 749 litres, this model is the perfect solution for laboratories with a very high sample throughput or large-volume samples. Thanks to the standard lockable castors, this large unit remains mobile and can be used flexibly throughout the laboratory.

Intuitive control: ControlCOCKPIT with SingleDISPLAY

Operation is via the ControlCOCKPIT with SingleDISPLAY. The adaptive PID microprocessor controller with a high-resolution TFT colour graphic display allows precise adjustment of temperature, fan speed and air damper position via touch. The digital timer (countdown timer) is adjustable from 1 minute to 99 days.

Uniform temperature distribution & double-leaf doors

Thanks to the two quiet air turbines (recirculation), the IF750 ensures rapid and even heat distribution throughout the entire interior. The fan speed and fresh air supply can be finely adjusted in 10% increments. The SetpointWAIT function guarantees validatable processes: the process time only starts once the setpoint temperature has actually been reached. The unit features double-leaf doors (stainless steel on the outside, glass on the inside), which allow convenient access to the spacious interior.

Hygienic stainless steel design & safety

Both the textured housing and the interior are made of high-quality, stainless steel (grade 1.4301), which is extremely robust, scratch-resistant and easy to clean. Safety is ensured by an adjustable electronic temperature monitor and a mechanical temperature limiter TB (protection class 1 in accordance with DIN 12880).

Technical details

• Model: Memmert IF750 (2012 generation)
• Capacity: 749 litres
• Convection type: Forced air circulation (convection) via 2 air turbines
• Temperature setting range: +20 °C to +80 °C
• Operating temperature range: At least 10 °C above room temperature to +80 °C
• Setting accuracy: 0.1 °C
• Control system: ControlCOCKPIT with SingleDISPLAY (TFT colour graphics)
• Temperature sensor: 1 Pt100 sensor, DIN Class A (4-wire measurement)
• Timer: Digital countdown timer (1 min to 99 days)
• Inner chamber: Stainless steel (grade 1.4301), deep-drawn ribbing
• Outer casing: Textured stainless steel sheet, galvanised rear panel
• Internal dimensions (W x H x D): 1040 x 1200 x 600 mm
• External dimensions (W x H x D): 1224 x 1720 x 784 mm (depth excluding door handle, +56 mm for handle)
• Installation: Mobile and lockable on castors
• Doors: Double-leaf (stainless steel exterior, glass interior)
• Load capacity: Max. 300 kg total / max. 30 kg per shelf
• Shelves: 2 stainless steel wire mesh shelves included, max. 14 possible
• Interface: Ethernet LAN
• Voltage / Power: 230 V, 50/60 Hz / approx. 2000 W
• Net weight: approx. 217 kg

Scope of delivery

• Memmert IF750 incubator (basic unit on castors)
• 2 x stainless steel wire shelves (electropolished)
• 1 x factory calibration certificate (at +37 °C)
• 1 x mains cable
• Operating instructions

Customised requirements & procurement service

Do you require additional stainless steel grids (up to 14 possible), reinforced grids for heavy loads or a feed-through for external sensors? We will configure your Memmert incubator precisely to your laboratory requirements. Make use of our bespoke procurement service for accessories and special requests.
