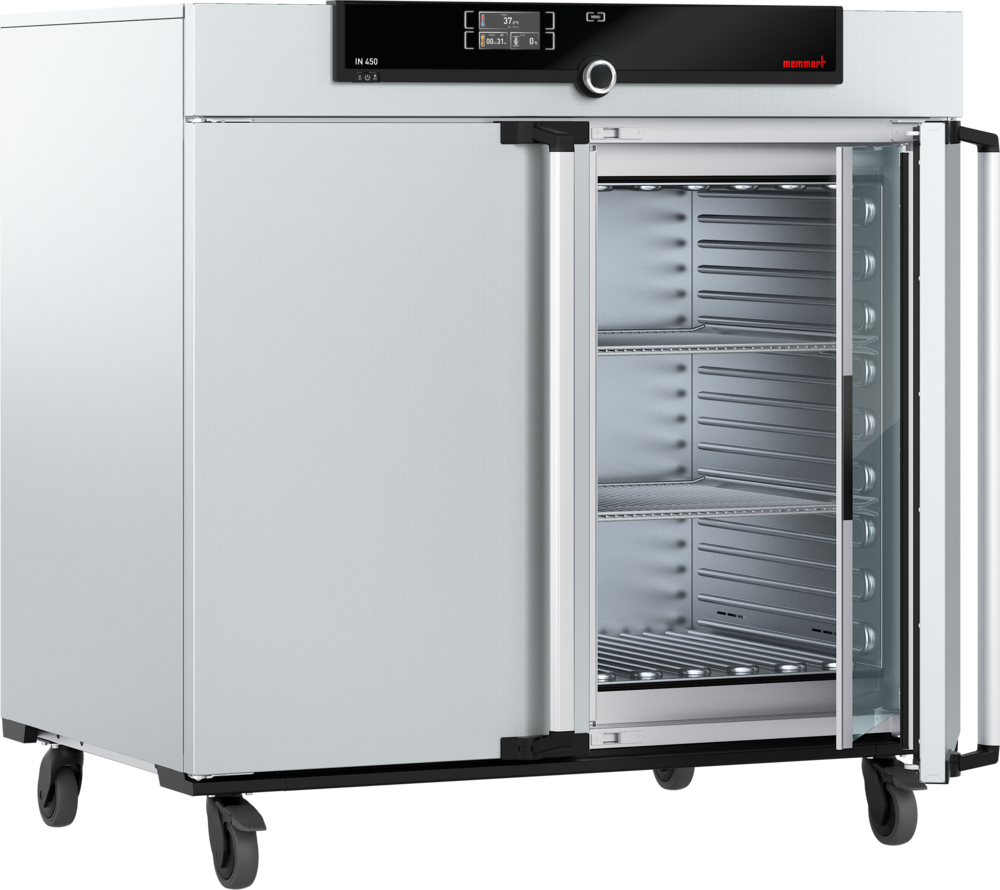

Memmert IN450 incubator, 449 l, +20 to +80 °C, SingleDISPLAY

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Memmert IN450 incubator, 449 l, +20 to +80 °C, SingleDISPLAY"

The IN450 has a capacity of 449 litres and stands on castors that can be moved and locked in place; it has external dimensions of 1,224 x 1,247 x 784 mm and a net weight of around 161 kilograms. It can accommodate a maximum of eight shelves, which is fewer than the smaller IN260, which holds nine shelves. Temperature control is via a ControlCOCKPIT SingleDISPLAY, with a range from +20 to +80 °C.

Mobile housing and air flow

An electronically adjustable exhaust air flap introduces preheated fresh air, whilst the exhaust air outlet with a throttle valve is electronically controllable. The interior features deep-drawn ribbing with 4-sided all-round heating, whilst the housing has a fully galvanised sheet steel rear panel. Those requiring forced air circulation rather than natural convection will find the same size model in the IF series.

ControlCOCKPIT SingleDISPLAY

The ControlCOCKPIT SingleDISPLAY, with a TFT colour graphic display, evaluates a DIN Class A Pt100 sensor using a 4-wire measurement; the setting accuracy is 0.1 °C. SetpointWAIT only starts the process time once the setpoint temperature has been reached; the programme sequence is saved in the event of a power cut. The data logger can be read out and managed via Ethernet.

Temperature limiter and door locking

A mechanical temperature limiter, protection class 1 according to DIN 12880, switches off the heating when the temperature rises to approximately 20 °C above the maximum cabinet temperature. Behind the fully insulated stainless steel door with a 2-point locking mechanism is an inner glass door; a self-diagnostic system assists with troubleshooting. The permissible ambient temperature is +5 °C to +40 °C with a maximum relative humidity of 80 %; the unit must only be transported in an upright position.

Guide to choosing the right size

If the 256-litre IN260 proves too small, the mobile IN450, with a capacity of 449 litres and castors, offers more space, with eight shelves instead of nine. For even larger batches, the table below lists the IN750, which has a capacity of 749 litres and 14 shelves.

Typical applications

With a capacity of 449 litres and a mobile design, the IN450 is suitable for incubating and temperature-controlling larger batches in the range from +20 to +80 °C, including in research applications.

  • Incubation and temperature control of large-volume sample batches across eight shelves
  • Use in medicine, pharmacy, food analysis and food chemistry
  • Use in research

Technical details

Setting temperature range+20 to +80 °C
Working temperature rangeAt least 5 °C above room temperature up to +80 °C
Temperature setting accuracy0.1 °C
Temperature sensor1 Pt100 DIN Class A in 4-wire configuration
Internal volume449 l
Internal dimensions (W x H x D)1,040 x 720 x 600 mm
External dimensions of housing (W x H x D)1,224 x 1,247 x 784 mm (depth plus 56 mm for door handle)
Net weightapprox. 161 kg
Connected load 230 V50/60 Hz, approx. 1,800 W
Connected load 115 V50/60 Hz, approx. 1,500 W
Maximum number of shelves8
Shelves included in scope of delivery2
InteriorEasy to clean, reinforced with deep-drawn ribbing, with protected, integrated 4-sided all-round heating
InstallationCan be moved and locked in place, on castors
ControlControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic display
Permissible ambient temperature+5 °C to +40 °C
Permissible relative humiditymax. 80 %, non-condensing
Maximum installation altitudemax. 2,000 m above sea level
MarkingsCE, VDE GS, UL, EAC

Other sizes in the series

The IN series with SingleDISPLAY ranges from 32 to 749 litres internal volume, sorted by internal volume:

ModelInternal volumeSet temperatureDisplay
IN3032 l+20 to +80 °CSingleDISPLAY
IN5553 l+20 to +80 °CSingleDISPLAY
IN7574 l+20 to +80 °CSingleDISPLAY
IN110108 l+20 to +80 °CSingleDISPLAY
IN160161 l+20 to +80 °CSingleDISPLAY
IN260256 l+20 to +80 °CSingleDISPLAY
IN450 (this page)449 l+20 to +80 °CSingleDISPLAY
IN750749 l+20 to +80 °CSingleDISPLAY

The same capacity is also available with TwinDISPLAY and two Pt100 sensors in the IN-plus series: IN450plus.

Scope of delivery

  • 1x Memmert IN450 incubator
  • Factory calibration certificate (calibrated at +37 °C)
  • Fully insulated stainless steel door with 2-point locking (compression door lock)
  • Inner glass door
  • 2x stainless steel grid shelf, electropolished

Regulatory information

This appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Memmert GmbH + Co. KG, is DE 66812464. Information on the return of old appliances can be found on our Environment and Disposal page.

Installation in a wall opening

For fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29740) or without air slots (B29741). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.

Individual requirements and procurement service

For the IN450, the following options, amongst others, can be ordered ex-works: 115 V voltage at no extra charge, a shatterproof door, a left-hand door hinge and a potential-free contact for fault reporting. Available accessories include additional grid shelves, floor drip trays, a USB-to-Ethernet adapter and AtmoCONTROL software licences. We arrange calibration and IQ/OQ services for qualification and re-qualification. We are happy to advise you personally on any individual requirements.

Certification marks: GS (VDE)
Volume: 449 l
Skip product gallery

Matching accessories

Memmert Edelstahl-Gitterrost, Zeichnung verschiedener Größen
Memmert stainless steel grid E20182 for sizes 450 and 750
Manufacturer number: E20182

The E20182 stainless steel grid is an electropolished shelf for 42 Memmert models in sizes 450 and 750. Each grid is a shelf level for the items loaded into the interior. If you need more shelf levels than are fitted as standard, you can add grids up to the maximum number in the table. The size corresponds to the number in the unit name, for example UF450 or UN450.All 42 models have 2 grids as standard. The maximum number is 8 grids (size 450) and 14 grids (size 750). According to Memmert, the load per shelf is 30 kg. The image is for illustration only. It is a Memmert drawing showing grids of different sizes.Typical applicationsTypical uses in the compatible units:Large-volume drying and heat treatment batches in industry and research, for example in the UF450Incubating very large sample quantities or several batches in research and medicine, for example in the IF750Large-volume stability studies of several batches according to ICH Q1A in contract laboratories and pharmaceutical manufacturing, for example in the HPP750ecoHeat treatment of very large material batches in industrial multi-shift operation, for example in the UN750Suitable forThe table shows for each model the number of grids included in the scope of delivery of the unit, the maximum possible number and the load per shelf.ModelGrids as standardMaximum number of gridsLoad per shelf (kg)Interior volume (l)UN450plus2830449UF450plus2830449UF4502830449UN4502830449UF750plus21430749UF75021430749UN75021430749UN750plus21430749IN450plus2830449IN4502830449IF750plus21430749IF450plus2830449IN75021430749IF75021430749IF4502830449IN750plus21430749IF750bw21430749IF450bw2830449IPP750eco21430749IPP750ecoPlus21430749HPP750eco21430749ICH75021430749ICP4502830449ICP75021430749IN450m2830449IN450mplus2830449IF450m2830449IF450mplus2830449IN750m21430749IN750mplus21430749IF750m21430749IF750mplus21430749UN450m2830449UN450mplus2830449UF450m2830449UF450mplus2830449UN750m21430749UN750mplus21430749UF750m21430749UF750mplus21430749UF450TS2830449UF750TS21430749The permissible total load of the unit additionally limits the loading. Please refer to the information in the unit’s data sheet.Technical detailsMaterialStainless steelSurfaceelectropolishedLoad per shelf according to Memmert30 kgScope of delivery1 stainless steel grid, electropolished (E20182)Individual requirements & procurement serviceFor further grids, perforated trays or reinforced grids, and for questions about compatibility with units not listed in the table, our procurement service accepts enquiries.

Manufacturer's RRP: €207.26
memmert rohrverlaengerung gerade
Memmert straight slip-on pipe extension B29718 for sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060
Manufacturer number: B29718

The straight slip-on pipe extension B29718 discharges the exhaust air and can be used to connect a hose if required. The pipe measures 60.3 mm on the outside and 57 mm on the inside.It is intended for Memmert U and Um universal ovens and I and Im incubators in sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060. The angled version is also available (B29719). The table of compatible models shows which series is available in which size. The image is for illustration only. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Incubating several parallel series of culture media in routine microbiology, for example in the IN55 incubatorTempering, ageing and baking of material samples in industrial quality assurance, for example in the UN110Drying and tempering of large, heavy components in industrial manufacturing, for example in the UF1060Suitable forModelSizeInterior volume (l)UF303032IF110110108UN260plus260256UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN260260256UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749UF106010601,060IF30plus3032IN30plus3032IF303032UF1060plus10601,060IN303032IF160160161IN450plus450449IN450450449IN160160161IF260plus260256IN260plus260256IF260260256IF55plus5553IN260260256IF750plus750749IF110plus110108IN55plus5553IF450plus450449IF555553IN555553IN75plus7574IF75plus7574IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161UF260260256UF260plus260256IN110110108IN757574IF757574IN750750749IF750750749IF450450449IN750plus750749IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161IN260m260256IN260mplus260256IF260m260256IF260mplus260256IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UN260m260256UN260mplus260256UF260m260256UF260mplus260256UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF1060m10601,060UF1060mplus10601,060Technical detailsPipe, outside60.3 mmPipe, inside57 mmScope of delivery1 straight slip-on pipe extensionIndividual requirements & procurement serviceFor the angled version, for further accessories and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €41.28
memmert rohrverlaengerung gewinkelt
Memmert angled slip-on pipe extension B29719 for sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060
Manufacturer number: B29719

The angled slip-on pipe extension B29719 discharges the exhaust air and can be used to connect a hose if required. The pipe measures 60.3 mm on the outside and 57 mm on the inside.It is intended for Memmert U and Um universal ovens and I and Im incubators in sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060. The straight version is also available (B29718). The table of compatible models shows which series is available in which size. The image is for illustration only. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsTypical uses in the compatible units:Parallel drying of several sample batches in a confined space, for example in the UN75Parallel incubation of several sample series in research and medicine, for example in the IF160Tempering, ageing and baking of material samples in series, for example in the UN260Testing and curing of larger components in quality assurance, for example in the UF750Suitable forModelSizeInterior volume (l)UF303032IF110110108UN260plus260256UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN260260256UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749UF106010601,060IF30plus3032IN30plus3032IF303032UF1060plus10601,060IN303032IF160160161IN450plus450449IN450450449IN160160161IF260plus260256IN260plus260256IF260260256IF55plus5553IN260260256IF750plus750749IF110plus110108IN55plus5553IF450plus450449IF555553IN555553IN75plus7574IF75plus7574IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161UF260260256UF260plus260256IN110110108IN757574IF757574IN750750749IF750750749IF450450449IN750plus750749IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161IN260m260256IN260mplus260256IF260m260256IF260mplus260256IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UN260m260256UN260mplus260256UF260m260256UF260mplus260256UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF1060m10601,060UF1060mplus10601,060Technical detailsPipe, outside60.3 mmPipe, inside57 mmScope of delivery1 angled slip-on pipe extensionIndividual requirements & procurement serviceFor the straight version, for further accessories and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €108.36
memmert boden abtropfschale
Memmert stainless steel base drip tray B04362 for sizes 450 and 750
Manufacturer number: B04362

The stainless steel base drip tray B04362 is intended for Memmert units in the U, Um, UF TS, I, Im, IPPeco, ICP, ICH and HPPeco series in sizes 450 and 750. It has a 15 mm rim, collects dripping liquid and, according to Memmert, can bear a maximum of 8 kg. The size corresponds to the number in the unit name, for example UF450 or UN450.According to Memmert, it can impair the spatial temperature distribution. According to Memmert, it cannot be used in conjunction with option K1, the interior modification with support rails for reinforced grids and perforated trays. The table of compatible models shows which series is available in which size. The slide-in drip tray for the same unit size is also available (B02075). The image is for illustration only.Typical applicationsTypical uses in the compatible units:Drying large quantities of laboratory glassware and sample vessels in multi-shift operation, for example in the UF750Forcing tests for beer stability, for example in the IPP750ecoShelf-life tests on dairy products, for example in the IPP750ecoSuitable forModelSizeInterior volume (l)UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749IN450plus450449IN450450449IF750plus750749IF450plus450449IN750750749IF750750749IF450450449IN750plus750749IPP750eco750749IPP750ecoPlus750749HPP750eco750749ICH750750749ICP450450449ICP750750749IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF450TS450449UF750TS750749Technical detailsMaterialStainless steelRim15 mmMaximum load according to Memmert8 kgScope of delivery1 stainless steel base drip tray, 15 mm rimIndividual requirements & procurement serviceFor the slide-in drip tray, for grids and perforated trays of the same size, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €326.80
Stainless steel perforated shelf, illustration
Memmert stainless steel perforated tray B68518 for sizes 450 and 750
Manufacturer number: B68518

B68518 is a stainless steel perforated tray for Memmert units in the U, Um, UF TS, I, Im, IPPeco, ICP, ICH, HPPeco and IFbw series in sizes 450 and 750. It is a shelf and therefore one shelf level in the interior. The size corresponds to the number in the unit name, for example UF450 or UN450. The image is for illustration only.Memmert specifies 30 kg as the maximum load per shelf. The total load of the unit is also limited; the values are given in the unit’s data sheet. The table of compatible models shows which series is available in which size.Typical applicationsTypical uses in the compatible units:Large-volume drying and heat treatment batches in industry and research, for example in the UF450Incubating very large sample quantities or several batches in research and medicine, for example in the IF750Large-volume stability studies of several batches according to ICH Q1A in contract laboratories and pharmaceutical manufacturing, for example in the HPP750ecoHeat treatment of very large material batches in industrial multi-shift operation, for example in the UN750Suitable forModelSizeInterior volume (l)UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749IN450plus450449IN450450449IF750plus750749IF450plus450449IN750750749IF750750749IF450450449IN750plus750749IF750bw750749IF450bw450449IPP750eco750749IPP750ecoPlus750749HPP750eco750749ICH750750749ICP450450449ICP750750749IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF450TS450449UF750TS750749Technical detailsMaterialStainless steelLoad per shelf according to Memmert30 kgScope of delivery1 stainless steel perforated trayIndividual requirements & procurement serviceFor grids, further perforated trays and drip trays, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €344.00
memmert untergestell nivellierbar
Memmert levelling base frame B29753, height 500 mm, for size 450
Manufacturer number: B29753

The levelling base frame B29753 has a height of 500 mm. It is intended for Memmert U and Um universal ovens, I and Im incubators and IFbw blanket warmers in size 450. The size corresponds to the number in the unit name, for example UF450 or UN450.In total, it fits 17 models of this size. The image is for illustration only.Typical applicationsUnits of size 450 are placed on the base frame. Typical uses of these units:Large-volume drying and heat treatment batches in industry and research, for example in the UF450Incubating large quantities of samples in research and medicine, for example in the IF450Vibration-free heat treatment of dust-sensitive materials on a large scale, for example in the UN450Suitable forModelSizeInterior volume (l)UN450plus450449UF450plus450449UF450450449UN450450449IN450plus450449IN450450449IF450plus450449IF450450449IF450bw450449IN450m450449IN450mplus450449IF450m450449IF450mplus450449UN450m450449UN450mplus450449UF450m450449UF450mplus450449Technical detailsHeight500 mmScope of delivery1 levelling base frame, height 500 mmIndividual requirements & procurement serviceFor base frames for other unit sizes and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €573.62
Memmert stainless steel slide-in drip tray B32763 for sizes 450 and 750, option K1 required
Manufacturer number: B32763

Only for units with factory option K1. The drip tray only fits units that were equipped with option K1 at the factory, a modification of the interior with support rails for reinforced grids and perforated trays. This option is available for sizes 450 and 750 and only ex works. If in doubt, ask us before ordering and state the serial number of your unit. For a new unit, option K1 can be ordered on request. The size corresponds to the number in the unit name, for example IF450 or IN450.The B32763 slide-in drip tray is made of stainless steel, has a 15 mm rim and collects dripping liquid. It is supplied with guide rails and fixing screws and is the version for units with option K1. For units without option K1, the B02075 slide-in drip tray is also available.According to Memmert, it can impair the spatial temperature distribution. It is intended for Memmert units in the U, UF TS, I, IPPeco, ICP, ICH and HPPeco series in sizes 450 and 750. The table of compatible models shows which series is available in which size.Typical applicationsTypical uses in the compatible units:Drying large quantities of laboratory glassware and sample vessels in multi-shift operation, for example in the UF750Forcing tests for beer stability, for example in the IPP750ecoShelf-life tests on dairy products, for example in the IPP750ecoSuitable forModelSizeInterior volume (l)IF450450449IN450450449IF450plus450449IN450plus450449ICP450450449UF450450449UN450450449UF450plus450449UN450plus450449UF450TS450449HPP750eco750749IF750750749IN750750749IF750plus750749IN750plus750749ICH750750749ICP750750749IPP750eco750749IPP750ecoplus750749UF750750749UN750750749UF750plus750749UN750plus750749UF750TS750749Technical detailsMaterialStainless steelRim15 mmRequired optionK1 (ex works only)Scope of delivery1 stainless steel slide-in drip tray, 15 mm rim, with guide rails and fixing screwsIndividual requirements & procurement serviceFor the drip tray without option K1, for grids and perforated trays of the same size and for questions about option K1, our procurement service accepts enquiries.

Manufacturer's RRP: €253.70
Memmert Edelstahl-Gitterrost, Zeichnung verschiedener Größen
Memmert reinforced stainless steel grid B32190 for sizes 450 and 750, option K1 required
Manufacturer number: B32190

Only for units with factory option K1. The grid only fits units that were equipped with option K1 at the factory, a modification of the interior for reinforced grids. This option is only available ex works. If in doubt, ask us before ordering and state the serial number of your unit. For a new unit, option K1 can be ordered on request.The reinforced stainless steel grid B32190 is electropolished and, according to Memmert, can bear up to 60 kg. According to Memmert, the standard grids carry 30 kg per shelf in these sizes. The grid is a shelf level in the interior. It is intended for Memmert units in the U, I, IPPeco, ICP, ICH and HPPeco series in sizes 450 and 750. The size corresponds to the number in the unit name, for example IF450 or IN450.Please note the maximum load per unit, as it limits the total load of all shelves. The table of compatible models shows which series is available in which size. The image is for illustration only.Typical applicationsTypical uses in the compatible units:Heavier loading with reinforced grids or perforated trays up to 60 kg in conjunction with option K1, for example in the IPP750ecoplusTesting and curing of larger components in quality assurance, for example in the UF750Environmental tests from freezing point upwards for larger, heavy test specimens, for example in the HPP750ecoSuitable forModelSizeInterior volume (l)ICP450450449IF450450449IF450plus450449IN450450449IN450plus450449UF450450449UF450TS450449UF450plus450449UN450450449UN450plus450449HPP750eco750749ICH750750749ICP750750749IF750750749IF750plus750749IN750750749IN750plus750749IPP750eco750749IPP750ecoPlus750749UF750750749UF750TS750749UF750plus750749UN750750749UN750plus750749Technical detailsMaterialStainless steelSurfaceelectropolishedLoad per shelf according to Memmertup to 60 kgScope of delivery1 reinforced stainless steel grid, electropolished, with guide rails and fixing screwsIndividual requirements & procurement serviceFor standard grids, perforated trays and drip trays of the same size, for questions about option K1 and about compatibility with units not listed in the table, our procurement service accepts enquiries.

Manufacturer's RRP: €508.26
Memmert stainless steel base drip tray B34055 for sizes 450 and 750, option K1 required
Manufacturer number: B34055

Only for units with factory option K1. The drip tray only fits units that were equipped with option K1 at the factory, a modification of the interior with support rails for reinforced grids and perforated trays. This option is available for sizes 450 and 750 and only ex works. If in doubt, ask us before ordering and state the serial number of your unit. For a new unit, option K1 can be ordered on request. The size corresponds to the number in the unit name, for example IF450 or IN450.The B34055 base drip tray is made of stainless steel, has a 15 mm rim and collects dripping liquid. It is the version for units with option K1. For units without option K1, the B04362 base drip tray is also available.Memmert points out that it can impair the spatial temperature distribution. It is intended for Memmert units in the U, UF TS, I, IPPeco, ICP, ICH and HPPeco series in sizes 450 and 750. The table of compatible models shows which series is available in which size.Typical applicationsTasks that occur in the compatible units include, for example:Drying large quantities of laboratory glassware and sample vessels in multi-shift operation, for example in the UF750Shelf-life tests on dairy products, for example in the IPP750ecoForcing tests for beer stability, for example in the IPP750ecoSuitable forModelSizeInterior volume (l)IF450450449IN450450449IF450plus450449IN450plus450449ICP450450449UF450450449UN450450449UF450plus450449UN450plus450449UF450TS450449HPP750eco750749IF750750749IN750750749IF750plus750749IN750plus750749ICH750750749ICP750750749IPP750eco750749IPP750ecoplus750749UF750750749UN750750749UF750plus750749UN750plus750749UF750TS750749Technical detailsMaterialStainless steelRim15 mmRequired optionK1 (ex works only)Scope of delivery1 stainless steel base drip tray, 15 mm rimIndividual requirements & procurement serviceFor the base drip tray without option K1 and the slide-in drip tray, for questions about option K1 and about compatibility with units not listed in the table, our procurement service accepts enquiries.

Manufacturer's RRP: €326.80
Stainless steel perforated shelf, illustration
Memmert reinforced stainless steel perforated tray B68521 for sizes 450 and 750, option K1 required
Manufacturer number: B68521

Only for units with factory option K1. The perforated tray only fits units that were equipped with option K1 at the factory, a modification of the interior with support rails for reinforced grids and perforated trays. This option is available for sizes 450 and 750 and only ex works. If in doubt, ask us before ordering and state the serial number of your unit. For a new unit, option K1 can be ordered on request. The size corresponds to the number in the unit name, for example IF450 or IN450.According to Memmert, the reinforced stainless steel perforated tray B68521 can bear up to 60 kg and is supplied with guide rails and fixing screws. According to Memmert, the standard perforated tray B68518 carries 30 kg per shelf in these sizes. The perforated tray is a shelf level in the interior. It is intended for Memmert units in the U, UF TS, I, IPPeco, ICP, ICH and HPPeco series in sizes 450 and 750. The image is for illustration only.Please note the maximum load per unit. It limits the total load of all shelves. The table of compatible models shows which series is available in which size.Typical applicationsTypical uses in the compatible units:Heavier loading with reinforced grids or perforated trays up to 60 kg in conjunction with option K1, for example in the IPP750ecoplusHeat treatment of very large material batches in industrial multi-shift operation, for example in the UN750Environmental tests from freezing point upwards for larger, heavy test specimens, for example in the HPP750ecoSuitable forModelSizeInterior volume (l)IF450450449IN450450449IF450plus450449IN450plus450449ICP450450449UF450450449UN450450449UF450plus450449UN450plus450449UF450TS450449HPP750eco750749IF750750749IN750750749IF750plus750749IN750plus750749ICH750750749ICP750750749IPP750eco750749IPP750ecoplus750749UF750750749UN750750749UF750plus750749UN750plus750749UF750TS750749Technical detailsMaterialStainless steelVersionreinforcedLoad capacity according to Memmertup to 60 kgRequired optionK1 (ex works only)Scope of delivery1 reinforced stainless steel perforated tray with guide rails and fixing screwsIndividual requirements & procurement serviceFor standard perforated trays, grids and drip trays of the same size, for questions about option K1 and about compatibility with units not listed in the table, our procurement service accepts enquiries.

Manufacturer's RRP: €842.80
memmert einschiebe abtropfschale
Memmert stainless steel slide-in drip tray B02075 for sizes 450 and 750
Manufacturer number: B02075

The B02075 slide-in drip tray is made of stainless steel, has a 15 mm rim and collects dripping liquid. It is intended for Memmert units in the U, Um, UF TS, I, Im, IPPeco, ICP, ICH and HPPeco series in sizes 450 and 750; according to Memmert, the maximum load is 8 kg. The size corresponds to the number in the unit name, for example UF450 or UN450.Memmert points out that it can impair the spatial temperature distribution. It cannot be used in conjunction with option K1, the interior modification with support rails for reinforced grids and perforated trays. The table of compatible models shows which series is available in which size. The base drip tray for the same unit size is also available (B04362). The image is for illustration only.Typical applicationsTypical uses in the compatible units:Drying large quantities of laboratory glassware and sample vessels in multi-shift operation, for example in the UF750Forcing tests for beer stability, for example in the IPP750ecoShelf-life tests on dairy products, for example in the IPP750ecoSuitable forModelSizeInterior volume (l)UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749IN450plus450449IN450450449IF750plus750749IF450plus450449IN750750749IF750750749IF450450449IN750plus750749IPP750eco750749IPP750ecoPlus750749HPP750eco750749ICH750750749ICP450450449ICP750750749IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF450TS450449UF750TS750749Technical detailsMaterialStainless steelRim15 mmMaximum load according to Memmert8 kgScope of delivery1 stainless steel slide-in drip tray, 15 mm rimIndividual requirements & procurement serviceFor the base drip tray, for grids and perforated trays of the same size, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.

Manufacturer's RRP: €253.70
