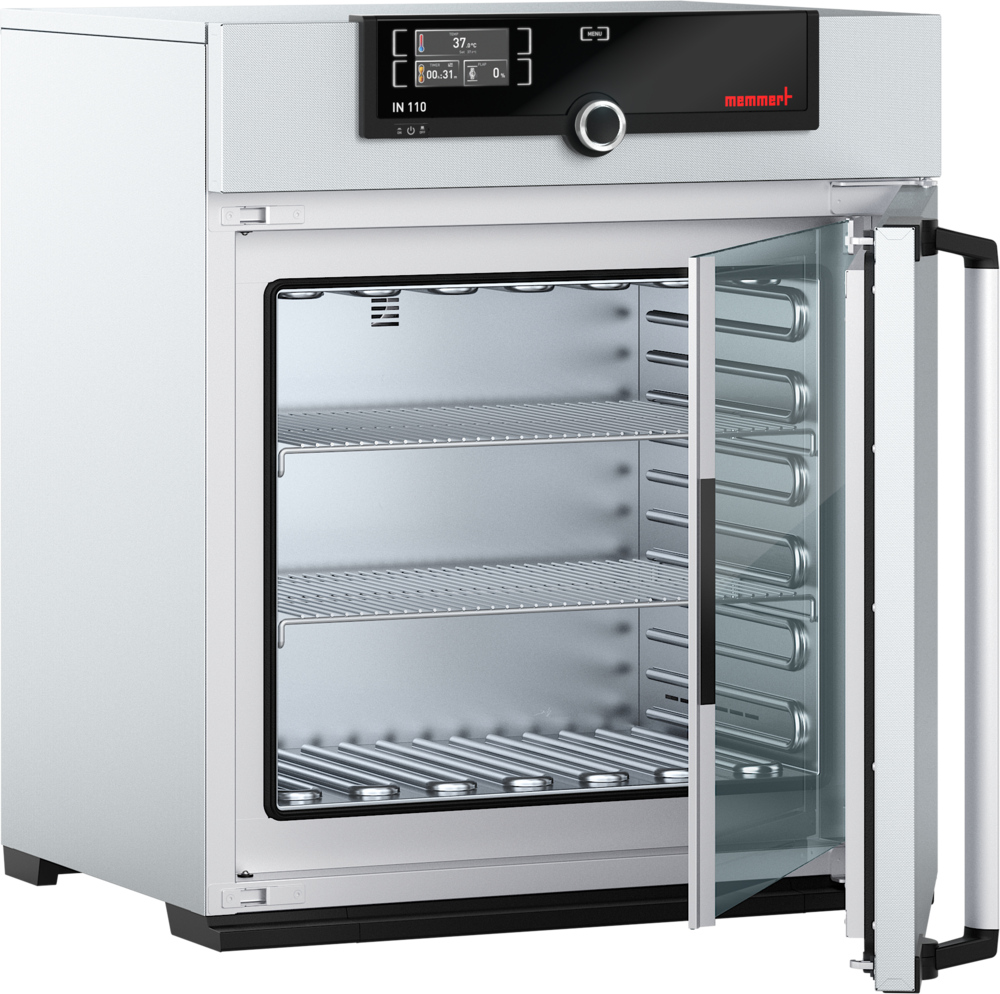

Memmert IN110 incubator, 108 l, +20 to +80 °C, SingleDISPLAY
€1,859.00
Delivery time: 2-3 weeks
- 108-litre internal capacity, up to 5 shelves
- ControlCOCKPIT SingleDISPLAY with TFT colour graphic display
- Setting range +20 to +80 °C, setting accuracy 0.1 °C
- Natural convection with fresh air supply
- Mechanical temperature limiter according to DIN 12880
- Factory calibration certificate at +37 °C included
- Up to 5 grids possible, more available as accessories
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Memmert IN110 incubator, 108 l, +20 to +80 °C, SingleDISPLAY"
The IN110 offers an internal capacity of 108 litres with a maximum of five shelves, two of which are included as standard. The net weight is around 76 kilograms, and the temperature is controlled via a ControlCOCKPIT SingleDISPLAY within the range of +20 to +80 °C.
Positioning and air circulation
Memmert recommends a minimum clearance of 15 centimetres from the wall, a minimum of 20 centimetres from the ceiling and a minimum of 5 centimetres at the sides. The unit is supplied as standard without castors; a castor frame can be ordered as a factory option. An electronically adjustable exhaust air flap introduces preheated fresh air; the exhaust air outlet with a throttle valve can also be controlled electronically. The interior is reinforced with deep-drawn ribbing and features a protected, integrated 4-sided all-round heating system; the housing has a fully galvanised sheet steel rear panel.
Controller and data acquisition
A DIN Class A Pt100 sensor with a 4-wire measurement system supplies the actual temperature to the ControlCOCKPIT; the setting accuracy is 0.1 °C. SetpointWAIT only starts the process time once the setpoint temperature has been reached; three freely selectable temperature values can be calibrated. The programme sequence remains stored in the event of a power failure, and the data logger can be read out via the Ethernet interface.
Temperature limitation and door construction
A mechanical temperature limiter, protection class 1 according to DIN 12880, switches off the heating when the temperature rises to approximately 20 °C above the maximum cabinet temperature; an adjustable electronic temperature monitoring system complements this safeguard. In front of the inner glass door is a fully insulated stainless steel door with a 2-point locking mechanism and a compression door lock; a self-diagnostic system assists with troubleshooting. The permissible ambient temperature is between +5 °C and +40 °C, with a maximum relative humidity of 80 %.
Guide to choosing the right size
The smaller IN75 has a capacity of 74 litres with a maximum of six shelves, whilst the IN110 offers an internal volume of 108 litres despite having only five shelves. If more than five shelves are required, the table below lists the IN160 with 161 litres and eight shelves.
Typical applications
The IN110 is suitable as an incubator with natural convection for incubating and temperature-controlling samples in the range from +20 to +80 °C, including in research applications.
- Incubation and temperature control of samples across five shelves
- Use in medicine, pharmacy, food analysis and food chemistry
- Use in research
Technical details
| Temperature setting range | +20 to +80 °C |
|---|---|
| Working temperature range | At least 5 °C above room temperature up to +80 °C |
| Temperature setting accuracy | 0.1 °C |
| Temperature sensor | 1 Pt100 DIN Class A in 4-wire configuration |
| Internal volume | 108 l |
| Internal dimensions (W x H x D) | 560 x 480 x 400 mm |
| External dimensions of housing (W x H x D) | 745 x 864 x 584 mm (depth plus 56 mm for door handle) |
| Net weight | approx. 76 kg |
| Connection 230 V | 50/60 Hz, approx. 1,400 W |
| Connection 115 V | 50/60 Hz, approx. 900 W |
| Maximum number of shelves | 5 |
| Shelves included in the scope of delivery | 2 |
| Interior | Easy to clean, reinforced with deep-drawn ribbing, with protected, integrated 4-sided all-round heating |
| Control | ControlCOCKPIT SingleDISPLAY, PID microprocessor controller, TFT colour graphic display |
| Permissible ambient temperature | +5 °C to +40 °C |
| Permissible relative humidity | max. 80 %, non-condensing |
| Maximum installation altitude | max. 2,000 m above sea level |
| Markings | CE, VDE GS, UL, EAC |
Other sizes in the series
The IN series with SingleDISPLAY ranges from 32 to 749 litres internal volume, sorted by internal volume:
| Model | Internal volume | Setting temperature | Display |
|---|---|---|---|
| IN30 | 32 l | +20 to +80 °C | SingleDISPLAY |
| IN55 | 53 l | +20 to +80 °C | SingleDISPLAY |
| IN75 | 74 l | +20 to +80 °C | SingleDISPLAY |
| IN110 (this page) | 108 l | +20 to +80 °C | SingleDISPLAY |
| IN160 | 161 l | +20 to +80 °C | SingleDISPLAY |
| IN260 | 256 l | +20 to +80 °C | SingleDISPLAY |
| IN450 | 449 l | +20 to +80 °C | SingleDISPLAY |
| IN750 | 749 l | +20 to +80 °C | SingleDISPLAY |
The same capacity is also available with TwinDISPLAY and two Pt100 sensors in the IN-plus series: IN110plus.
Scope of delivery
- 1x Memmert IN110 incubator
- Factory calibration certificate (calibrated at +37 °C)
- Fully insulated stainless steel door with 2-point locking (compression door lock)
- Inner glass door
- 2x stainless steel grid shelf, electropolished
Regulatory information
This appliance is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Memmert GmbH + Co. KG, is DE 66812464. Information on the return of old appliances can be found on our Environment and disposal page.
Installation in a wall opening
For fixed installation in a wall opening, Memmert offers a flush-fit unit. It covers the gap between the unit and the wall opening with stainless steel and is available with air slots (B29734) or without air slots (B29735). According to Memmert, the installation situation must be clarified technically beforehand. The flush-fit unit is therefore available on request through our procurement service.
Individual requirements and procurement service
The following items, amongst others, can be ordered ex-works for the IN110: interior lighting, an internal power socket, a shatterproof door and feed-throughs of various diameters. Accessories available include reinforced grid shelves, drip trays, levelling feet and a stacking kit; for qualification and re-qualification, we arrange calibration and IQ/OQ services. We are available to assist you personally with bespoke configurations.
| Certification marks: | GS (VDE) |
|---|---|
| Volume: | 108 l |
Matching accessories
The E20165 stainless steel grid is an electropolished shelf for 43 Memmert models in sizes 105, 110, 150 and 160. Each grid is a shelf level for the items loaded into the interior. If you need more shelf levels than are fitted as standard, you can add grids up to the maximum number in the table. The size corresponds to the number in the unit name, for example IF110 or UF110.For sizes 110 and 160, 2 grids are fitted as standard, and the interior holds up to 5 grids (size 110) or 8 grids (size 160). The HCP105 and HCP150 humidity chambers have 2 perforated shelves as standard; the maximum number there is 6 (HCP105) and 10 (HCP150). According to Memmert, the load per shelf is 20 kg, and 15 kg for the HCP105 and HCP150. The image is for illustration only. It is a Memmert drawing showing grids of different sizes.Typical applicationsTypical uses in the compatible units:Drying laboratory glassware and medium-sized sample series in routine operation, for example in the UF110Parallel incubation of several sample series in research and medicine, for example in the IF160Tempering, ageing and baking of material specimens and material samples, for example in the UF160Environmental tests and environmental simulations in the HCP105 and HCP150 humidity chambersSuitable forThe table shows for each model the number of grids included in the scope of delivery of the unit, the maximum possible number and the load per shelf.ModelGrids as standardMaximum number of gridsLoad per shelf (kg)Interior volume (l)IF110bw2520108IF1102520108IN110plus2520108UF1102520108UN110pa2520108UN160pa2820161IF1602820161IN1602820161IF110plus2520108IF160plus2820161IN160plus2820161UF110plus2520108UN1102520108UN110plus2520108UF1602820161UF160plus2820161UN1602820161UN160plus2820161IN1102520108IPP110eco2520108IPP110ecoplus2520108HPP110eco2520108HCP1052 (perforated shelf)615107HCP1502 (perforated shelf)1015156ICH1102520108ICP1102520108IN110m2520108IN110mplus2520108IF110m2520108IF110mplus2520108IN160m2820161IN160mplus2820161IF160m2820161IF160mplus2820161UN110m2520108UN110mplus2520108UF110m2520108UF110mplus2520108UN160m2820161UN160mplus2820161UF160m2820161UF160mplus2820161UF160TS2820161The permissible total load of the unit additionally limits the loading. Please refer to the information in the unit’s data sheet.Technical detailsMaterialStainless steelSurfaceelectropolishedLoad per shelf according to Memmert20 kg, 15 kg for the HCP105 and HCP150Scope of delivery1 stainless steel grid, electropolished (E20165)Individual requirements & procurement serviceFor further grids, perforated trays or reinforced grids, and for questions about compatibility with units not listed in the table, our procurement service accepts enquiries.
The straight slip-on pipe extension B29718 discharges the exhaust air and can be used to connect a hose if required. The pipe measures 60.3 mm on the outside and 57 mm on the inside.It is intended for Memmert U and Um universal ovens and I and Im incubators in sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060. The angled version is also available (B29719). The table of compatible models shows which series is available in which size. The image is for illustration only. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Incubating several parallel series of culture media in routine microbiology, for example in the IN55 incubatorTempering, ageing and baking of material samples in industrial quality assurance, for example in the UN110Drying and tempering of large, heavy components in industrial manufacturing, for example in the UF1060Suitable forModelSizeInterior volume (l)UF303032IF110110108UN260plus260256UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN260260256UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749UF106010601,060IF30plus3032IN30plus3032IF303032UF1060plus10601,060IN303032IF160160161IN450plus450449IN450450449IN160160161IF260plus260256IN260plus260256IF260260256IF55plus5553IN260260256IF750plus750749IF110plus110108IN55plus5553IF450plus450449IF555553IN555553IN75plus7574IF75plus7574IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161UF260260256UF260plus260256IN110110108IN757574IF757574IN750750749IF750750749IF450450449IN750plus750749IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161IN260m260256IN260mplus260256IF260m260256IF260mplus260256IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UN260m260256UN260mplus260256UF260m260256UF260mplus260256UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF1060m10601,060UF1060mplus10601,060Technical detailsPipe, outside60.3 mmPipe, inside57 mmScope of delivery1 straight slip-on pipe extensionIndividual requirements & procurement serviceFor the angled version, for further accessories and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
The angled slip-on pipe extension B29719 discharges the exhaust air and can be used to connect a hose if required. The pipe measures 60.3 mm on the outside and 57 mm on the inside.It is intended for Memmert U and Um universal ovens and I and Im incubators in sizes 30, 55, 75, 110, 160, 260, 450, 750 and 1060. The straight version is also available (B29718). The table of compatible models shows which series is available in which size. The image is for illustration only. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsTypical uses in the compatible units:Parallel drying of several sample batches in a confined space, for example in the UN75Parallel incubation of several sample series in research and medicine, for example in the IF160Tempering, ageing and baking of material samples in series, for example in the UN260Testing and curing of larger components in quality assurance, for example in the UF750Suitable forModelSizeInterior volume (l)UF303032IF110110108UN260plus260256UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN260260256UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN450plus450449UF450plus450449UF450450449UN450450449UF750plus750749UF750750749UN750750749UN750plus750749UF106010601,060IF30plus3032IN30plus3032IF303032UF1060plus10601,060IN303032IF160160161IN450plus450449IN450450449IN160160161IF260plus260256IN260plus260256IF260260256IF55plus5553IN260260256IF750plus750749IF110plus110108IN55plus5553IF450plus450449IF555553IN555553IN75plus7574IF75plus7574IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161UF260260256UF260plus260256IN110110108IN757574IF757574IN750750749IF750750749IF450450449IN750plus750749IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161IN260m260256IN260mplus260256IF260m260256IF260mplus260256IN450m450449IN450mplus450449IF450m450449IF450mplus450449IN750m750749IN750mplus750749IF750m750749IF750mplus750749UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UN260m260256UN260mplus260256UF260m260256UF260mplus260256UN450m450449UN450mplus450449UF450m450449UF450mplus450449UN750m750749UN750mplus750749UF750m750749UF750mplus750749UF1060m10601,060UF1060mplus10601,060Technical detailsPipe, outside60.3 mmPipe, inside57 mmScope of delivery1 angled slip-on pipe extensionIndividual requirements & procurement serviceFor the straight version, for further accessories and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
The reinforced stainless steel grid E29767 is available for Memmert units in the U, Um, I, Im, IPPeco, ICP, ICH and HPPeco series in sizes 110 and 160. It is electropolished and, according to Memmert, can bear up to 60 kg; for the standard grids in these sizes it is 20 kg per shelf. The grid is a shelf level in the interior. The size corresponds to the number in the unit name, for example IF110 or UF110.Please note the maximum load per unit, as it limits the total load of all shelves. The table of compatible models shows which series is available in which size. The image is for illustration only.Typical applicationsTypical uses in the compatible units:Drying larger quantities of laboratory glassware and sample containers, for example in the UN110Tempering, ageing and baking of material samples in industrial quality assurance, for example in the UN110Material tests in industrial manufacturing, for example in the UF160Suitable forModelSizeInterior volume (l)IF110110108IN110plus110108UF110110108IF160160161IN160160161IF110plus110108IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161IN110110108IPP110eco110108IPP110ecoplus110108HPP110eco110108ICH110110108ICP110110108IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161Technical detailsMaterialStainless steelSurfaceelectropolishedLoad per shelf according to Memmertup to 60 kgScope of delivery1 reinforced stainless steel grid, electropolishedIndividual requirements & procurement serviceFor standard grids, perforated trays and drip trays of the same size, and for questions about compatibility with units not listed in the table, our procurement service accepts enquiries.
The B29768 set of levelling feet contains 4 pieces. With levelling feet, the unit can be aligned horizontally.The set is intended for Memmert units in the U, Um, UF TS, UNpa, I, Im, IPPeco and HPPeco series in sizes 30, 55, 75, 110, 160 and 260. The table of compatible models shows which series is available in which size. The size corresponds to the number in the unit name, for example UF30 or UN30.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Incubating several parallel series of culture media in routine microbiology, for example in the IN55 incubatorEmbedding and heating larger quantities of paraffin or wax, for example in the UN110pa paraffin ovenParallel stability studies of several active substance batches according to ICH Q1A, for example in the HPP260ecoSuitable forModelSizeInterior volume (l)UF303032IF110110108UN260plus260256UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN260260256UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN110pa110108UN75pa7574UN160pa160161IF30plus3032IN30plus3032IF303032IN303032IF160160161IN160160161IF260plus260256IN260plus260256IF260260256IF55plus5553IN260260256IF110plus110108UN30pa3032IN55plus5553IF555553IN555553IN75plus7574IF75plus7574IF160plus160161IN160plus160161UN55pa5553UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161UF260260256UF260plus260256IPP555553IN110110108IN757574IF757574IPP55plus5553IPP110eco110108IPP303032IPP110ecoplus110108IPP30plus3032IPP260eco260256IPP260ecoPlus260256HPP110eco110108HPP260eco260256IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161IN260m260256IN260mplus260256IF260m260256IF260mplus260256UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UN260m260256UN260mplus260256UF260m260256UF260mplus260256UF160TS160161UF260TS260256Scope of delivery1 set of levelling feet (4 pieces)Individual requirements & procurement serviceFor base frames, further accessories and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
The mobile base frame B29750 is 560 mm high.It is intended for Memmert units in the U, Um, UNpa, I, Im, IPPeco, HPPeco and IFbw series in sizes 110 and 160. The levelling version with a height of 500 mm is also available (B29749), as is a flat base frame with a height of 130 mm (B33661). The table of compatible models shows which series is available in which size. The image is for illustration only. The size corresponds to the number in the unit name, for example IF110 or UF110.Typical applicationsUnits of sizes 110 and 160 are placed on the base frame. Typical uses of these units:Tempering, ageing and baking of material specimens and material samples, for example in the UF160Incubating several sample series at the same time in research and medicine, for example in the IF110Vibration-free drying of dust- or air-sensitive materials in several batches, for example in the UN110Cooled incubation of larger sample quantities or several parallel test series below room temperature, for example in the IPP110ecoSuitable forModelSizeInterior volume (l)IF110bw110108IF110110108IN110plus110108UF110110108UN110pa110108UN160pa160161IF160160161IN160160161IF110plus110108IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161IN110110108IPP110eco110108IPP110ecoplus110108HPP110eco110108IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161Technical detailsHeight560 mmScope of delivery1 mobile base frame, height 560 mmIndividual requirements & procurement serviceFor the flat and the levelling version, for base frames for other unit sizes, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
The levelling base frame B33661, with a height of 130 mm, is the flat version for Memmert units in the U, Um, UNpa, I, Im, IPPeco, HPPeco and IFbw series in sizes 110 and 160. The size corresponds to the number in the unit name, for example IF110 or UF110.The base frame B29749 with a height of 500 mm is also available for these sizes. The table of compatible models shows which series is available in which size.Typical applicationsUnits of sizes 110 and 160 are placed on the base frame. Typical uses of these units:Drying larger quantities of laboratory glassware and sample containers, for example in the UN110Tempering larger batches in the pharmaceutical industry, for example in the IF160Production of microscopic specimens in the laboratory, for example in the UN160pa paraffin ovenMaterials testing in industrial quality assurance, for example in the HPP110ecoSuitable forModelSizeInterior volume (l)IF110bw110108IF110110108IN110plus110108UF110110108UN110pa110108UN160pa160161IF160160161IN160160161IF110plus110108IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161IN110110108IPP110eco110108IPP110ecoplus110108HPP110eco110108IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161Technical detailsHeight130 mmScope of delivery1 levelling base frame, height 130 mmIndividual requirements & procurement serviceFor the taller version, for base frames for other unit sizes, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
The B29744 stacking kit consists of 4 pieces and is intended for stacking units of the same size. It is intended for Memmert units in the U, Um, UNpa, I, Im, IPPeco, HPPeco, HCP and IFbw series in sizes 30, 50, 55, 75, 105 and 110. The size corresponds to the number in the unit name, for example UF30 or UN30.Separate stacking kits are also available for HCP150, HCP240 and for ICO50, 180 and 240 (B42114, B48129, B68362 and B64732). The table of compatible models shows which series is available in which size.Typical applicationsTypical uses in the compatible units:Drying small sample series in laboratory operation, for example in the UF30Incubating several parallel series of culture media in routine microbiology, for example in the IN55 incubatorIncubating several sample series at the same time in research and medicine, for example in the IF110Environmental tests and environmental simulations in the HCP105 humidity chamberSuitable forModelSizeInterior volume (l)IF110bw110108UF303032IF110110108UN303032UF30plus3032UN30plus3032UF555553UF55plus5553UN555553UN55plus5553UF757574UF75plus7574UN75plus7574IN110plus110108UN757574UF110110108UN110pa110108UN75pa7574IF30plus3032IN30plus3032IF303032IN303032IF55plus5553IF110plus110108UN30pa3032IN55plus5553IF555553IN555553IN75plus7574IF75plus7574UN55pa5553UF110plus110108UN110110108UN110plus110108IPP555553IN110110108IN757574IF757574IPP55plus5553IPP110eco110108IPP303032IPP110ecoplus110108IPP30plus3032HPP110eco110108HCP505056HCP105105107IN30m3032IN30mplus3032IF30m3032IF30mplus3032IN55m5553IN55mplus5553IF55m5553IF55mplus5553IN75m7574IN75mplus7574IF75m7574IF75mplus7574IN110m110108IN110mplus110108IF110m110108IF110mplus110108UN30m3032UN30mplus3032UF30m3032UF30mplus3032UN55m5553UN55mplus5553UF55m5553UF55mplus5553UN75m7574UN75mplus7574UF75m7574UF75mplus7574UN110m110108UN110mplus110108UF110m110108UF110mplus110108Scope of delivery1 stacking kit (4 pieces)Individual requirements & procurement serviceFor the stacking kits for HCP humidity chambers and ICO CO₂ incubators, for base frames and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
The wall bracket B29758 is intended for wall mounting of Memmert units in the I, IFbw, Im, U, UNpa and Um series in size 110. The table of compatible models shows which series is available in this size. The image is a Memmert drawing and is for illustration only. The size corresponds to the number in the unit name, for example IF110 or IN110.Typical applicationsTypical uses in the compatible units:Drying larger quantities of laboratory glassware and sample containers, for example in the UN110Incubating several sample series at the same time in research and medicine, for example in the IF110Embedding and heating of larger quantities of paraffin or wax, for example in the UN110paSuitable forModelSizeInterior volume (l)IF110110108IN110110108IF110plus110108IN110plus110108IF110bw110108IF110m110108IN110m110108IF110mplus110108IN110mplus110108UF110110108UN110110108UF110plus110108UN110plus110108UN110pa110108UF110m110108UN110m110108UF110mplus110108UN110mplus110108Scope of delivery1 wall bracket for wall mountingIndividual requirements & procurement serviceFor questions about wall mounting and about compatibility with units not listed in the table, our procurement service accepts enquiries.
B02073 is a stainless steel slide-in drip tray with a 15 mm rim for Memmert units in the U, Um, UF TS, UNpa, I, Im, IPPeco, ICP, ICH and HPPeco series in sizes 110 and 160. It collects dripping liquid. According to Memmert, the maximum load is 3 kg per slide-in drip tray. The size corresponds to the number in the unit name, for example IF110 or UF110.Memmert points out that it can impair the spatial temperature distribution. The table of compatible models shows which series is available in which size. The base drip tray for the same unit size is also available (B04359). The image is for illustration only.Typical applicationsTypical uses in the compatible units:Drying larger quantities of laboratory glassware and sample containers, for example in the UN110Drying laboratory glassware and sample vessels in routine operation, for example in the UF160Embedding and heating larger quantities of paraffin or wax, for example in the UN110pa paraffin ovenSuitable forModelSizeInterior volume (l)IF110110108IN110plus110108UF110110108UN110pa110108UN160pa160161IF160160161IN160160161IF110plus110108IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161IN110110108IPP110eco110108IPP110ecoplus110108HPP110eco110108ICH110110108ICP110110108IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UF160TS160161Technical detailsMaterialStainless steelRim15 mmMaximum load according to Memmert3 kgScope of delivery1 stainless steel slide-in drip tray, 15 mm rimIndividual requirements & procurement serviceFor the base drip tray, for grids and perforated trays of the same size, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
The B04359 base drip tray is made of stainless steel and has a 15 mm rim. It is intended for Memmert units in the U, Um, UF TS, UNpa, I, Im, IPPeco, ICP, ICH and HPPeco series in sizes 110 and 160 and collects dripping liquid. According to Memmert, the maximum load per base drip tray for these sizes is 3 kg. The size corresponds to the number in the unit name, for example IF110 or UF110.In addition, according to Memmert, it can impair the spatial temperature distribution. The table of compatible models shows which series is available in which size. The slide-in drip tray for the same unit size is also available (B02073). The image is for illustration only.Typical applicationsTypical uses in the compatible units:Drying larger quantities of laboratory glassware and sample containers, for example in the UN110Drying laboratory glassware and sample vessels in routine operation, for example in the UF160Embedding and heating larger quantities of paraffin or wax, for example in the UN110pa paraffin ovenSuitable forModelSizeInterior volume (l)IF110110108IN110plus110108UF110110108UN110pa110108UN160pa160161IF160160161IN160160161IF110plus110108IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161IN110110108IPP110eco110108IPP110ecoplus110108HPP110eco110108ICH110110108ICP110110108IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UF160TS160161Technical detailsMaterialStainless steelRim15 mmMaximum load according to Memmert3 kgScope of delivery1 stainless steel base drip tray, 15 mm rimIndividual requirements & procurement serviceFor the slide-in drip tray, for grids and perforated trays of the same size, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
B29749 is a levelling base frame with a height of 500 mm for Memmert units in the U, Um, UNpa, I, Im, IPPeco, HPPeco and IFbw series in sizes 110 and 160. The size corresponds to the number in the unit name, for example IF110 or UF110.A flat base frame with a height of 130 mm is also available (B33661). The mobile version with a height of 560 mm is also available (B29750). The table of compatible models shows which series is available in which size. The image is for illustration only.Typical applicationsUnits of sizes 110 and 160 are placed on the base frame. Typical uses of these units:Drying laboratory glassware and medium-sized sample series in routine operation, for example in the UF110Parallel incubation of several sample series in research and medicine, for example in the IF160Embedding and heating larger quantities of paraffin or wax, for example in the UN110pa paraffin ovenStability studies of individual active substance batches according to ICH Q1A in pharmaceutical quality assurance, for example in the HPP110ecoSuitable forModelSizeInterior volume (l)IF110bw110108IF110110108IN110plus110108UF110110108UN110pa110108UN160pa160161IF160160161IN160160161IF110plus110108IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161IN110110108IPP110eco110108IPP110ecoplus110108HPP110eco110108IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161Technical detailsHeight500 mmScope of delivery1 levelling base frame, height 500 mmIndividual requirements & procurement serviceFor the flat and the mobile version, for base frames for other unit sizes, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
This stainless steel perforated tray (B68508) is intended for Memmert units in the U, Um, UF TS, UNpa, I, Im, IPPeco, ICP, ICH, HPPeco and IFbw series in sizes 110 and 160. It is a shelf and therefore one shelf level in the interior. The size corresponds to the number in the unit name, for example IF110 or UF110. The image is for illustration only.According to Memmert, a maximum of 20 kg is permitted per shelf. If you want to load several shelves, also check the maximum load per unit in the data sheet. The table of compatible models shows which series is available in which size.Typical applicationsTypical uses in the compatible units:Drying laboratory glassware and medium-sized sample series in routine operation, for example in the UF110Parallel incubation of several sample series in research and medicine, for example in the IF160Tempering, ageing and baking of material specimens and material samples, for example in the UF160Suitable forModelSizeInterior volume (l)IF110bw110108IF110110108IN110plus110108UF110110108UN110pa110108UN160pa160161IF160160161IN160160161IF110plus110108IF160plus160161IN160plus160161UF110plus110108UN110110108UN110plus110108UF160160161UF160plus160161UN160160161UN160plus160161IN110110108IPP110eco110108IPP110ecoplus110108HPP110eco110108ICH110110108ICP110110108IN110m110108IN110mplus110108IF110m110108IF110mplus110108IN160m160161IN160mplus160161IF160m160161IF160mplus160161UN110m110108UN110mplus110108UF110m110108UF110mplus110108UN160m160161UN160mplus160161UF160m160161UF160mplus160161UF160TS160161Technical detailsMaterialStainless steelLoad per shelf according to Memmert20 kgScope of delivery1 stainless steel perforated trayIndividual requirements & procurement serviceFor grids, further perforated trays and drip trays, and for questions about compatibility with older Memmert units, our procurement service accepts enquiries.
