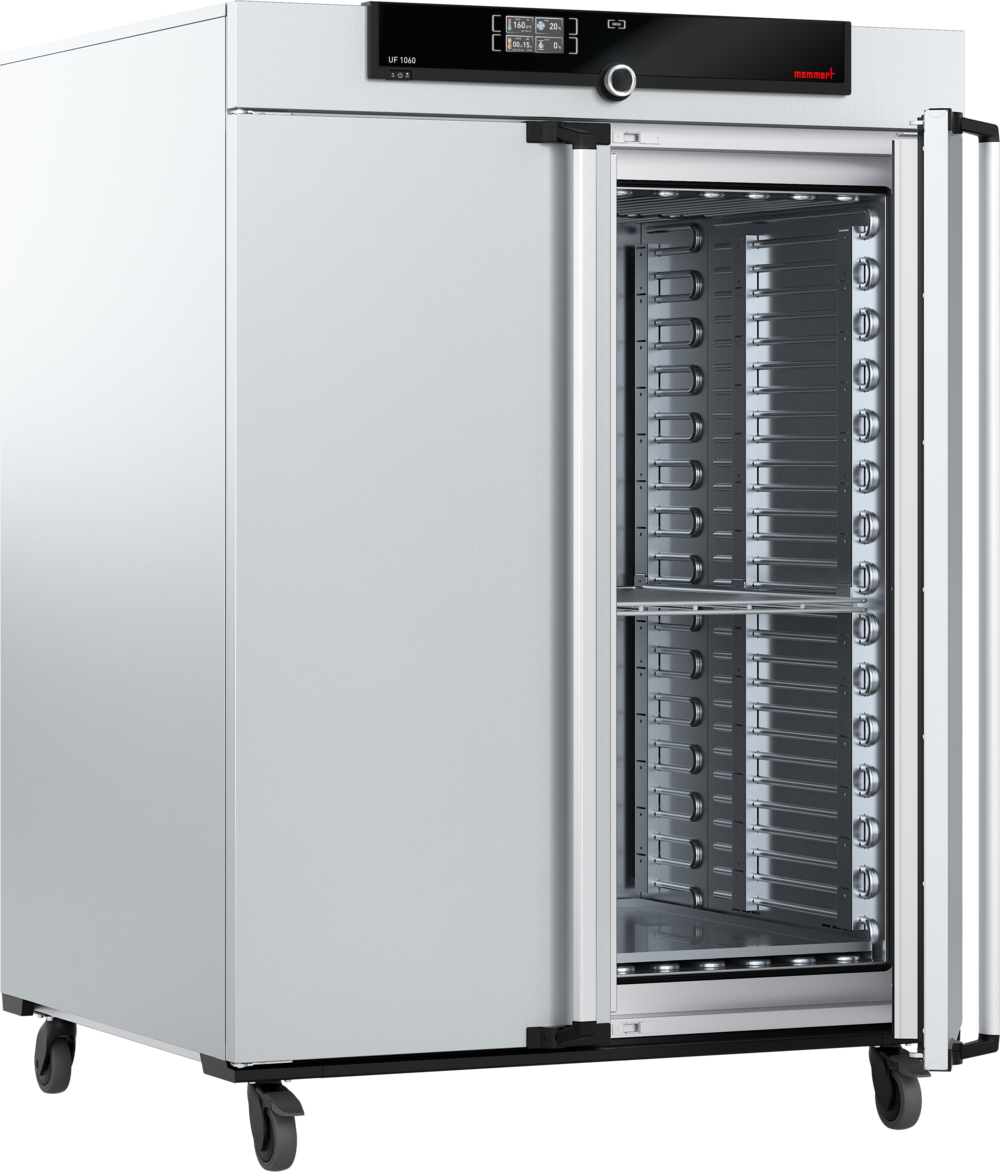

Memmert UF1060 Universal Oven, 1060 litres, forced-air circulation, 300 °C, SingleDISPLAY

Precise temperature control on a large scale: the Memmert UF1060

The Memmert UF1060 universal chamber is the large-capacity solution for laboratories and industrial applications requiring ample space and the highest temperature accuracy. With a massive internal capacity of 1,060 litres and proven forced-air technology, it is perfectly suited to drying processes, ageing tests or the curing of large batches or bulky components.

Forced air for uniform temperature distribution

Unlike units with natural convection, the UF1060 uses a quiet yet powerful air turbine fan to ensure rapid and uniform heat distribution throughout the entire interior. This significantly reduces process times and guarantees that the same conditions prevail at every point within the chamber – essential for quality-related tests in accordance with DIN 12880:2007-05.

Intuitive operation & durability

The chamber is controlled via the SingleDISPLAY with a high-resolution TFT touchscreen. Here, temperature, damper position (for fresh air supply) and programme durations can be set intuitively. The housing and interior are made of high-quality, stainless steel (1.4301), which is scratch-resistant, robust and easy to clean. Thanks to the 4-point adjustment, the control range can be tailored even more precisely to your application.

Technical specifications at a glance:

• Model: UF1060 (convection / forced air)
• Volume: 1060 litres
• Temperature range: Min. 10 °C above room temperature to +300 °C
• Control accuracy: up to 99.9 °C: 0.1 K / from 100 °C: 0.5 K
• Voltage: 400 V, 3-phase, 50/60 Hz (high-voltage connection required!)
• Max. load: 300 kg (total unit) / 60 kg (per shelf)
• Internal dimensions (W x D x H): 1040 x 850 x 1200 mm
• External dimensions (W x D x H): 1224 x 1035 x 1720 mm

Contents of delivery:

• 1x Memmert UF1060 universal cabinet
• 1x SingleDISPLAY control unit (integrated)
• 2x stainless steel grates (electropolished)
• 1x factory calibration certificate (at +160 °C)
• Operating instructions

Accessories & Service:

Do you require additional grating panels (B29725), a feed-through opening or the AtmoCONTROL software? Please make use of our bespoke procurement service if you cannot find the right accessories directly in the shop.
