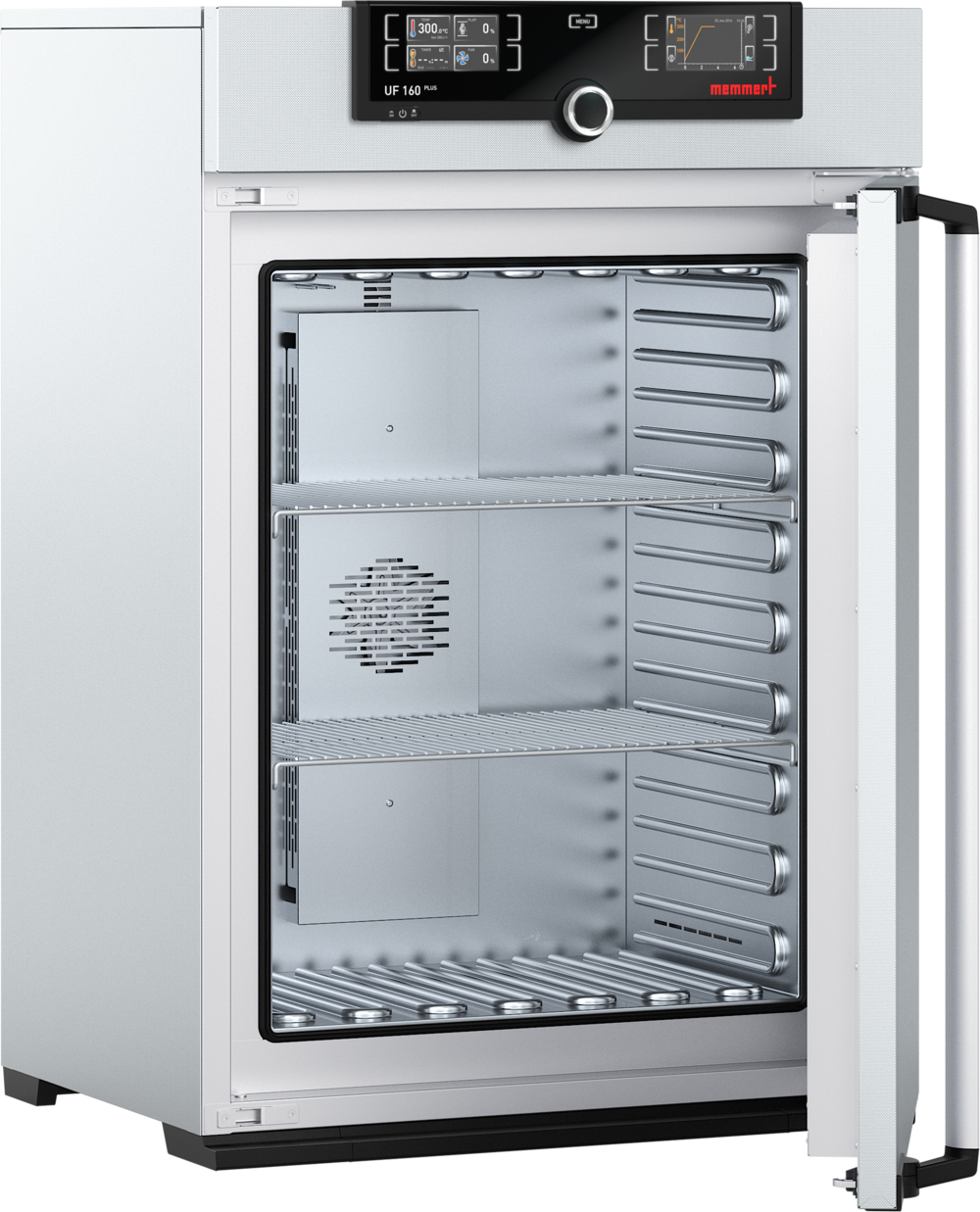

Memmert UF160plus Universal Oven, 161 litres, TwinDISPLAY, 300 °C

The versatile laboratory all-rounder: Memmert UF160plus

The Memmert UF160plus universal cabinet is the perfect mid-sized solution for laboratories that require more capacity but do not want to waste floor space. With an internal capacity of 161 litres and powerful forced-air circulation, it provides optimal conditions for the precise drying, ageing or heating of samples. Thanks to its high-quality stainless steel design, it is hygienic, robust and durable.

TwinDISPLAY: High-end control system for professionals

Equipped with the innovative TwinDISPLAY, the UF160plus sets new standards in operation. Two high-resolution TFT touchscreens enable the intuitive programming of complex temperature profiles and ramps. You can individually adjust fan speed, air damper position and heating power (HeatBALANCE). In addition, two separate Pt100 sensors ensure redundant temperature monitoring and maximum process reliability.

Safety and Documentation

The “Plus” version is ideal for laboratories with high documentation requirements: all process data is recorded in full (data logger) and can be downloaded via USB or Ethernet. The AutoSAFETY function reliably protects your batch from overheating by triggering an automatic alarm and switching off the heating in the event of tolerance deviations.

Detailed technical specifications:

• Model: UF160plus (convection / forced air)
• Volume: 161 litres
• Temperature range: Min. 10 °C above room temperature up to +300 °C
• Control system: TwinDISPLAY (2x TFT touchscreens, programmable)
• Internal dimensions (W x D x H): 560 x 400 x 720 mm
• External dimensions (W x D x H): 745 x 584 x 1104 mm
• Electrical connection: 230 V, 50/60 Hz
• Power consumption: approx. 3200 W (Please check fuse rating!)
• Max. load: 210 kg (unit total) / 20 kg (per drawer)

Contents of delivery:

• 1x Memmert UF160plus universal cabinet
• 2x stainless steel wire shelves (electropolished)
• 1x factory calibration certificate (at +160 °C)
• 1x USB stick (including AtmoCONTROL software)
• Operating instructions

Accessories & Service:

Do you require additional inserts, a wall bracket or qualification documentation (IQ/OQ)? Please make use of our bespoke procurement service if you cannot find the accessories you require directly in the shop.
