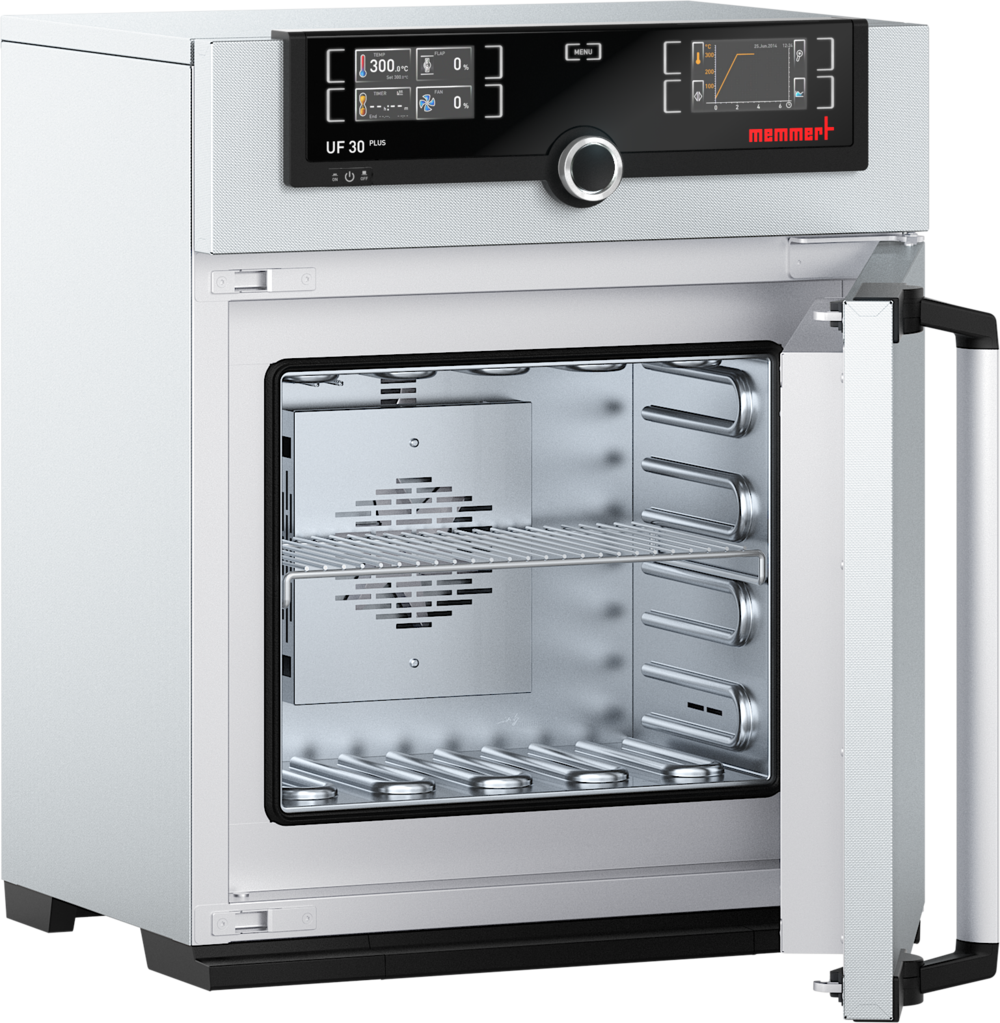

Memmert UF30plus universal cabinet, 32 litres, TwinDISPLAY, 300 °C

Compact precision for the most demanding requirements: Memmert UF30plus

The Memmert UF30plus universal oven is the most compact model in the range and, with an internal capacity of 32 litres, offers the ideal solution for smaller laboratories or workstations with limited space. Despite its small size, it makes no compromises when it comes to performance: the efficient forced-air technology, powered by a quiet fan, ensures rapid, uniform temperature distribution and noticeably shortens drying processes.

TwinDISPLAY: High-end control in the smallest of spaces

As a ‘Plus’ model, the UF30plus is equipped with the advanced TwinDISPLAY. Using two high-resolution TFT touchscreens, you can effortlessly programme complex temperature profiles and individually adjust the fan speed and air damper. The integrated HeatBALANCE function allows the distribution of heating power between the upper and lower sections of the chamber to be precisely adjusted.

Maximum safety for sensitive samples

Continuous monitoring via two separate Pt100 sensors (Class A) guarantees redundant safety. If one sensor fails, the other takes over seamlessly. The AutoSAFETY system reliably protects your samples through visual and audible alarms, as well as automatic monitoring for over- and under-temperature conditions. The entire interior and the housing are made of scratch-resistant, easy-to-clean stainless steel.

Detailed technical specifications:

• Model: UF30plus (convection / forced air)
• Volume: 32 litres
• Temperature range: Min. 10 °C above room temperature up to +300 °C
• Control system: TwinDISPLAY (2x high-resolution TFTs, programmable)
• Internal dimensions (W x D x H): 400 x 250 x 320 mm
• External dimensions (W x D x H): 585 x 434 x 704 mm (depth excluding door handle)
• Electrical connection: 230 V, 50/60 Hz
• Power consumption: approx. 1600 W
• Max. load: 60 kg (unit total) / 20 kg (per drawer)

Contents of delivery:

• 1x Memmert UF30plus universal cabinet
• 1x stainless steel wire shelf (electropolished)
• 1x factory calibration certificate (at +160 °C)
• 1x USB stick (including AtmoCONTROL software)
• Operating instructions

Accessories & Service:

Do you require an additional grating or a special calibration certificate for other temperature points? Please use our bespoke procurement service if you cannot find the accessories you require directly in the shop.
