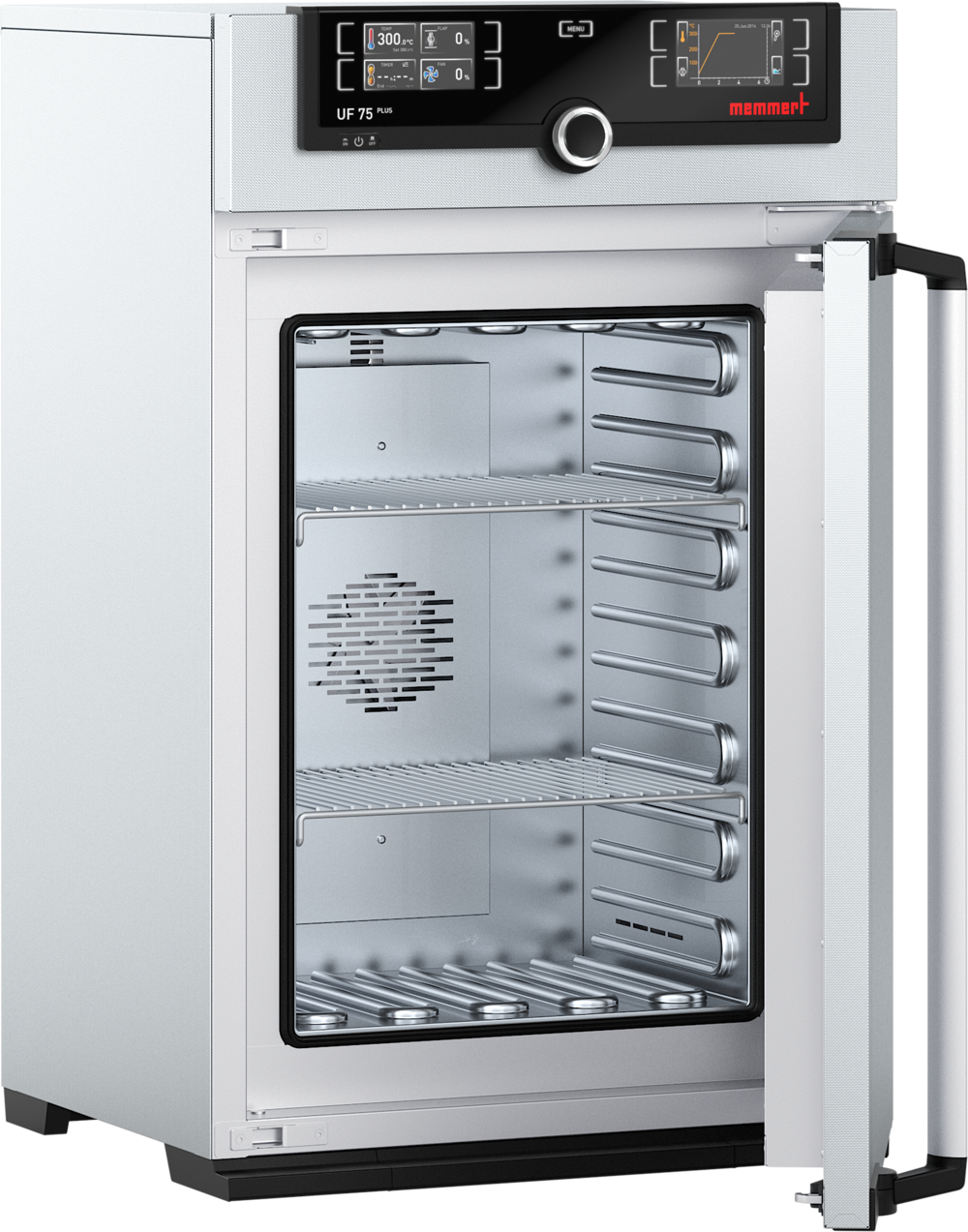

Memmert UF75plus Universal Oven, 74 litres, TwinDISPLAY, 300 °C

The versatile all-rounder for the laboratory: Memmert UF75plus

With an internal capacity of 74 litres, the Memmert UF75plus universal cabinet is an absolute classic in science, research and industrial materials testing. It offers the perfect balance between compact external dimensions and generous headroom. The high-performance forced-air technology ensures rapid, uniform and highly precise temperature distribution thanks to an electronically controlled fan.

TwinDISPLAY: Maximum control for complex processes

Equipped with the innovative TwinDISPLAY, this ‘Plus’ model enables intuitive operation via two high-resolution TFT touchscreens. Effortlessly create complex temperature ramps, control the fan speed in 10% increments and adjust the fresh air supply electronically. The integrated HeatBALANCE function also allows the heating power to be distributed specifically between the upper and lower sections of the cabinet to compensate for asymmetrical loads.

Redundant safety and comprehensive documentation

The entire interior (with all-round deep-drawn ribbing) and the housing are made from scratch-resistant, easy-to-clean stainless steel. Two independently operating Pt100 sensors (DIN Class A) ensure maximum reliability – if one sensor fails, the other takes over seamlessly. The AutoSAFETY system reliably protects your valuable samples. All process data can be logged in accordance with FDA regulations via the USB or Ethernet connection using the supplied AtmoCONTROL software.

Detailed technical specifications:

• Model: UF75plus (forced air)
• Volume: 74 litres
• Temperature range: Min. 10 °C above room temperature to +300 °C
• Control system: TwinDISPLAY (2x TFT touchscreens, fully programmable)
• Internal dimensions (W x D x H): 400 x 330 x 560 mm
• External dimensions (W x D x H): 585 x 514 x 944 mm (depth plus 56 mm door handle)
• Electrical connection: 230 V, 50/60 Hz
• Power consumption: approx. 2500 W
• Max. load: 120 kg (unit total) / 20 kg (per drawer)

Contents of delivery:

• 1x Memmert UF75plus universal cabinet
• 2x stainless steel wire shelves (electropolished)
• 1x factory calibration certificate (at +160 °C)
• 1x USB stick (including AtmoCONTROL software)
• Operating instructions

Accessories & Service:

Do you need additional grating panels, a wall bracket or a specific calibration? Please use our bespoke procurement service if you cannot find the accessories you require directly in the shop.
