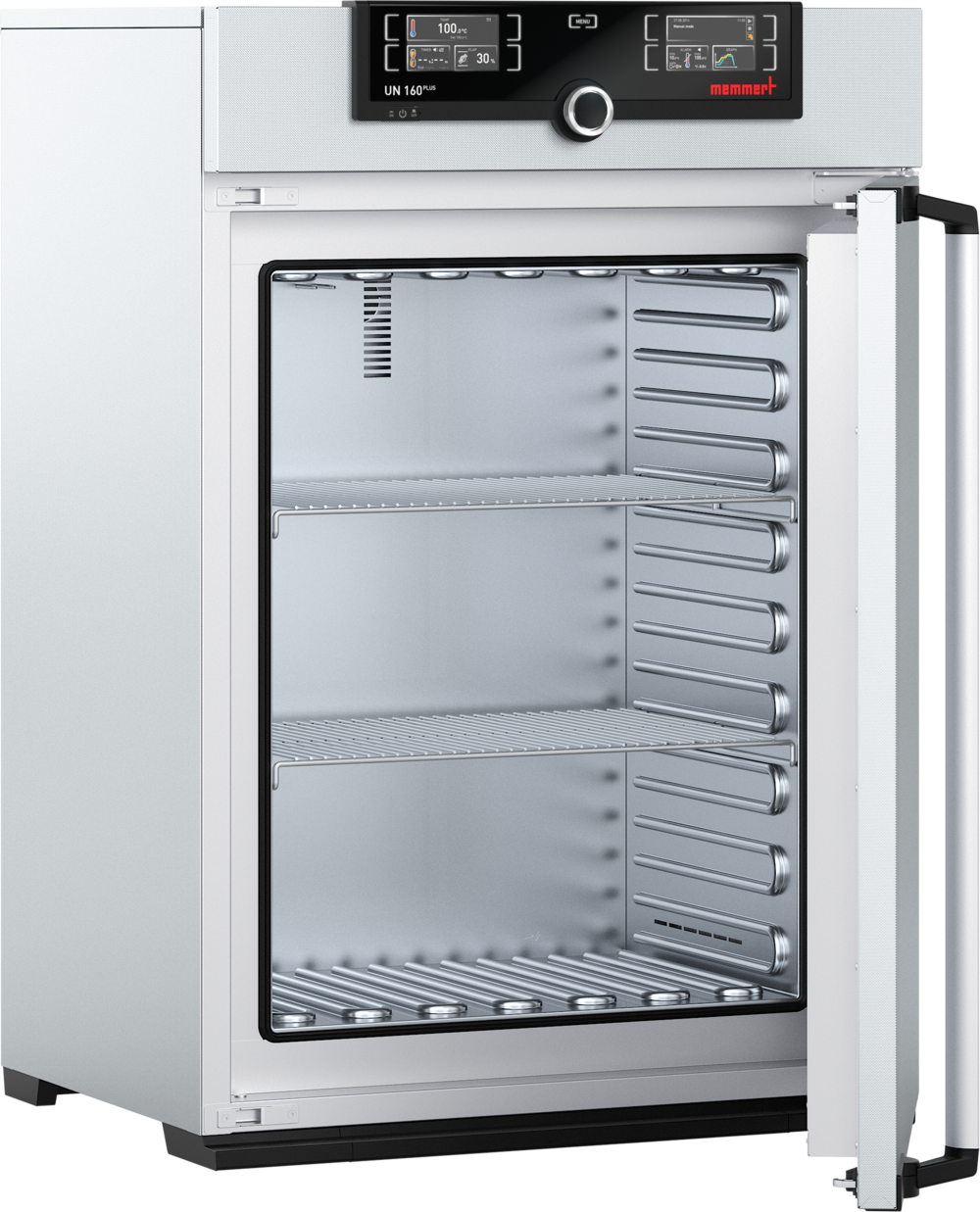

Memmert UN160plus Universal Oven, 161 litres, TwinDISPLAY, natural convection, 300 °C

Turbulence-free precision meets high-end control: Memmert UN160plus

The Memmert UN160plus universal oven combines a generous internal capacity of 161 litres with maximum process control for sensitive applications. As the unit operates using natural convection (without a fan), heat transfer takes place completely free of turbulence. This makes the UN160plus the first choice for gentle drying, ageing or temperature control of fine powders, light granulates, paper or biological samples, which could be stirred up by an air flow or dry out too quickly on the surface.

TwinDISPLAY: Intuitive programming for demanding processes

Despite the gentle heating, the ‘Plus’ version offers full programmability. Complex temperature ramps and process cycles can be created with ease via the TwinDISPLAY, which features two high-resolution TFT touchscreens. The electronically controlled exhaust air flap allows precise regulation of the fresh air supply in 10% increments. A particular highlight is the HeatBALANCE function: this allows you to adjust the heating output specifically between the upper and lower sections of the chamber, for example to compensate for asymmetrical loads.

Redundant safety and comprehensive documentation

Two independently operating Pt100 sensors (DIN Class A) continuously monitor the temperature. If one sensor fails, the second takes over control seamlessly. The integrated AutoSAFETY system reliably protects your valuable samples through visual and audible alarms, as well as automatic heating shutdown in the event of deviations. All process data is stored in the internal data logger and can be read out via USB or Ethernet using the supplied AtmoCONTROL software, which is FDA-compliant (GMP/GLP).

Detailed technical specifications:

• Model: UN160plus (natural convection / fanless)
• Volume: 161 litres
• Temperature range: Min. 5 °C above room temperature to +300 °C
• Control system: TwinDISPLAY (2x TFT touchscreens, fully programmable)
• Internal dimensions (W x D x H): 560 x 400 x 720 mm
• External dimensions (W x D x H): 745 x 584 x 1104 mm (depth plus 56 mm door handle)
• Electrical connection: 230 V, 50/60 Hz
• Power consumption: approx. 3200 W (Please ensure there is adequate circuit protection at the installation site!)
• Max. load: 210 kg (unit as a whole) / 20 kg (per drawer)

Contents of delivery:

• 1x Memmert UN160plus universal cabinet
• 2x stainless steel grates (electropolished)
• 1x factory calibration certificate (at +160 °C)
• 1x USB stick (including AtmoCONTROL software)
• Operating instructions

Accessories & Service:

Do you require additional grids, a drip tray or qualification documentation (IQ/OQ)? Please make use of our bespoke procurement service if you cannot find the accessories you require directly in the shop.
