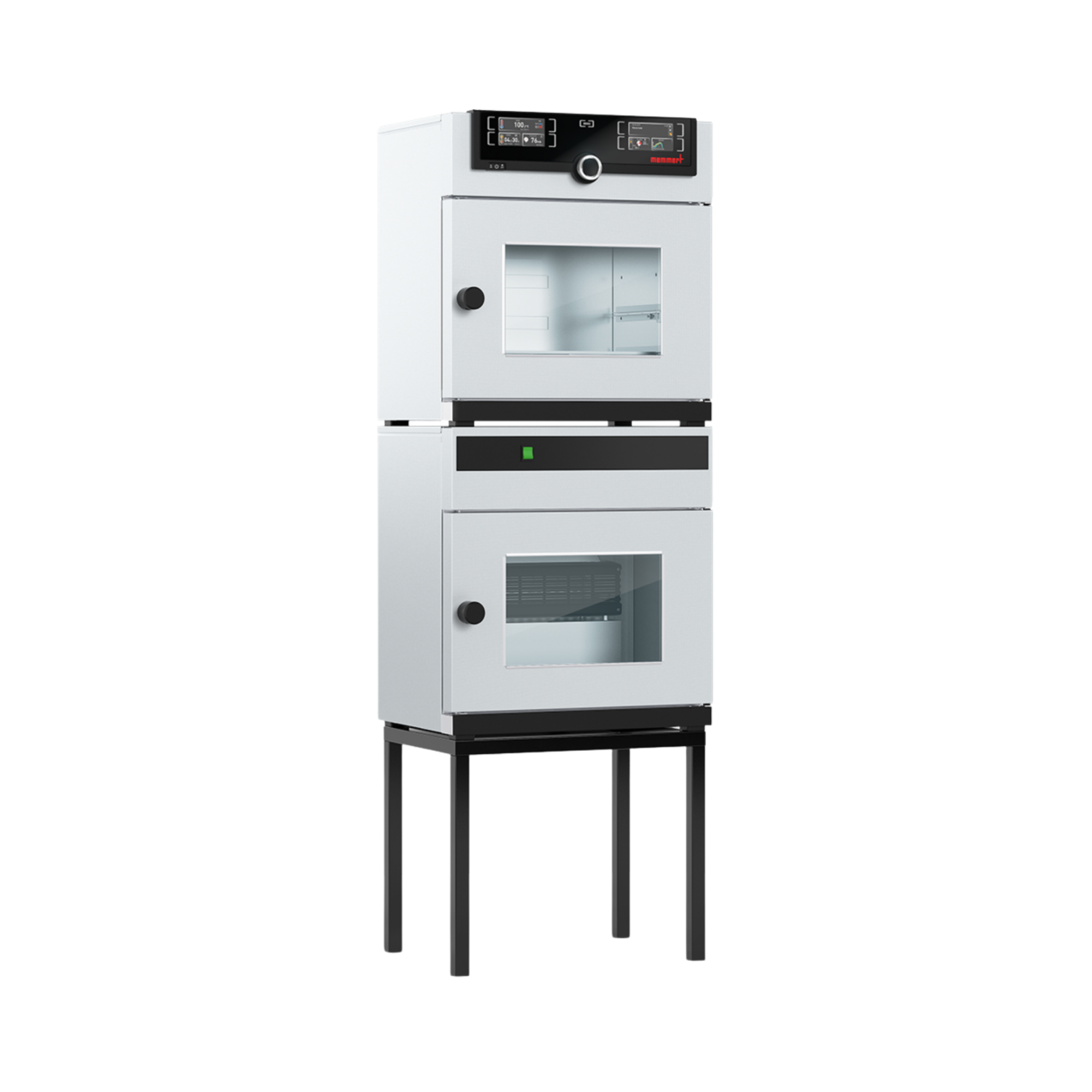

Memmert VO29 vacuum oven, 29 L, +200°C, with digital pressure control

The Memmert VO29 vacuum oven offers ultra-fast and gentle drying processes with the highest precision. With a capacity of 29 litres and a temperature range up to +200 °C, this unit is specifically designed for drying sensitive materials such as foodstuffs, cosmetics, granules, printed circuit boards or injection moulds.

Direct heating via thermal plates

At the heart of the VO29 is the intelligent direct heating system using patented heating plates. The heating elements are integrated directly into the structural panels, ensuring that heat is transferred directly to the sample without any loss. This not only guarantees the shortest possible heating times but also prevents heat loss and the formation of condensation on the inner walls.

Precise vacuum and pressure control

The digital electronic pressure control allows settings from 5 to 1100 mbar. Thanks to the programmable, speed-controlled pump control, purging processes are optimised and diaphragms are protected. This enables significant energy savings of around 70% compared to unregulated systems.

High-End Operation: ControlCOCKPIT TwinDISPLAY

Control is via the intuitive TwinDISPLAY, featuring two high-resolution TFT colour graphic displays. Here, temperature, pressure and programme durations can be set precisely. Features such as Multi-Level Overtemperature Protection (MLOP) monitor each heating plate separately and ensure maximum safety.

Technical details

• Model: Memmert VO29
• Capacity: 29 litres
• Temperature range: +20 °C to +200 °C
• Operating temperature range: Min. 5 °C above room temperature to +200 °C
• Vacuum range: 5 to 1100 mbar
• Pressure control: Digital electronic, programmable
• Inner chamber: Stainless steel 1.4404 (ASTM 316L), hermetically welded
• Housing: Textured stainless steel, rear panel fully galvanised
• Internal dimensions (W x H x D): 385 x 305 x 250 mm
• External dimensions (W x H x D): 550 x 607 x 400 mm (depth +38 mm for door handle)
• Control system: TwinDISPLAY (2x TFT touchscreen)
• Max. load: 40 kg total / 20 kg per shelf
• Shelves: 1 insulated shelf included, max. 2 possible
• Interfaces: Ethernet LAN, USB
• Voltage / Power: 230 V, 50/60 Hz / approx. 420 W
• Final vacuum: 0.01 mbar (permissible)

Scope of delivery

• Memmert VO29 vacuum oven (basic unit)
• 1 x aluminium heat-insulating plate (anodised) with integrated heating element
• 1 x factory calibration certificate (for +160 °C at 20 mbar)
• Interface cable / USB stick (AtmoCONTROL software)

Customised requirements & procurement service

Do you require the appropriate pump module (PM29) for the base unit, additional heating plates (aluminium or stainless steel) or a vacuum pump? We will configure your vacuum system precisely to your requirements. Take advantage of our bespoke procurement service for accessories and complete solutions.
