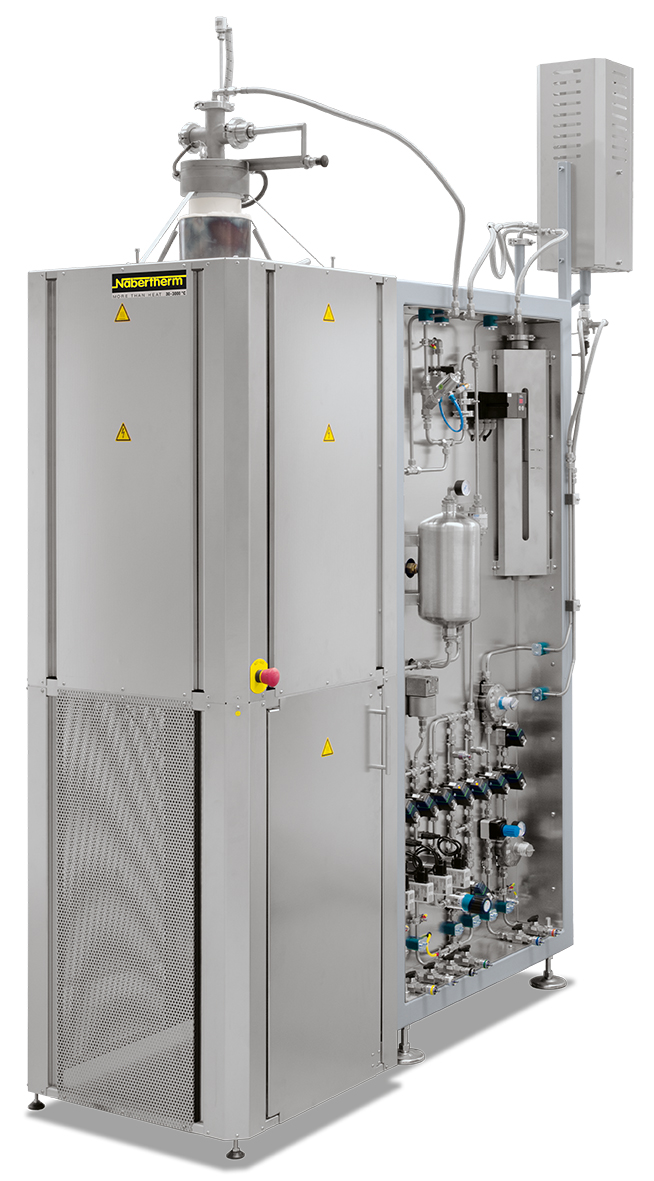

Nabertherm RHTV 120/600/17/P570 vertical high-temperature furnace, Tmax 1700°C, #RV322V72AN
€27,075.00
Accessories and spare parts are available on request!
Product information "Nabertherm RHTV 120/600/17/P570 vertical high-temperature furnace, Tmax 1700°C, #RV322V72AN"
Nabertherm RHTV 120/600/17/P570 vertical high-temperature furnace, Tmax 1700°C, #RV322V72AN
Technical data:
Model: RHTV 120/600/17
Max. temperature: 1700°C (Specified outside the tube. Difference from the temperature inside the tube up to +50 K
) External dimensions: 680 mm x 700 mm x 1580 mm (WxDxH) --> Height excluding tube; external dimensions vary for versions with additional equipment. Dimensions available on request.
Max. external tube diameter: 120 mm
Heated length: 600 mm
Length at constant temperature ± 5 K: 170 mm
Tube length: 830 mm
Max. connected load: 19.4 kW
Electrical connection: 3-phase (heating between two phases only)
Weight: 110 kg
Many further configurations and accessory options are available on request!
