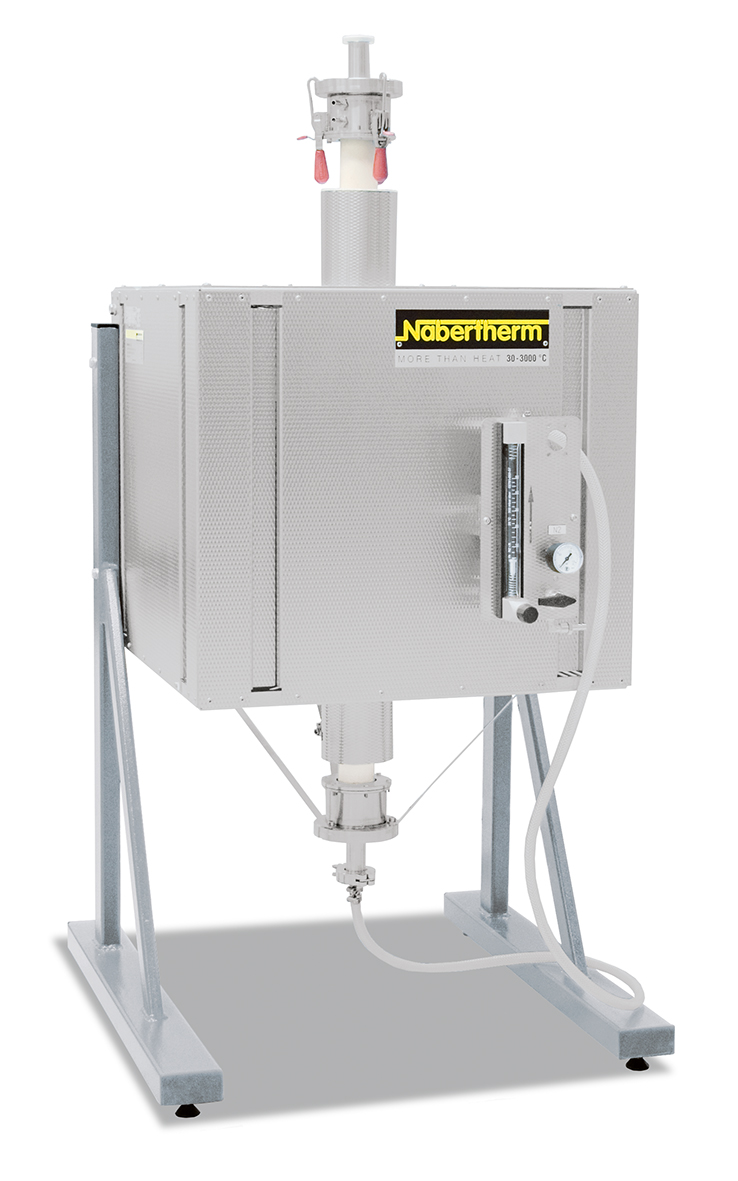

Nabertherm RHTV 50/150/17/P570 Vertical High-Temperature Furnace, Tmax 1700°C, #RV152V72AN
€18,879.00
Accessories and spare parts are available on request!
Product information "Nabertherm RHTV 50/150/17/P570 Vertical High-Temperature Furnace, Tmax 1700°C, #RV152V72AN"
Nabertherm RHTV 50/150/17/P570 Vertical High-Temperature Furnace, Tmax 1700°C, #RV152V72AN
Technical data:
Model: RHTV 50/150/17
Max. temperature: 1700°C (Specified outside the tube. Difference from the temperature inside the tube up to +50 K
) External dimensions: 610 mm x 700 mm x 1130 mm (WxDxH) --> Height excluding tube; external dimensions vary for versions with additional equipment. Dimensions available on request.
Max. external tube diameter: 50 mm
Heated length: 150 mm
Length at constant temperature ± 5 K: 30 mm
Tube length: 380 mm
Max. connected load: 5.8 kW
Electrical connection: 3-phase (heating between two phases only)
Weight: 70 kg
Many other configurations and accessory options are available on request!
