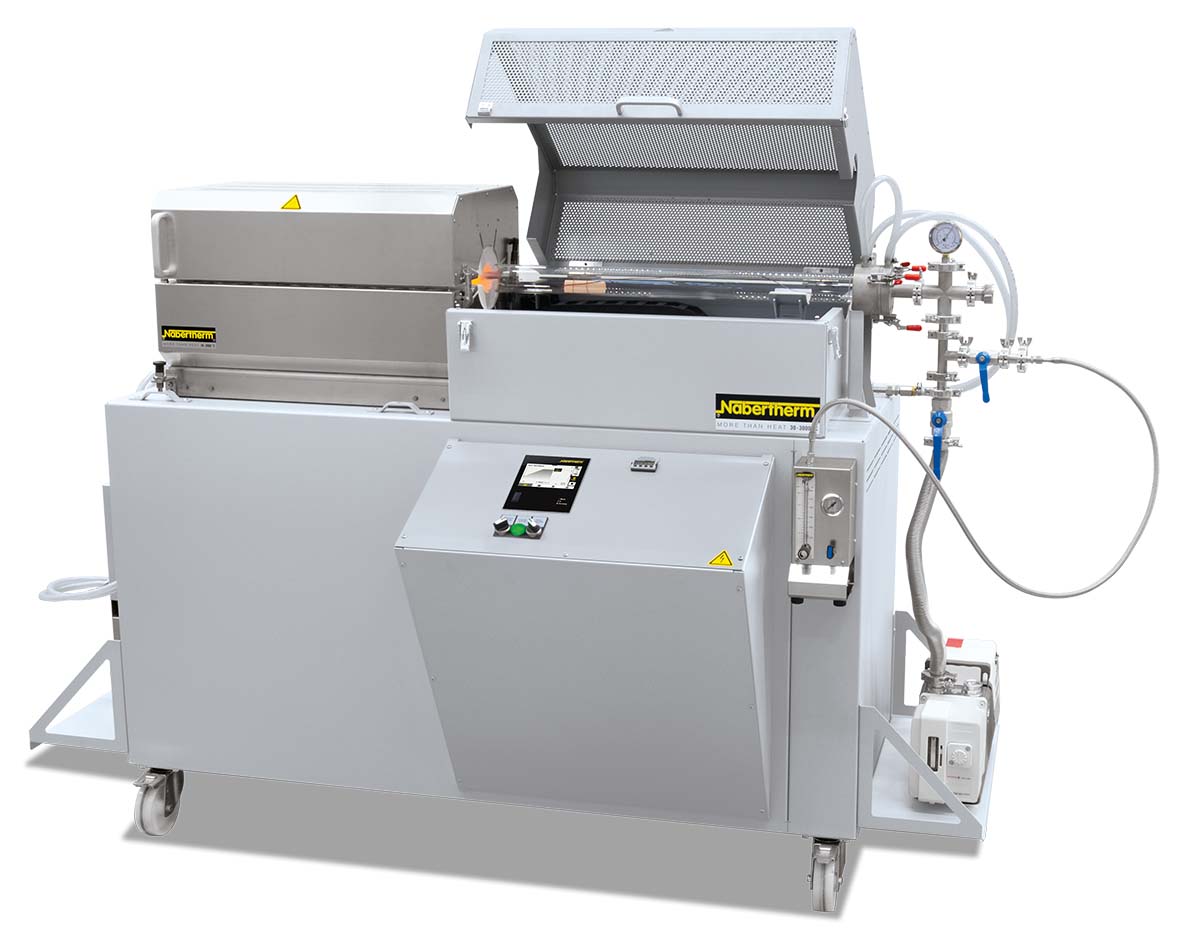

Nabertherm RSH 120/500/11/B510 hinged tube furnace, Tmax 1100°C, #RS33O1B
€6,656.00
Accessories and spare parts are available on request!
Product information "Nabertherm RSH 120/500/11/B510 hinged tube furnace, Tmax 1100°C, #RS33O1B"
Nabertherm RSH 120/500/11/B510 hinged tube furnace, Tmax 1100°C, #RS33O1B
Technical data:
Model: RSH 120/500/11
Max. temperature: 1100°C (measured outside the tube; difference from the temperature inside the tube up to +50K
) External dimensions: 670mm x 450mm x 580mm (WxDxH) --> width excluding tube; External dimensions vary for versions with additional equipment. Dimensions available on request.
Max. external tube diameter: 120 mm
Heated length: 500 mm
Length at constant temperature ± 5 K: 170 mm (single-zone) or 250 mm (three-zone)
Tube length: 850 mm
Max. Connected load: 6.6 kW
Electrical connection: 3-phase (a neutral conductor is required for the three-zone version (3/N/PE))
Weight: 46 kg
Many other configurations and accessory options are available on request!
