Restek Allure Silica LC Column, 5 µm, 60 Å, 250 x 2.1 mm, 9160572
€714.00
% Manufacturer's RRP: €793.00 9% below manufacturer's RRP
- Normal-phase column with spherical type B silica, 5 µm, 60 Å
- Specific surface area 450 m²/g, USP L3
- 250 mm length, 2.1 mm inner diameter
- Suitable for MOSH/MOAH analysis according to EN 16995
- pH 2.5 to 8.0, up to 80 °C
Product information "Restek Allure Silica LC Column, 5 µm, 60 Å, 250 x 2.1 mm, 9160572"
The Allure Silica is a normal-phase column for separations of small molecules, 250 mm long, 2.1 mm inner diameter, with 5 µm particles (USP L3). It is suitable for MOSH/MOAH analysis according to EN 16995.
Phase and particles

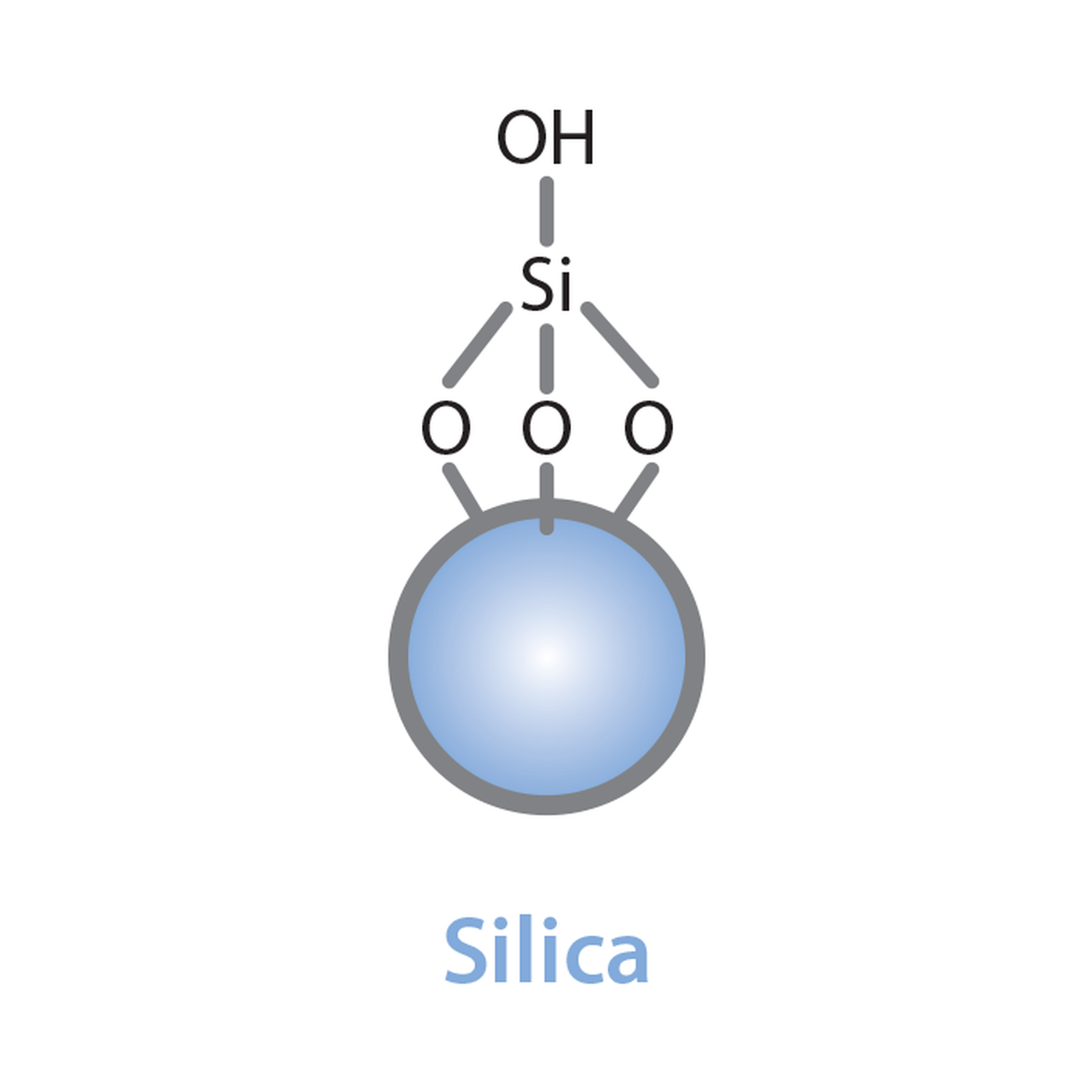

The packing consists of type B silica with a very large surface area of 450 m²/g. The particles are spherical, fully porous and 5 µm in size, and the pores measure 60 Å. The phase is highly retentive and designed for normal-phase separations.
MOSH/MOAH analysis according to EN 16995
Within the Allure Silica series, part number 9160572 is intended for MOSH/MOAH analysis according to EN 16995. The standard describes the analytical method, and the column is suitable for it. It combines the highly retentive silica phase with spherical 5 µm particles in the format 250 x 2.1 mm.
Normal phase and limits of use
The Allure Silica is not designed for purely aqueous mobile phases. The pH range is 2.5 to 8.0, and the maximum operating temperature is 80 °C. Comparable phases from other manufacturers are Phenomenex LiChrospher Si-60 and Maxsil Si. For reversed-phase separations with aqueous eluents, the Ultra Aqueous C18, for example, is a good choice.
Choosing among the three HPLC columns
At 250 mm, the Allure Silica is considerably longer than the Ultra Aqueous C18 and the Force Biphenyl. The inner diameter of 2.1 mm is the same for all three columns.
| Allure Silica | Ultra Aqueous C18 | Force Biphenyl | |
| Separation mode | Normal phase | Reversed phase | Reversed phase |
| Length | 250 mm | 100 mm | 100 mm |
| Particle size | 5 µm | 3 µm | 1.8 µm |
| pH range | 2.5 to 8.0 | 2.5 to 8.0 | 2.0 to 8.0 |
| Usable with 100 % aqueous | No | Yes | Yes |
Accessories for automated systems
For compatibility with automated systems such as those from Axel Semrau, the Trident column protection system (level 3) and an Allure Silica guard cartridge are additionally recommended. LT procures both on request together with the column.
Typical applications
- MOSH/MOAH analysis according to EN 16995, for which this part number is intended within the Allure Silica series
- Normal-phase separations of small molecules where a highly retentive silica phase is required
- Methods that do not use a purely aqueous mobile phase
Technical details
| Phase | Silica (silicon dioxide), type B silica |
| Series | Allure Silica |
| Packaging unit | 1 piece |
| Separation mode | Normal phase |
| USP designation | L3 |
| Particle size | 5 µm |
| Particle type | fully porous |
| Particle shape | spherical |
| Pore size | 60 Å |
| Specific surface area | 450 m²/g |
| Length | 250 mm |
| Inner diameter | 2.1 mm |
| Molecule size | small molecules |
| pH range | 2.5 to 8.0 |
| Maximum temperature | 80 °C |
| Usable with 100 % aqueous | No |
Scope of delivery
1 column (packaging unit 1 piece).
Individual requirements and procurement service
Restek offers the Allure series and further HPLC phases in many lengths, inner diameters and particle sizes, plus guard cartridges and column protection systems. LT procures these on request, including by Restek part number. Anyone working with automated systems for MOSH/MOAH analysis is best advised to clarify column protection and cartridge together with the column.
