Restek Force Biphenyl LC Column, 1.8 µm, 100 Å, 100 x 2.1 mm, 9629212

Restek Ultra Aqueous C18 LC-Säule, 3 µm, 100 Å, 100 x 2,1 mm

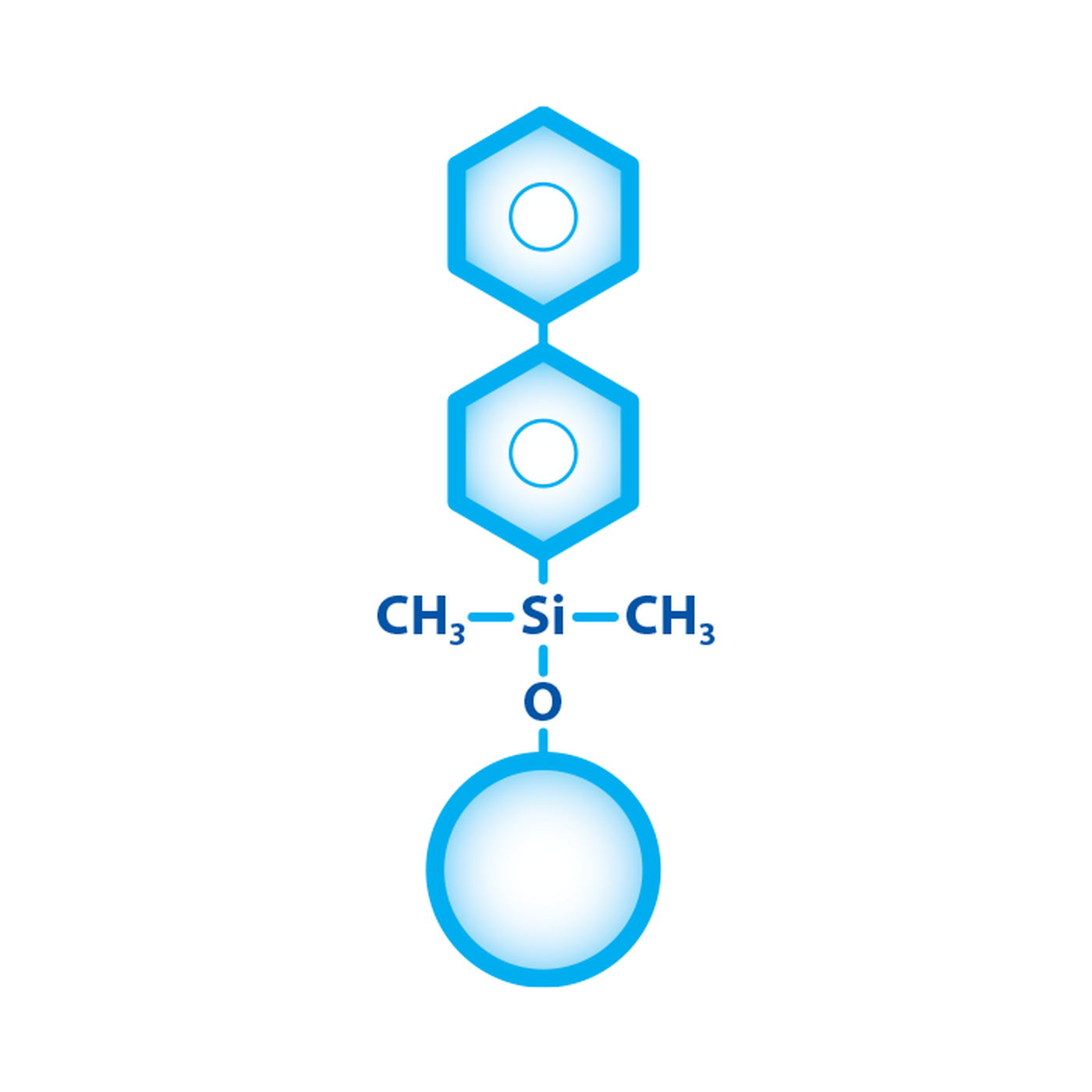

Restek Force Biphenyl LC-Säule, 1,8 µm, 100 Å, 100 x 2,1 mm, Strukturformel der stationären Phase

€734.00

% €814.50 9% below manufacturer's RRP

Product number: lt-9689

Short description

Biphenyl phase (USP L11), 1.8 µm fully porous, 100 Å
100 x 2.1 mm, endcapped, aqueous-compatible
Maximum pressure 1,034 bar, recommended maximum pressure 830 bar for maximum service life
pH 2.0 to 8.0, up to 80 °C
Use: drug and metabolite analyses, biomarkers, mycotoxins, pesticides

Product information "Restek Force Biphenyl LC Column, 1.8 µm, 100 Å, 100 x 2.1 mm, 9629212"

The Force Biphenyl is a reversed-phase column with a biphenyl phase (USP L11) and 1.8 µm fully porous particles. It provides increased selectivity and retention for compounds that are difficult to resolve on C18 columns and other phenyl phases or that elute early.

Phase and particles

The pores measure 100 Å, the specific surface area is 300 m²/g and the carbon content 15 %. The phase is endcapped and aqueous-compatible. The column is designed for small molecules, the pH range is 2.0 to 8.0 and the maximum operating temperature is 80 °C.

MS-friendly mobile phases

The phase limits ionisation suppression and allows simple, MS-friendly mobile phases. This is important for methods with mass spectrometric detection.

Maximum pressure and recommended pressure

The maximum pressure of the column is 1,034 bar (15,000 psi). For maximum service life with 1.8 µm particles, a pressure of at most 830 bar (12,000 psi) is recommended. The HPLC or UHPLC system should cover the operating pressure of the method.

Dimensions compared

At 100 x 2.1 mm, the column has the same dimensions as the Ultra Aqueous C18, but 1.8 instead of 3 µm particles, a different phase and a somewhat wider pH range. At 250 mm length and 5 µm particles, the Allure Silica is a normal-phase column with a different separation mode.

	Force Biphenyl	Ultra Aqueous C18	Allure Silica
Phase	Biphenyl	C18	Silica
Particle size	1.8 µm	3 µm	5 µm
Length x inner diameter	100 x 2.1 mm	100 x 2.1 mm	250 x 2.1 mm
pH range	2.0 to 8.0	2.5 to 8.0	2.5 to 8.0
Usable with 100 % aqueous	Yes	Yes	No

Short profile

The part number suits methods that need additional selectivity compared with a C18, run with MS detection and are intended for a 100 x 2.1 mm format with 1.8 µm particles.

Ordering and dimension

Part number 9629212 stands for the dimension 100 x 2.1 mm with 1.8 µm particles. Further dimensions of the Force Biphenyl have their own part numbers.

Typical applications

Bioanalytical tests such as drug and metabolite analyses
Analyte classes: diagnostic biomarkers, drugs and pharmaceuticals, mycotoxins, pesticides
Compounds that elute early on C18 phases or are difficult to resolve

Technical details

Phase	Biphenyl, Force
Packaging unit	1 piece
Separation mode	Reversed phase
USP designation	L11
Particle size	1.8 µm
Particle type	fully porous
Pore size	100 Å
Specific surface area	300 m²/g
Carbon content	15 %
Endcapping	Yes
Length	100 mm
Inner diameter	2.1 mm
Molecule size	small molecules
pH range	2.0 to 8.0
Maximum temperature	80 °C
Maximum pressure	1,034 bar (15,000 psi)
Recommended maximum pressure	830 bar (12,000 psi)
Aqueous-compatible	Yes

Scope of delivery

1 column.

Individual requirements and procurement service

Restek offers the Force series in further dimensions and particle sizes, plus other LC phases. For metal-sensitive components there are inert LC columns. LT procures columns and accessories on request, including by Restek part number.
