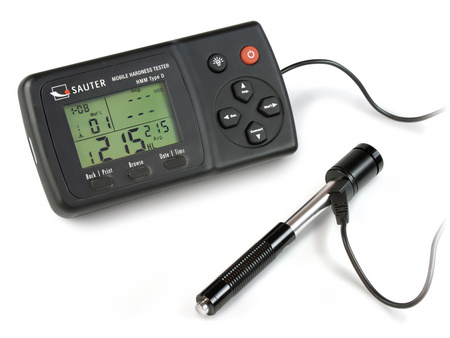

SAUTER Leeb hardness tester, HMM

SAUTER Leeb Hardness Tester #HMM

- Rebound sensor: The rebound module is propelled against the test specimen by a spring. Depending on the hardness of the specimen, the kinetic energy of the module is absorbed. The reduction in velocity is measured
and converted
into Leeb hardness values. - External rebound sensor (Type D) included
. - Portability: Compared to stationary benchtop units and hardness testers with an internal sensor, the SAUTER HMM offers maximum portability and flexibility –
Tests in all directions (360°) thanks to an automatic compensation function
– Hardness comparison block included (790 ± 40 HL)
—Internal data memory for up to 9 readings
—Mini-statistics function: Displays reading, average value, test direction, date and time—
Reading display: Rockwell (B and C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
—Automatic unit conversion: The measurement result is automatically converted into all the hardness
units listed—Infrared printer for direct output of measurement results included in the
scope of delivery—Supplied in a robust carrying case

Leeb measuring range 170 – 960
Readability of hardness [d] (Hlx) 1
Tolerance (% of [Max]) 1%
Units HL, HV, HB, HRB, HRC, MPa
Hardness scales HLD
Test specimen thickness [Min] 3 mm
Minimum test specimen weight [Min] 2 kg
Battery 3×1.5 V AAA
Memory
function Statistics function
Housing material Plastic
Probe diameter 2 cm
Probe length 14.6 cm
Test block included
Product family HMM
GTIN/EAN number 4045761139657

Accessories and spare parts are available on request!
