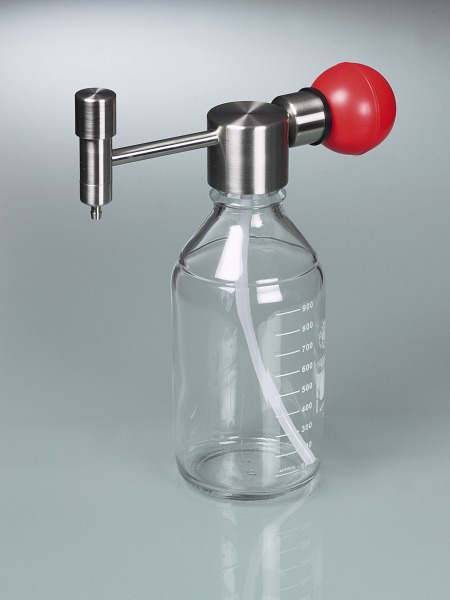

Bürkle, Mini solvent pump, 1.8 l/min, GL45 connection, #5603-4000

Mini Solvent Pump | Safe dispensing of small quantities

The Mini Solvent Pump is an extremely high-quality hand pump for small containers such as bottles, canisters and containers up to approx. 10 litres. For the safe dispensing and dosing of solvents and highly flammable liquids.

Simple principle – great results

The hand pump operates on the overpressure principle. Pressing the pump ball builds up overpressure inside the container, which forces the liquid out. This ensures that only the hose, feed tube and spout come into contact with the liquid being dispensed.

A pressure relief valve protects the solvent pump against excessive pressure build-up – for example, due to direct sunlight – ensuring safety.

High-quality materials

All parts of this hand pump that come into contact with the medium are made from high-quality, inert materials – PTFE and stainless steel (1.4301, 1.4404) – which are characterised by their excellent chemical resistance. The Mini solvent pump is therefore particularly well suited for use with high-purity liquids and highly flammable media, e.g. acetone, isopropanol, ethanol, methanol, etc.

Filling in potentially explosive atmospheres

The supplied earthing cable can be easily connected to the solvent pump via a spade connector; this dissipates electrostatic charges, allowing flammable media to be dispensed safely.

Flexible in use

The solvent pump can be used to fill from a wide variety of container sizes. The flexible PTFE hose, which draws the liquid from the container, can be cut to any length. This enables the container to be emptied completely, even in the case of bottles and canisters with a domed base.

The hand pump has a standard GL 45 connection thread. However, with the appropriate thread adaptors (accessories), it can be easily adapted for use with containers featuring S 40, GL 38 or GL 32 thread sizes.

Precise dispensing of the liquid

The self-closing spout (with auto-stop function) on the Mini solvent pump enables absolutely precise dispensing, with no dripping whatsoever. Thanks to the simple dosing mechanism, even the smallest containers, such as test tubes, can be filled without any problems. A hose (internal Ø 6 mm) can be optionally attached to the spout, allowing safe filling even into containers situated further away.

Perfectly balanced

The Mini solvent pump is particularly compact and very well balanced, enabling tilt-free dispensing even from small containers.

Robust and durable

Thanks to its robust design and high-quality materials, the durable Mini solvent pump enables consistently safe and clean filling in the simplest and most convenient way.

Ideal for 1–5 l containers

GL 45 connection thread

Parts in contact with the medium made from PTFE and stainless steel (1.4301, 1.4404)

PTFE hose (6x8 mm), 0.4 m

Includes 2 m earthing cable

Adapters for S 40, GL 38 and GL 32 available as accessories

Sterility: No
