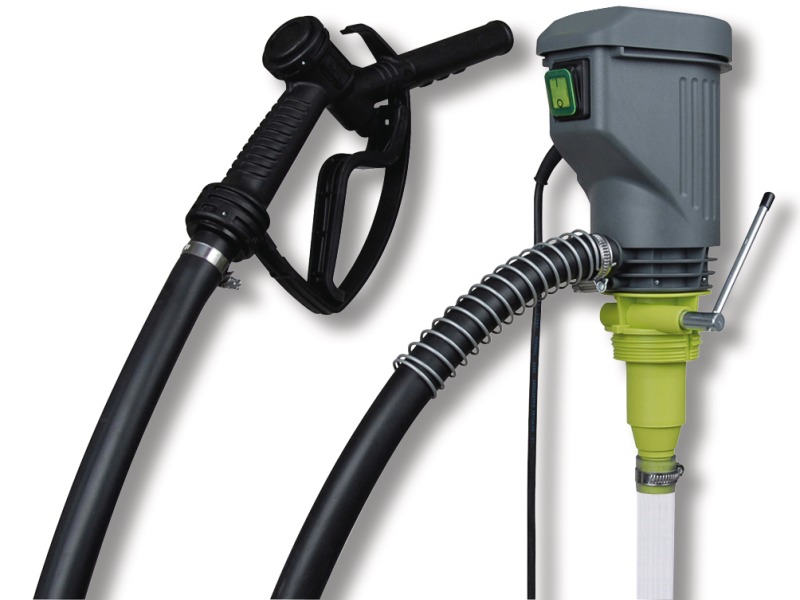

Bürkle, Petro electric drum pump, with standard dispensing nozzle, #5780-0040

A depot that regularly transfers diesel from a 200-litre drum into vehicles or EL heating oil into a tank needs a pump that does not have to be operated manually every time it is used. The Petro electric drum pump does exactly that: it dispenses diesel, EL heating oil, undiluted radiator antifreeze and other liquids classified as hazard class AIII (VbF) via a dispensing nozzle, powered by a 230 V mains socket.

Over-lift protection against leaks

An integrated anti-lift protection system interrupts the flow if the hose is damaged or breaks off, thereby preventing fuel from leaking uncontrollably. This is an essential safety feature for daily use on vehicles and machinery.

Standard or automatic dispensing nozzle

The pump is available with two types of nozzle. The standard nozzle is switched off manually and delivers a flow rate of around 38 l/min. The self-shutting-off automatic nozzle stops automatically as soon as the target tank is full – which is practical for frequent refuelling without constant supervision – and has a flow rate of around 32 l/min. Which variant is more suitable depends on whether a person is supervising the refuelling process throughout or is carrying out other tasks at the same time.

Reach and connection

With a submersion depth of 160 cm, the pump can reach the bottom of a 220-litre drum. The 4-metre-long outlet hose bridges the distance to the receiving container, whilst the suction head is approximately 2 metres water column. The connection is via an M 64x4 external thread, suitable for standard drum openings.

Not suitable for liquids containing water

The pump is expressly not suitable for liquids containing water or diluted liquids. Anyone who needs to transfer aqueous media as well as fuels will require a second, suitable pump unit for this purpose.

Flow meter as an accessory

For businesses wishing to document dispensed volumes, an electronic flow meter with totaliser and calibration facility is available as an accessory. The meter is uncalibrated and is therefore suitable for internal volume monitoring, but not for billing purposes subject to legal metrological requirements.

Use in everyday workshop operations

Whether refuelling construction machinery in the yard, topping up EL heating oil in the fuel storage room or transferring radiator antifreeze in the workshop: the pump remains mounted on its stand and is immediately ready for use via the dispensing nozzle, without having to fetch a separate unit for every task.

Electric drive instead of a hand-operated pump

Compared to a hand-operated pump, the electric drive eliminates the need for repeated manual pumping – a noticeable difference, particularly when refuelling several times a day. The operator simply holds the nozzle; the pump itself handles the delivery via the electric motor.

Threaded connection instead of hose connection

The connection via the M 64x4 external thread sits securely on the drum and prevents slipping during operation, unlike a simple push-fit connection. The thread fits standard 200-litre drums, such as those commonly used for diesel and EL heating oil.

Limitations of use

The pump is the right choice for fuels and mineral oils, but it is expressly not suitable for acids, alkalis or other chemicals. Anyone transferring both types of medium in the same facility will need two separate pumps to ensure that no residual medium enters the other application.

Typical applications

• Refuelling vehicles and machinery with diesel from a storage drum
• Transferring EL heating oil into tanks
• Pumping undiluted radiator antifreeze
• Depots, workshops and warehouses with regular fuel handling

Technical details

Overview of variants

Contents

• Petro electric drum pump with the selected dispensing nozzle

The electronic flow meter is not included and must be ordered separately.

Regulatory information

The Petro electric drum pump is an electrical appliance within the meaning of the ElektroG. Information on the return of end-of-life equipment can be found under ‘Environment and Disposal’.

Service and Procurement

The choice of dispensing nozzle for a particular application depends on the workflow at the workplace: continuous supervision by a single person favours the standard dispensing nozzle, whilst a frequently changing team tends to favour the automatic version. LT Laborhandel supplies both versions individually, along with the appropriate flow meter, and can also advise on alternatives where required, such as the manual drum pump for mineral oils for sites without a mains socket, or the mains-powered electric laboratory pump for acids and alkalis. If you have any queries regarding the appropriate pump for your specific medium, please contact LT Laborhandel for further assistance.
