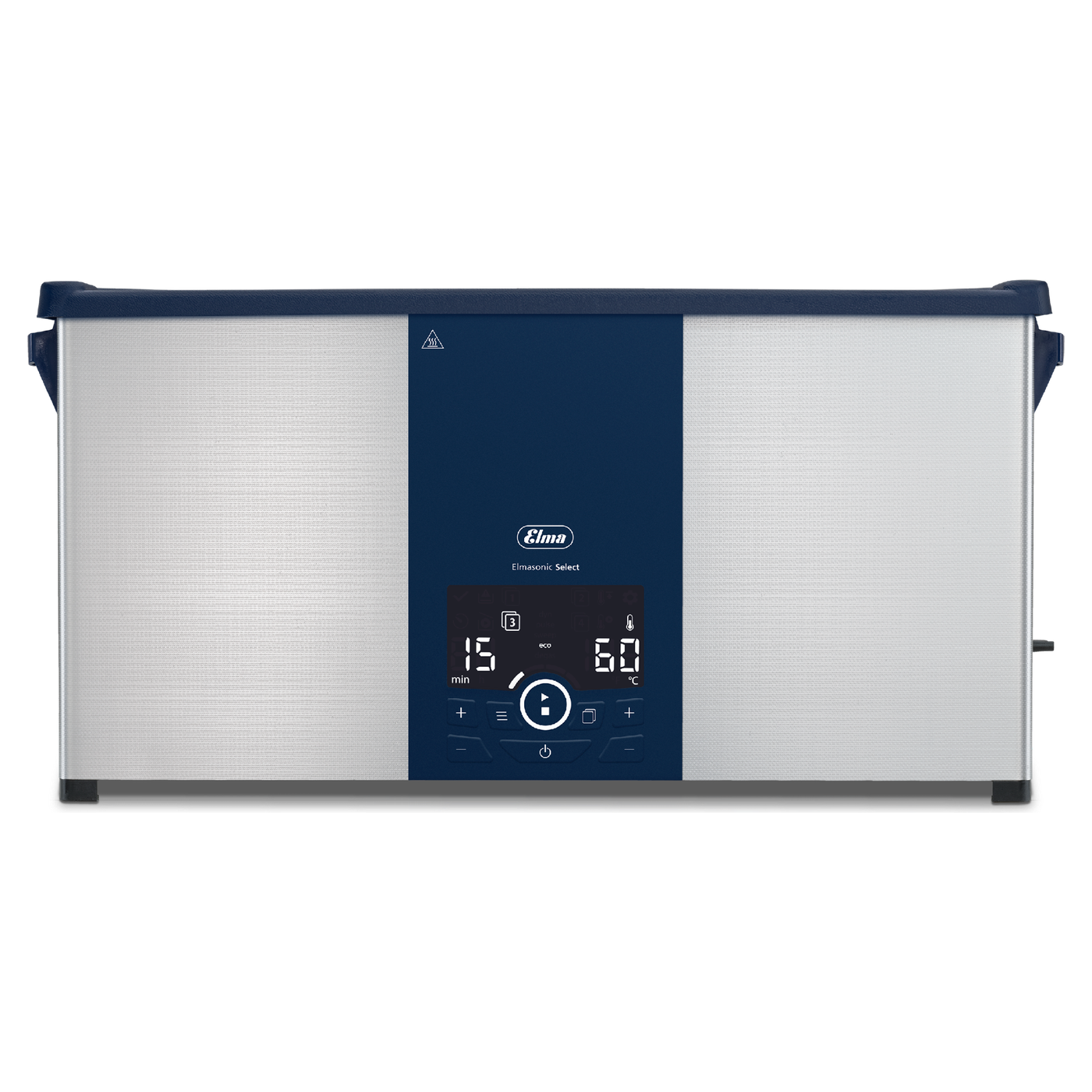

Elma Elmasonic Select 80 ultrasonic bath with heating, 9.3 litres, 37 kHz, 1106853

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Elma Elmasonic Select 80 ultrasonic bath with heating, 9.3 litres, 37 kHz, 1106853"

The tank is 475 mm long and only 110 mm deep, the smallest tank depth in the Select range. The Elma Elmasonic Select 80 thus holds 9.3 litres total volume, with 6.8 litres recommended. The length matches that of the Select 300, while the depth is 160 mm less. Laboratory instruments, measuring equipment and components that fit into a narrow tank are cleaned here. As with the entire Select series, the unit operates at 37 kHz, with five ultrasonic modes and four programs that can be saved.

Tank geometry

Internally the tank measures 475 x 110 x 145 mm, and the fill level is 115 mm. 95 mm remain between the basket floor and the liquid level. The original accessory basket has internal dimensions of 455 x 106 x 75 mm and may be loaded with up to 5 kg. Externally the unit measures 570 x 195 x 280 mm and weighs 6.9 kg with lid. A plastic lid is included and can be turned upside down and used as a drip tray for a basket.

Performance data

The ultrasonic power is 150 W effective at 600 W peak and 37 kHz. At 600 W, the heater is stronger than the 400 W of the Select 60, and the total power consumption is 750 W. Five modes are available: Eco, Sweep, Pulse, Dynamic and Degas. Four programs store a setting permanently, and the Select button starts program operation. Auto-Degas and the temperature-controlled start are part of the functions.

Draining, operation, protection

The G 3/8 inch drain connection is opened with a rotary switch, and the DN10 hose nozzle is part of the scope of delivery. Settings are made via the large display and the membrane keypad, with the duration ranging from 1 minute to 6 hours and the setpoint temperature from 25 to 80 °C. The limit temperature is adjustable between 40 and 60 °C. Dry-run protection acts when the heating is active, and after 8 hours the unit switches off. With lid, the sound pressure level at a distance of 1 m is below 80 dB(A) and the ultrasonic pressure level below 110 dB. The housing has degree of protection IP20 and protection class I.

Select 80 compared with its neighbours

The Elmasonic Select 60 has a tank length of 280 mm, which is 195 mm shorter, but at 130 mm it is somewhat deeper. The Elmasonic Select 100 has 9.5 litres, but a tank of 280 x 220 x 145 mm, so considerably more depth with less length. Anyone who needs both 475 mm length and more depth should look at the Elmasonic Select 300 with 475 x 270 x 195 mm. The Elmasonic Select 150 is even somewhat longer with a tank length of 485 mm; its tank measures 485 x 280 x 95 mm and is therefore considerably shallower in height than that of the Select 80 at 145 mm.

Typical applications

  • Cleaning of laboratory instruments and volumetric measuring equipment
  • Cleaning of carburettors, filters and industrial components
  • Removal of chips, grinding and polishing pastes, oils and greases
  • Degassing and dispersing in sample preparation

Technical details

Internal dimensions of tank (W x D x H)475 x 110 x 145 mm
Total volume9.3 litres
Recommended working volume6.8 litres
External dimensions with lid (W x D x H)570 x 195 x 280 mm
Weight with lid6.9 kg
Ultrasonic frequency37 kHz (tolerance -2.5/+5.5 kHz)
Ultrasonic power150 W effective, 600 W peak
Heating power600 W
Total power consumption750 W
Temperature25 to 80 °C setpoint temperature
Modes and programsEco, Sweep, Pulse, Dynamic, Degas, 4 programs
Timer1 minute to 6 hours
DrainG 3/8 inch with rotary switch, hose nozzle DN10
MaterialStainless steel
Power connectionIEC power connector, 220 to 240 V~, 50/60 Hz
Degree of protection / protection classIP20 / I

Scope of delivery

  • 1x Elma Elmasonic Select 80 ultrasonic bath
  • Plastic lid, can be turned upside down and used as a drip tray
  • Power cable with IEC power connector
  • Hose nozzle for the drain (DN10)
  • Operating instructions

Baskets and further accessories are not included.

Regulatory information

The ultrasonic bath is an electrical and electronic device under the ElektroG. The manufacturer Elma Schmidbauer GmbH is registered with the WEEE number DE 45649814. The return of old appliances is described at Environment and disposal.

Individual requirements and procurement service

For the Select 80, Elma offers the modular cleaning basket 80 (item no. 1111838) and a plastic lid 70/80, plus a drain strainer (item no. 1045648) and a cooling coil (item no. 1037515). We procure these parts and check with you whether the narrow tank suits your items to be cleaned.
