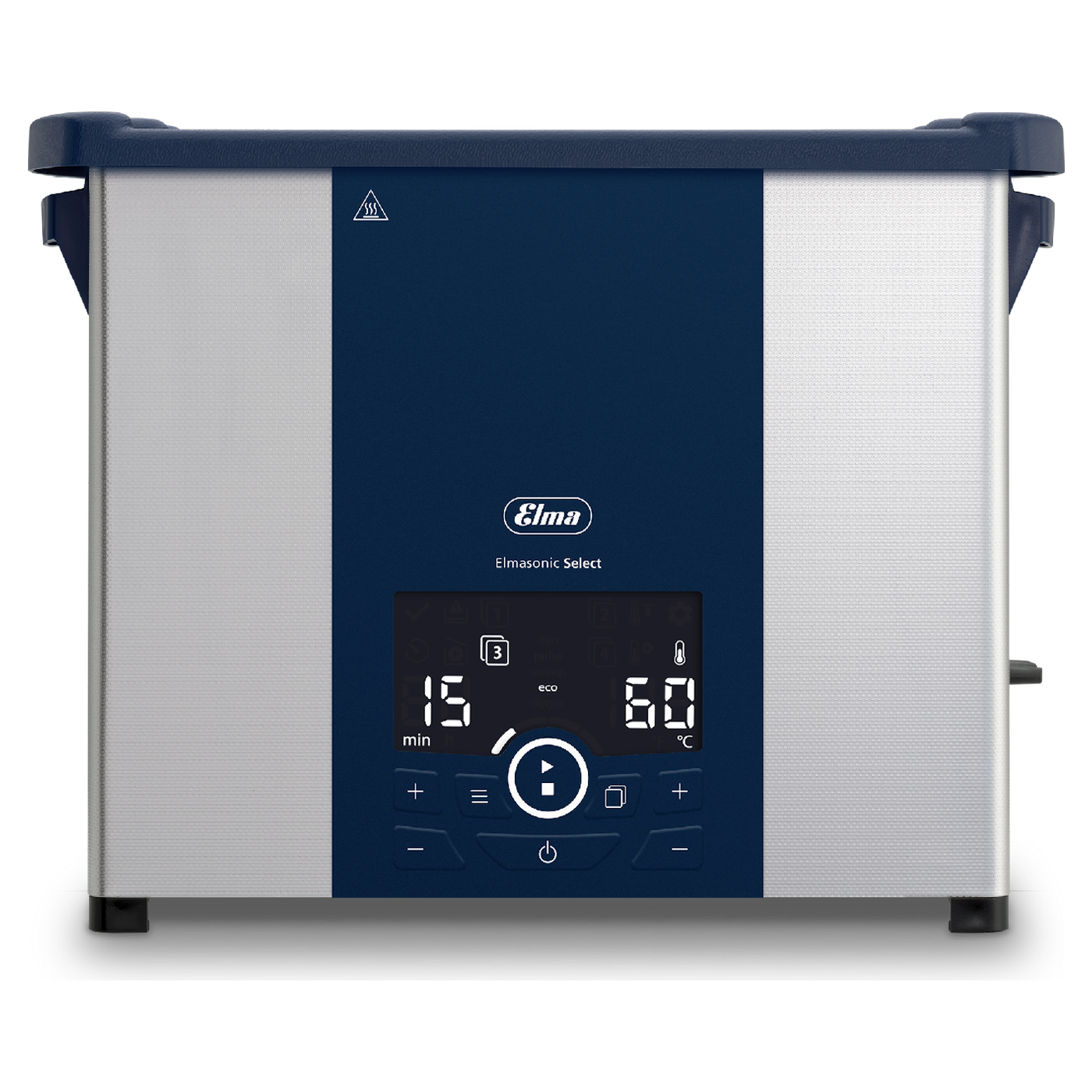

Elma Elmasonic Select 60 ultrasonic bath with heating, 5.9 litres, 37 kHz, 1106990

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "Elma Elmasonic Select 60 ultrasonic bath with heating, 5.9 litres, 37 kHz, 1106990"

Items cleaned in the Select series include volumetric measuring equipment, test tubes and other laboratory instruments. The Elma Elmasonic Select 60 is designed for this with 5.9 litres total volume and 4.3 litres recommended working volume. Compared with the Select 40, it has a drain connection, more heating power and a longer tank. The tank is made of stainless steel like the housing, and the frequency is 37 kHz. Externally the unit measures 370 x 210 x 280 mm with lid and weighs 5.2 kg.

Tank dimensions and drain

The internal dimensions of the tank are 280 x 130 x 145 mm, the fill level 115 mm. 85 mm remain between the basket floor and the liquid level. The original accessory basket measures 255 x 115 x 75 mm internally and carries up to 5 kg. The medium is drained via a G 3/8 inch connection that is opened and closed with a rotary switch. The DN10 hose nozzle is supplied with the unit. The plastic lid serves, turned upside down, as a drip tray for a basket.

Ultrasound, heating and programs

150 W effective ultrasonic power compares with 600 W peak power, the heater delivers 400 W, and the unit draws 550 W in total. Five modes can be selected: Eco, Sweep, Pulse, Dynamic and Degas. Sweep distributes the mechanical cleaning effect evenly, Degas prepares the bath for the actual cleaning, and Dynamic combines Pulse and Sweep. Four programs store mode, duration and temperature. Auto-Degas and the temperature-controlled start are also part of the range of functions.

Display, timer and protective functions

A large display and a wipe-clean membrane keypad with plus and minus keys form the controls. The duration ranges from 1 minute to 6 hours, the setpoint temperature from 25 to 80 °C, and the limit temperature can be set between 40 and 60 °C. With active heating, dry-run protection monitors the tank, and after 8 hours the unit switches off. With lid, the sound pressure level at a distance of 1 m is below 80 dB(A) and the ultrasonic pressure level below 110 dB. The unit meets degree of protection IP20 and protection class I.

Placement within the Select series

The Elmasonic Select 40 has 3.9 litres, a tank of 215 x 115 x 145 mm and no drain. For longer items, the Elmasonic Select 80 has a tank of 475 x 110 x 145 mm, so more length with less depth, plus 600 W heating power. The Elmasonic Select 100 has the same length of 280 mm, but 220 mm depth and 9.5 litres total volume.

Typical applications

  • Cleaning of laboratory instruments, volumetric measuring equipment and test tubes
  • Cleaning of watch components and jewellery
  • Removal of resinification, oils and greases, and adhesive and flux residues
  • Degassing, homogenising, emulsifying, dispersing and thermosensitive processes in sample preparation

Technical details

Total volume5.9 litres
Recommended working volume4.3 litres
Internal dimensions of tank (W x D x H)280 x 130 x 145 mm
External dimensions with lid (W x D x H)370 x 210 x 280 mm
Weight with lid5.2 kg
Frequency37 kHz (tolerance -2.5/+5.5 kHz)
Ultrasonic power150 W effective, 600 W peak
Heating power400 W
Total power consumption550 W
Setpoint temperature25 to 80 °C
Programs and modes4 programs, Eco, Sweep, Pulse, Dynamic, Degas
Timer1 minute to 6 hours
DrainG 3/8 inch with rotary switch, hose nozzle DN10
MaterialStainless steel (tank and housing)
Power connectionIEC connector, 220 to 240 V~, 50/60 Hz
Degree of protection / protection classIP20 / I

Scope of delivery

  • 1x Elma Elmasonic Select 60 ultrasonic bath
  • Plastic lid, can be turned upside down and used as a drip tray
  • Power cable with IEC connector
  • Hose nozzle for the drain (DN10)
  • Operating instructions

Baskets and further accessories are not included.

Regulatory information

As an electrical device, the ultrasonic bath falls under the ElektroG. The manufacturer Elma Schmidbauer GmbH is registered under the WEEE registration number DE 45649814. How to return old appliances is described on the page Environment and disposal.

Individual requirements and procurement service

For the Select 60, Elma offers the modular cleaning basket 60 (item no. 1113050), a stainless steel lid 60 (item no. 1111931), an insert lid for two cleaning glasses or beakers (item no. 1110261), a drain strainer (item no. 1045648) and a cooling coil (item no. 1037515). We assemble the accessories and help with the choice of tank size.
