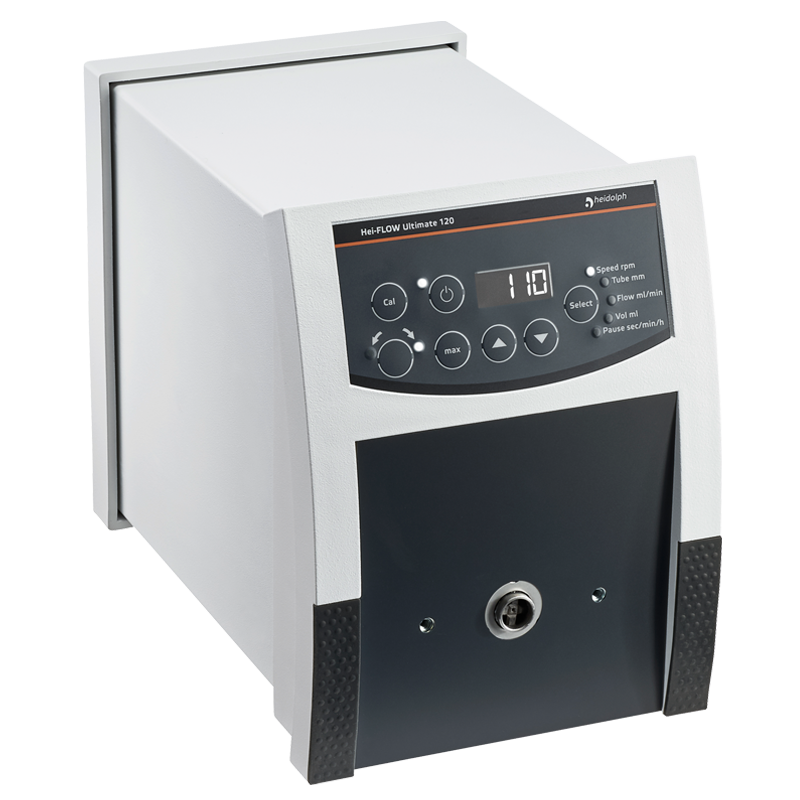

Heidolph Hei-FLOW Ultimate 120 Peristaltic Pump, 5 to 120 rpm, Volumetric and Interval Dosing, 523-52010-00

Pharmaceutical, cosmetic or food applications often require traceable, programmable dosing processes rather than simple speed control. The Hei-FLOW Ultimate 120 covers a speed range of 5 to 120 revolutions per minute and features a digital display, volume and interval dosing, and an RS232 interface. As the top-of-the-range model in the 120 series, it differs from the Expert line primarily in this digital control system.

Digital dosing instead of estimated values

The digital display allows volume dosing between 0.001 and 9,999 millilitres to be programmed, as well as interval dosing within the same volume range with pause times ranging from 0.1 seconds to 750 hours. A soft start and an electronic brake complement the control system; the delivery accuracy is ± 1 per cent, which is tighter than that of the Hei-FLOW models without a digital display. The pump can also be calibrated to adjust the dosing accuracy to the specific tubing.

Two interfaces for external control

In addition to the analogue interface (0 to 10 V or 4 to 20 mA), an RS 232 digital interface is also available, via which speed, direction of rotation, and start/stop functions can be controlled from a higher-level system. An optional foot switch also allows operation inside enclosed fume cupboards without the need to access the controls on the unit.

Single-channel or multi-channel operation depending on the pump head

With a single-channel pump head, the flow rate ranges from 0.36 to 813 millilitres per minute; with a multi-channel pump head, it ranges from 0.005 to 329 millilitres per minute. The choice of pump head depends on the number of parallel delivery lines and the required hose diameter. The soft start reduces pressure surges at start-up, whilst the electronic brake shortens the coasting time on stop; together, these features have a direct impact on the reproducibility of the dosing processes.

Typical applications

• Programmed dosing volumes in pharmaceutical, cosmetic or food applications
• Processes with interval and pause times that must be documented
• External control via RS232 or analogue signal in automated systems
• Operation in fume cupboards via foot switch

Selection guide within the Hei-FLOW range

Those who work with multi-channel pump heads from the outset will find that the Hei-FLOW Ultimate 120 Multi features the same drive with a factory-fitted multi-channel adapter. If an analogue interface without a digital display and dosing functions is sufficient, the Hei-FLOW Expert 120 is the simpler and more cost-effective alternative within the same speed range. For significantly higher flow rates in single-channel operation, the Hei-FLOW Ultimate 600 is available with a speed range of 24 to 600 revolutions per minute.

Technical details

Scope of delivery

• Hei-FLOW Ultimate 120 drive unit, order number 523-52010-00

A pump head is not included and must be selected separately from the range of accessories, as must the hoses and the RS232 cable. The operating instructions and Safety Guide are available as PDF downloads.

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and procurement service

Heidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. The LT Laborhandel procurement service will put together a kit comprising suitable pump heads, tubing and the RS232 cable to fit this drive.
