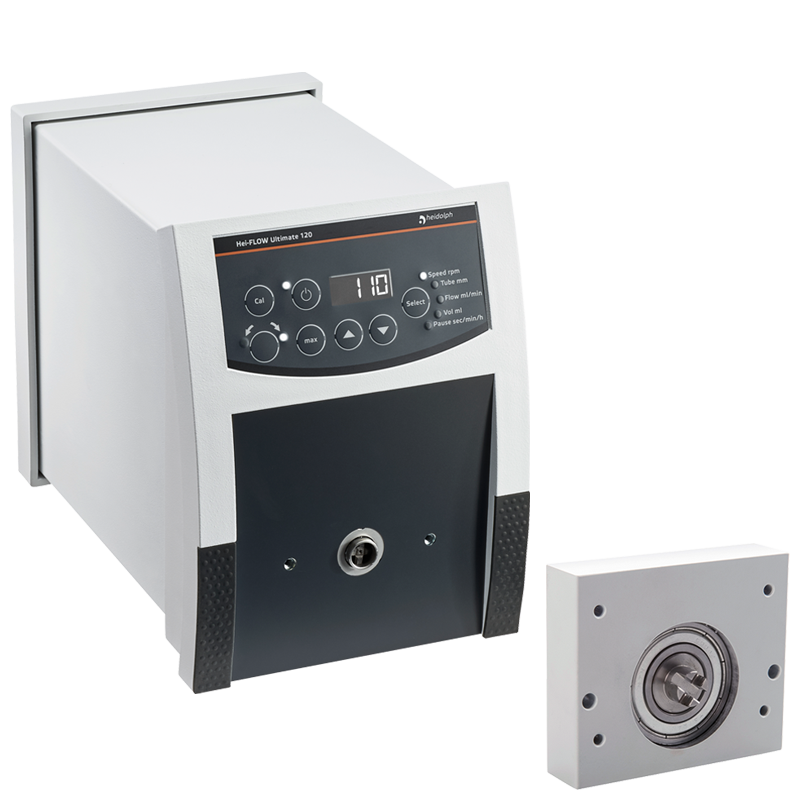

Heidolph Hei-FLOW Ultimate 120 Multi Peristaltic Pump, 5 to 120 rpm, Multi-channel, Volumetric Dosing, 523-52013-00

With the Hei-FLOW Ultimate 120 Multi, programmed dosing volumes and parallel multi-channel operation are not mutually exclusive. The drive comes with the multi-channel adapter as standard and also features a digital display, volume and interval dosing, and an RS232 interface, with a speed range of 5 to 120 revolutions per minute. As the multi-channel variant of the Ultimate 120, it thus combines two configuration levels that would otherwise have to be selected separately.

Multi-channel operation with digital dosing

With a multi-channel pump head, the flow rate ranges from 0.005 to 329 millilitres per minute; with a single-channel pump head, it ranges from 0.36 to 813 millilitres per minute. Volume dosing between 0.001 and 9,999 millilitres, as well as interval dosing with pause times ranging from 0.1 seconds to 750 hours, can be programmed via the digital display; the dosing accuracy is ± 1 per cent.

Two interfaces, one footswitch connection

The digital RS-232 interface complements the analogue interface (0 to 10 V or 4 to 20 mA); both transmit speed, direction of rotation and start/stop signals to a higher-level control system. An optional foot switch allows dosing to be controlled by foot pressure; soft start and an electronic brake round off the control system and reduce pressure surges on start-up as well as coasting effects when stopping each individual channel.

Accessories for multi-channel operation

The multi-channel cassettes are available in three sizes, along with multi-channel pump heads featuring 4, 8 or 12 channels. Tubing materials range from silicone to PharMed and Viton, through to various Tygon grades for hydrocarbons or foodstuffs, each with a wall thickness of 1.6 or 2.5 millimetres. For smaller cassettes, matching 2-stopper tubing and extension tubing are also available in the same material variants, enabling even narrow channel spacing to be achieved.

Typical applications

• Parallel dispensing across multiple channels with documented volume and interval profiles
• Processes in pharmaceutical, cosmetics or food applications with tight tolerances
• External control via RS232 or analogue signal in automated systems
• Dosing via a foot switch when both hands must remain on the vessel

Selection guide within the Hei-FLOW range

For those who do not require multi-channel operation, the Hei-FLOW Ultimate 120 offers the same digital electronics without an integrated adapter. If an analogue interface without dosing functions is sufficient, the Hei-FLOW Expert 120 Multi is the simpler alternative within the same speed range. For single-channel operation at significantly higher flow rates, the Hei-FLOW Ultimate 600 is available with speeds ranging from 24 to 600 revolutions per minute; for a more cost-effective multi-channel solution without a digital display, the Hei-FLOW Core 120 Multi is available.

Technical details

Scope of delivery

• Hei-FLOW Ultimate 120 Multi drive unit, order number 523-52013-00
• Factory-fitted multi-channel adapter

A pump head is not included and must be selected separately from the range of accessories, as must hoses and RS232 cables. The operating instructions and Safety Guide are available as PDF downloads.

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and procurement service

Heidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. LT Laborhandel’s procurement service will put together the appropriate equipment, including suitable pump heads, multi-channel cassettes and tubing, to fit this drive.
