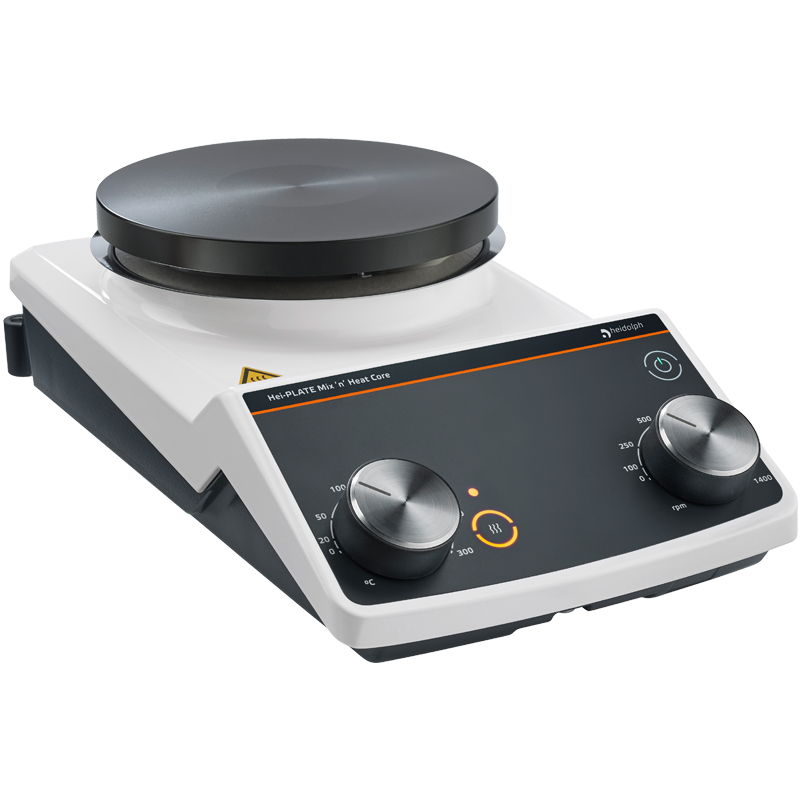

Heidolph Hei-PLATE Mix'n'Heat Core Magnetic Stirrer, Ø145 mm, up to 300 °C, 506-11100-00

For those looking for a hotplate with a magnetic stirrer but who can do without a display and sensor programming, the Hei-PLATE Mix’n’Heat Core is the entry-level model in the Hei-PLATE range. Two rotary knobs allow the speed and temperature to be set directly via a scale, without the need to navigate through menus. The 145-millimetre-diameter Kera-Disk work surface, made of anodised aluminium, heats up to 300 degrees Celsius whilst stirring at up to 1,400 revolutions per minute.

Two rotary knobs instead of a display

The controls are deliberately analogue: one rotary knob sets the speed between 100 and 1,400 revolutions per minute, whilst the second sets the temperature between 20 and 300 degrees Celsius, both via a scale on the unit. The heating function can be activated independently of the stirring function; an illuminated LED button indicates whether heating is in progress. Those who do not require the sensor technology and memory functions of the Core+ series will achieve results more quickly with this simplified control concept and avoid having to familiarise themselves with a menu.

PID-controlled heating with safety margin

The heating power is 800 watts at 230 volts (EU) or 600 watts at 115 volts (US), controlled via PID. There is a generous safety gap between the heating plate and the control panel; a visual residual heat warning lights up on the base when the surface temperature exceeds 50 degrees Celsius. The patented Kera-Disk coating, made from anodised aluminium, is chemical-resistant and scratch-resistant and, according to the manufacturer, enables short heating times despite the compact design.

Typical applications

• Heating and stirring solutions to boiling point
• Evaporation of small volumes on the hotplate
• Batch preparations with flask attachments such as Heat-On or bath attachments
• Training and educational laboratories requiring simple, robust operation
• Routine applications where temperature and speed do not need to be recorded

Load capacity and space requirements

With a net weight of around 3 kilograms, the base can support set-ups weighing up to 25 kilograms, which also accommodates larger flasks or filled baths. IP42 protection rating protects against foreign bodies larger than 1 mm and dripping water when tilted up to 15°; the sound pressure level is below 50 dB(A). With external dimensions of 168 x 101 x 299 millimetres, the unit remains compact on the workbench, although the base, with a diameter of 145 millimetres, offers space for many standard flask sizes and accessories.

Selection guide: Core, Core+ or the sensor pack

If you wish to measure the sample temperature yourself rather than simply controlling the hotplate, you will need an external Pt1000 probe and therefore the digital Hei-PLATE Mix’n’Heat Core+ with LCD display. If you wish to purchase the Core equipped directly with a probe and silicone cover, you’ll find the right combination in the Hei-PLATE Sensor Advanced Package Core. If a simple magnetic stirrer without a heating function is sufficient, the more compact Hei-Mix S is the simpler alternative for smaller stirring volumes.

Technical details

Scope of delivery

• Hei-PLATE Mix'n'Heat Core (145 mm), order number 506-11100-00

The EKT Hei-Con electronic contact thermometer, piston attachments and silicone cover are not included in the Scope of delivery and must be selected separately depending on the application.

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and procurement service

Heidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty commences on the date of purchase; otherwise, it commences on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. For this model in the Hei-PLATE series, Heidolph offers a 10-year warranty provided the instrument is registered with Heidolph within the first year of purchase. LT Laborhandel’s procurement service can put together suitable accessories such as the EKT Hei-Con electronic contact thermometer, flask adaptors or a silicone cover.
