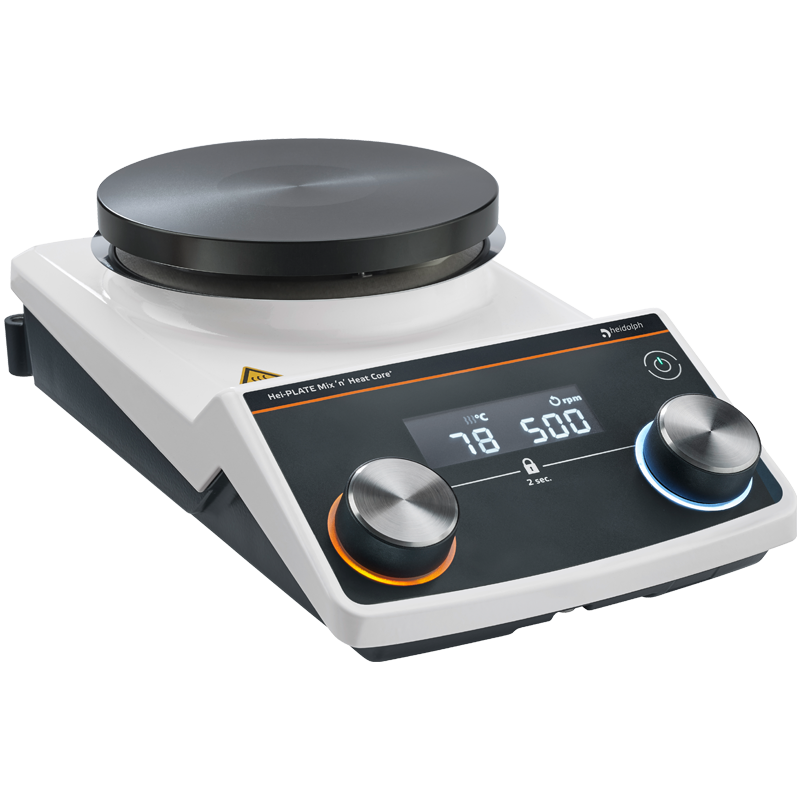

Heidolph Hei-PLATE Mix'n'Heat Core+ Magnetic Stirrer, Ø145 mm, Pt1000 Connection, 506-21100-00

For those who wish to monitor the temperature of the sample themselves, rather than simply setting the hotplate temperature, the Hei-PLATE Mix'n'Heat Core+ is the digital version of the Hei-PLATE range. An LCD display shows the speed and temperature, whilst an optional external Pt1000 temperature probe measures the temperature directly within the sample and uses this to regulate the heating plate. As with the Core model, the Kera-Disk platform has a diameter of 145 millimetres; it heats up to 300 degrees Celsius at a speed of up to 1,400 revolutions per minute.

Dynamic control knobs with locking function

Two rotary controls adjust the speed and temperature and respond dynamically to the rotational speed: slow rotation for fine adjustment, fast rotation for larger increments. A lock function prevents accidental adjustment during operation, whilst button and dial illumination indicates which functions are active at all times. For test series that run unattended for extended periods, this safeguard against accidental adjustment is a practical advantage over the analogue-controlled Core model.

Precise temperature control with Pt1000

When an external Pt1000 probe is connected, the unit controls the sample temperature to an accuracy of ± 0.2 Kelvin, plus the probe tolerance, with a resolution of 1 Kelvin. There are two heating modes to choose from: FAST for rapid attainment of the setpoint temperature and PRECISE for control without overshoot. Without a connected probe, the LCD display shows the temperature of the heating plate; the display range then extends from 15 to 325 degrees Celsius.

Typical applications

• Reflux distillation with documented sample temperature
• Syntheses where temperature overshoot must be avoided
• Reproducible experimental series with consistent setpoints
• Quality assurance with traceable temperature measurement rather than just plate temperature
• Upgrading existing Core workstations with digital sensor technology

Design and load capacity

The external dimensions of 168 x 101 x 299 millimetres and a weight of around 3 kilograms are the same as the Core model, as is the maximum load of 25 kilograms on the base. The IP42 protection rating and a sound pressure level below 50 dB(A) remain unchanged. The patented Kera-Disk coating made of anodised aluminium remains chemical-resistant and scratch-resistant, regardless of whether an external sensor is used or not.

Selection guide: 145 or 135 millimetres, individually or as a pack

For set-ups requiring slightly less space, the same unit is also available with a 135-millimetre footprint as the Hei-PLATE Mix’n’Heat Core+ (Ø135). If you wish to order the Pt1000 probe directly, you will find it in the Hei-PLATE Sensor Basic Package Core+ or, including a mount and silicone cover, in the Hei-PLATE Sensor Advanced Package Core+. For a complete reflux setup with a Heat-On flask attachment and Findenser condenser, the Hei-PLATE Reflux Package Core+ is available. Those who prefer simpler, analogue operation will find it in the Hei-PLATE Mix'n'Heat Core.

Technical details

Scope of delivery

• Hei-PLATE Mix'n'Heat Core+ (145 mm), order number 506-21100-00

The external Pt1000 temperature sensor is not included in the scope of delivery for this item number and must be ordered separately or as part of a sensor pack.

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, Heidolph Scientific Products GmbH, is DE 50705753. Information on the return of end-of-life equipment can be found on our Environment and Disposal page.

Warranty and procurement service

Heidolph Scientific Products GmbH, Schwabach, provides a 3-year manufacturer’s warranty against defects in materials and workmanship. This excludes glass and wear parts, damage caused during transport and damage resulting from improper use. If the device is registered with Heidolph, the warranty begins on the date of purchase; otherwise, it begins on the date of manufacture as indicated by the serial number. Your statutory warranty rights remain unaffected. For this model in the Hei-PLATE series, Heidolph offers a 10-year warranty provided the instrument is registered with Heidolph within the first year of purchase. LT Laborhandel’s procurement service can source the appropriate Pt1000 probe, mounts and other accessories for reflux set-ups.
