Heidolph Hei-PLATE Reflux Package Core+ Magnetic Stirrer Set, Ø145 mm, with Findenser and Heat-On, 506-21156-00

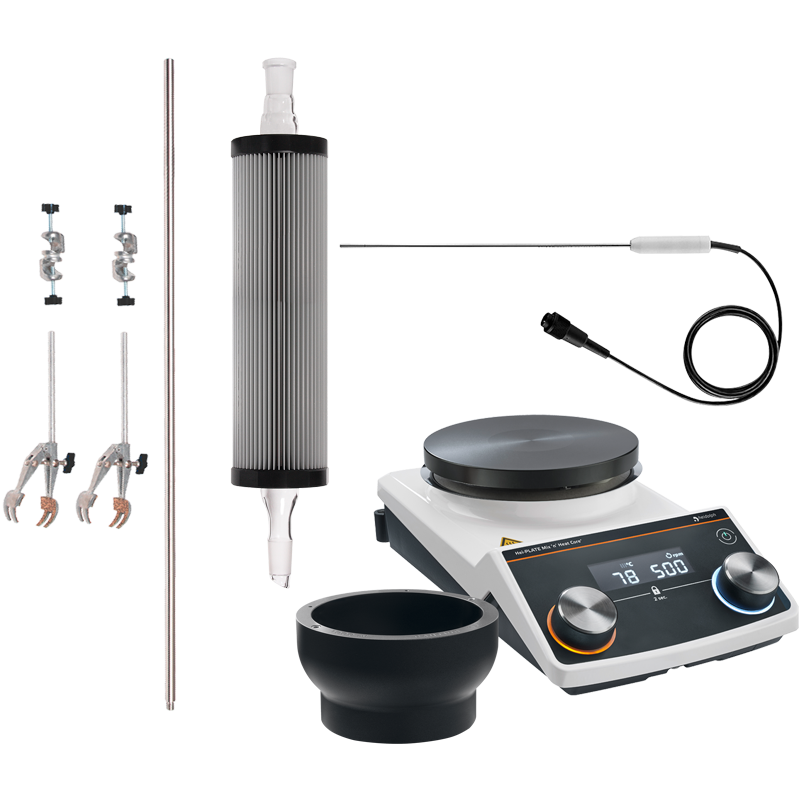

Larger reflux set-ups requiring up to one litre of solvent need more than one temperature sensor, a suitable heating attachment and a condenser that are compatible with the flask’s volume. The Core+ reflux kit provides this combination, fully coordinated and ready to use, based on the Hei-PLATE Mix’n’Heat Core+ with a 145-millimetre footprint.

From preparation to distillation

Traditional reflux set-ups often rely on a water or oil bath between the hotplate and the flask. The Heat-On attachment with a 1-litre capacity, order number 505-80071-00, replaces this bath with direct contact to the flask, thereby eliminating the need to fill, monitor and clean the bath. The included Pt1000 temperature probe regulates the temperature of the medium; in conjunction with the probe, the magnetic stirrer covers a measuring range from 15 to 325 degrees Celsius with an accuracy of ±0.2 Kelvin.

Cooling without a water connection, up to 1 l

The Findenser, featuring an NS24 core and NS24 sleeve (order number 505-81700-00), performs the cooling function of a conventional water cooler, but operates purely with air. Its capacity is sufficient for solvent volumes of up to 1 l. A round-bottomed flask is not included in the Scope of delivery, as the flask size depends on the specific application. If the flask is filled only halfway, the risk of losing solvent during reflux is reduced.

Selection guide: this pack or the mini version

For batches of up to 125 millilitres, the more compact Reflux Package Core+ Mini, with a footprint of 135 millimetres and smaller accessories, is the more suitable choice. If a temperature probe without a cooling assembly is sufficient, the more compact solution is the Sensor Basic Core+ pack or, with a mount and silicone cover, the Sensor Advanced Core+ pack.

Larger footprint, more space on the workbench

The 145-millimetre footprint of the Hei-PLATE Mix’n’Heat Core+ offers sufficient space for flasks in the one-litre range and for the supplied Heat-On attachment. The drive, speed range and heating power are identical to those of the smaller Core+ magnetic stirrer in the Mini version; only the usable surface area and the accessories differ.

Typical applications

• Preparative syntheses with batches ranging from several hundred millilitres to 1 l
• Reflux extractions in which larger volumes of solvent remain in the circuit
• Routine batches in laboratories without a fixed water supply for cooling
• Preparation of a batch prior to subsequent distillation or purification

Technical details

Scope of delivery

• Hei-PLATE Mix'n'Heat Core+ magnetic stirrer, 145 mm base area, order number 506-21100-00
• Pt1000 temperature sensor (V4A), order number 509-67910-00
• Heat-On 1-litre attachment, order number 505-80071-00
• Stirrer, NS24 core, NS24 sleeve, order number 505-81700-00

A round-bottom flask is not included in the Scope of delivery and must be ordered separately to fit the attachment.
