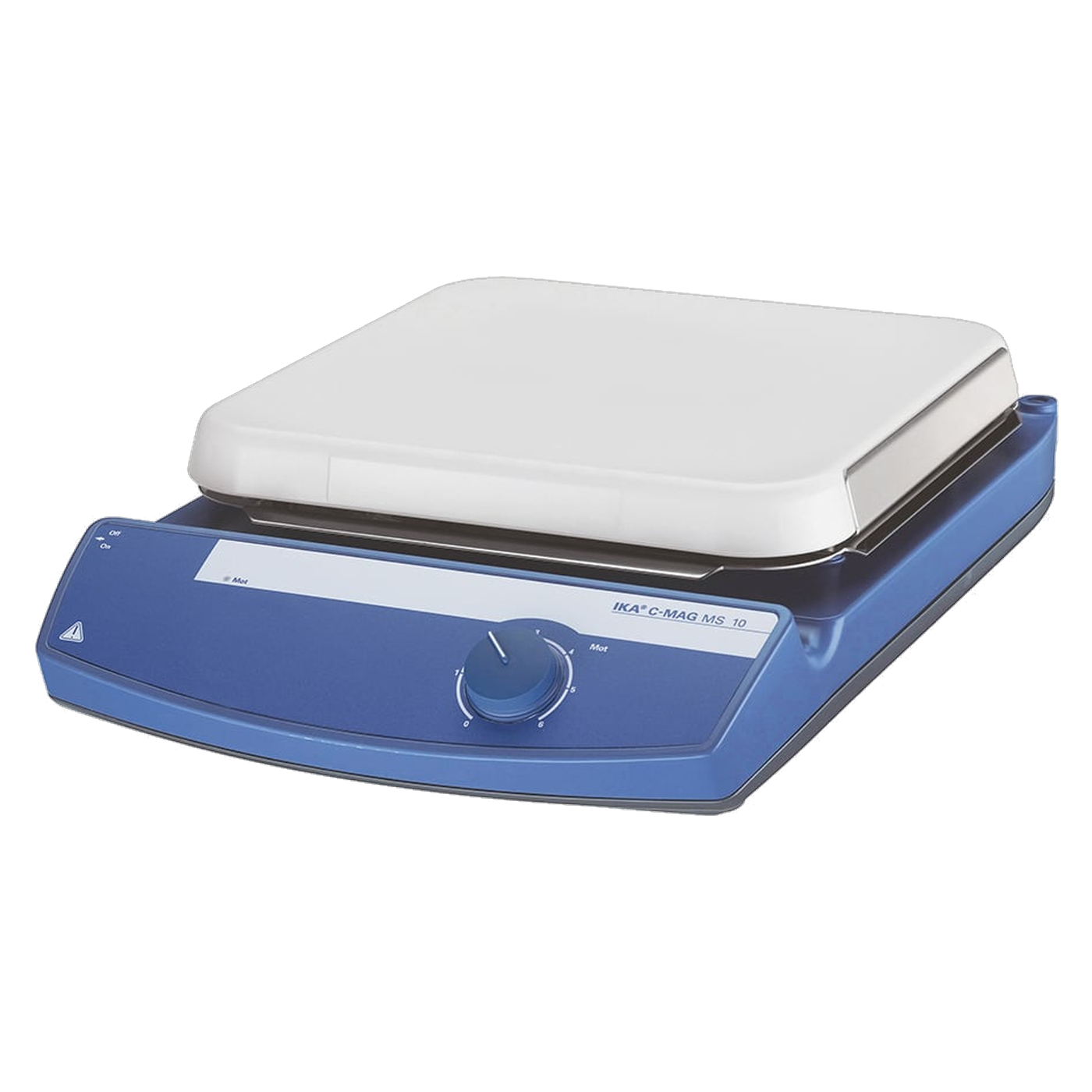

IKA C-MAG MS 10 Magnetic Stirrer without Heating, Glass-ceramic, 260 x 260 mm, 15 L, 0003582600
€738.75
% Manufacturer's RRP: €985.00 25% below manufacturer's RRP
- Magnetic stirrer without heating, for up to 15 l of water
- Glass-ceramic base, 260 x 260 mm, load capacity up to 20 kg
- Speed 100 to 1500 rpm, scale 0 to 6
- Magnetic stir bars up to 80 mm in length can be used
- Three IKAFLON magnetic stir bars (20, 30, 40) included in the scope of delivery
- Protection class IP 21, 300 x 105 x 415 mm, 6.665 kg
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA C-MAG MS 10 Magnetic Stirrer without Heating, Glass-ceramic, 260 x 260 mm, 15 L, 0003582600"
A 260 x 260 mm base plate ensures that even large vessels are held securely in place. The IKA C-MAG MS 10 is the largest of the three C-MAG magnetic stirrers without a heating function. It stirs up to 15 l of water, the glass-ceramic worktop supports up to 20 kg, and the speed can be adjusted between 100 and 1500 rpm.
Base area and load capacity
According to IKA, the glass-ceramic surface offers excellent chemical resistance. At 260 x 260 mm, it is significantly larger than the 180 x 180 mm of the C-MAG MS 7 and the 100 x 100 mm of the C-MAG MS 4. The unit itself measures 300 x 105 x 415 mm and weighs 6.665 kg. The housing has an IP 21 protection rating in accordance with DIN EN 60529. As with all units in this series, there is no heating element; the plate heats up solely due to the motor whilst stirring, rising by 2 K after one hour at maximum speed and a room temperature of 22 °C.
Long magnetic stir bars for large volumes
Longer stir bars are required for large volumes. The MS 10 accommodates magnetic stir bars up to 80 mm in length. IKA’s range of accessories includes IKAFLON round up to 80 mm, ellipse up to 70 mm, TRIKA up to 80 mm, power up to 50 mm, as well as glass rods and special shapes such as bone and beaker. Three stir bars (IKAFLON 20, 30 and 40) are supplied with the unit. The speed is selected via a scale from 0 to 6; the motor delivers 1.5 W and runs anti-clockwise.
Typical applications
- Preparing larger volumes of buffer or reagent solutions in a vessel
- Homogenising and dissolving solids in water or aqueous media up to 15 l
- Stirring of heavy vessels with a load of up to 20 kg
- Keeping suspensions in motion without heating
- Stirring in vessels with a large base, up to 260 x 260 mm footprint
Which size is right?
The MS 10 is the right choice when the stirring volume or vessel base exceeds the capacity of the smaller models. For occasional batches of up to 10 l, the MS 7 is sufficient; for up to 5 l, the MS 4. If heating is also required, IKA’s HS series is worth considering, for example the C-MAG HS 7 with 1000 W heating power.
| Model | Mixing capacity (H2O) | Footprint | Max. load | Weight |
| C-MAG MS 10 (this unit) | 15 l | 260 x 260 mm | 20 kg | 6.665 kg |
| C-MAG MS 7 | 10 l | 180 x 180 mm | 15 kg | 5 kg |
| C-MAG MS 4 | 5 l | 100 x 100 mm | 7.5 kg | 2.716 kg |
Technical details
| Number of mixing points | 1 |
| Max. mixing capacity (H2O) | 15 l |
| Maximum load | 20 kg |
| Motor power output | 1.5 W |
| Motor rotation direction | anti-clockwise |
| Speed adjustment | Scale 0 to 6 |
| Speed range | 100 to 1500 rpm |
| Max. stirrer rod length | 80 mm |
| Self-heating of the work surface (22 °C, 1 h, maximum stirring) | +2 K |
| Surface material | Glass-ceramic |
| Dimensions of the worktop | 260 x 260 mm |
| Dimensions (W x H x D) | 300 x 105 x 415 mm |
| Weight | 6.665 kg |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 21 (DIN EN 60529) |
| Mains connection | 230 V, 50/60 Hz, power consumption 30 W |
Scope of delivery
- 1 x IKA C-MAG MS 10 magnetic stirrer
- 1 x IKAFLON 20 magnetic stir bar
- 1 x IKAFLON 30 magnetic stir bar
- 1 x IKAFLON 40 magnetic stir bar
Warranty and Disposal
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. As an electrical appliance, the MS 10 must be disposed of via the separate collection scheme for waste electrical equipment after use.
Individual requirements and procurement service
For the MS 10, the following items are available, amongst others: magnetic stir bars in a range of lengths, stand accessories (LABLIFT m, universal clamp R 350, H 16 V stand rod), the RSE stirring rod remover, the BC 1000 beaker lid, as well as factory calibration certificates and IQ/OQ documents. If you are unsure which stirrer rod is suitable for your vessel, our procurement service can help.
Frequently asked questions
How much liquid can the MS 10 hold? Up to 15 l of water, with a maximum plate load of 20 kg.
Does the MS 10 have a heating element? No. For heated batches, IKA offers models from the HS series.
What is the maximum stir bar length? Up to 80 mm. Three stir bars (20, 30 and 40 mm) are included in the Scope of delivery.
How long is the warranty valid for? IKA’s manufacturer’s warranty: 2 years, extended to 3 years if registered at ika.com/register within 90 days of purchase.
