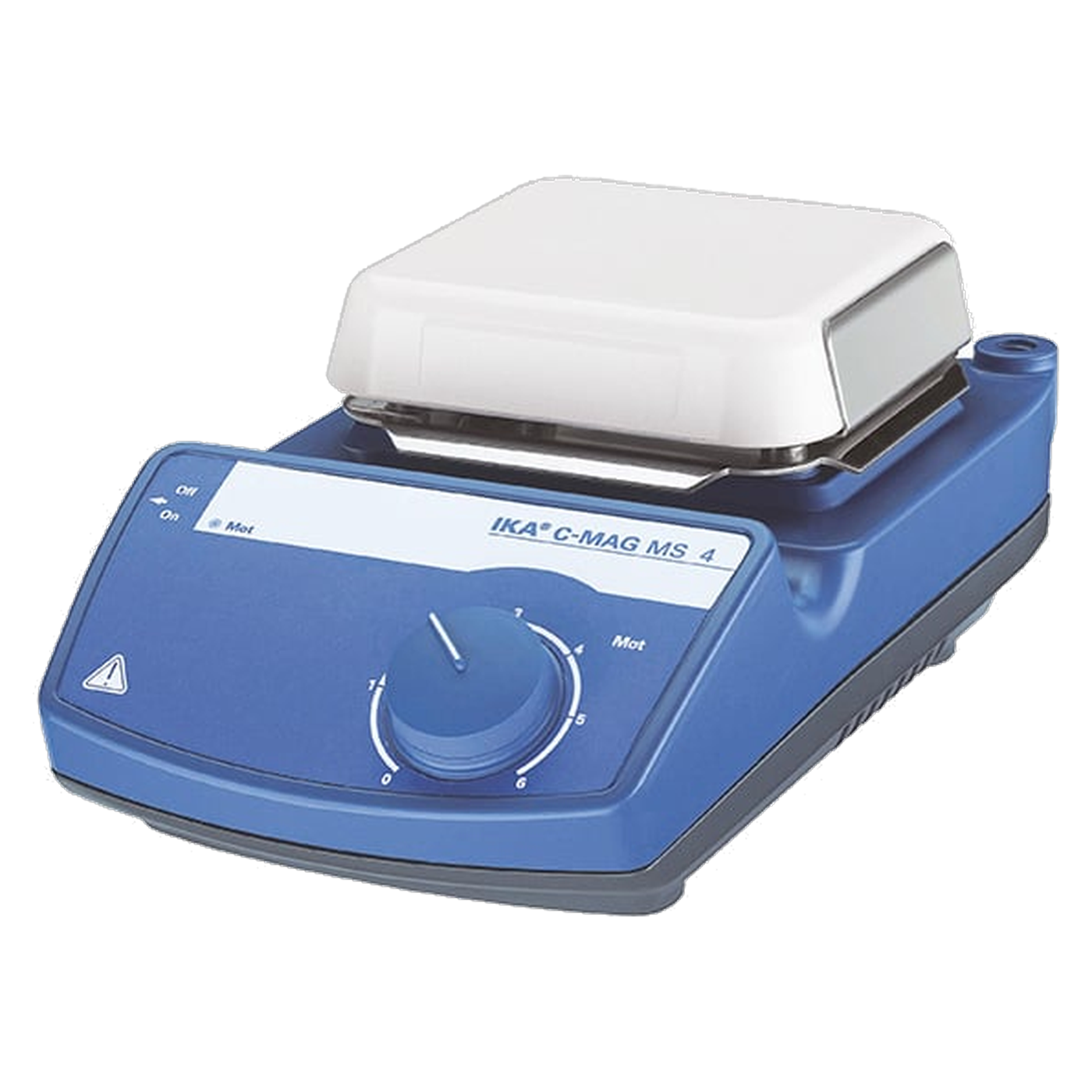

IKA C-MAG MS 4 Magnetic Stirrer without Heating, Glass-ceramic 100 x 100 mm, 5 L, 0003582200
€491.25
% Manufacturer's RRP: €655.00 25% below manufacturer's RRP
- Magnetic stirrer without heating, for up to 5 l of water
- Speed 100 to 1500 rpm, scale 0 to 6
- Glass-ceramic base, 100 x 100 mm, maximum load 7.5 kg
- Raised control panel to protect against spilt liquids
- Compact dimensions: 150 x 105 x 260 mm and 2.716 kg, protection class IP 21
- Three IKAFLON magnetic stir bars (20, 30, 40) included in the scope of delivery
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA C-MAG MS 4 Magnetic Stirrer without Heating, Glass-ceramic 100 x 100 mm, 5 L, 0003582200"
If you’re preparing five litres of buffer solution, you won’t need either a hotplate or an interface. What is important is a drive that runs smoothly and a base on which the vessel stands securely. The IKA C-MAG MS 4 is a magnetic stirrer without a heating function; it stirs up to 5 l of water at 100 to 1500 rpm and can support up to 7.5 kg. Measuring 150 x 105 x 260 mm and weighing 2.716 kg, it can still be accommodated even on a full laboratory bench.
Glass-ceramic and recessed control panel
The work surface is made of glass-ceramic, which, according to IKA, offers excellent chemical resistance. It measures 100 x 100 mm, so vessels with a base up to this edge length stand completely flat on it. The control panel is set back from the hob so that any spilt liquid does not come into direct contact with the controls. The housing has protection class IP 21 in accordance with DIN EN 60529. There is no heating element. After one hour at maximum speed and a room temperature of 22 °C, the plate heats up by approximately 2 K.
Speed and stirring volume
The speed is adjusted via a scale from 0 to 6 and ranges between 100 and 1500 rpm. The motor has a power output of 1.5 W and rotates anti-clockwise. Up to 5 l of water can be stirred, and the plate has a maximum load capacity of 7.5 kg. For larger vessel bases or batches of around 10 l, the C-MAG MS 7 with a 180 x 180 mm plate is available; for 15 l, the C-MAG MS 10 is available.
Typical applications
- Preparation and homogenisation of buffer and reagent solutions up to 5 l
- Stirring without heating; the plate heats up by 2 K after one hour at maximum speed
- Additional stirrer for workstations with limited floor space
Selection guide: MS 4, MS 7 or MS 10
The three C-MAG models without heating differ primarily in stirring capacity, plate size and loading capacity. The MS 4 is sufficient for volumes up to 5 l.
| Model | Stirring capacity (H2O) | Footprint | Max. load | Weight |
| C-MAG MS 4 (this unit) | 5 l | 100 x 100 mm | 7.5 kg | 2.716 kg |
| C-MAG MS 7 | 10 l | 180 x 180 mm | 15 kg | 5 kg |
| C-MAG MS 10 | 15 l | 260 x 260 mm | 20 kg | 6.665 kg |
If the mixture needs to be heated further, a heated model such as the C-MAG HS 7 with 1000 W heating power is the right choice.
Technical details
| Number of stirring points | 1 |
| Max. stirring capacity (H2O) | 5 l |
| Maximum load | 7.5 kg |
| Motor power output | 1.5 W |
| Motor rotation direction | anti-clockwise |
| Speed adjustment | Scale 0 to 6 |
| Speed range | 100 to 1500 rpm |
| Self-heating of the installation surface (22 °C, 1 h, maximum stirring) | +2 K |
| Material of the base | Glass-ceramic |
| Dimensions of the work surface | 100 x 100 mm |
| Dimensions (W x H x D) | 150 x 105 x 260 mm |
| Weight | 2.716 kg |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 21 (DIN EN 60529) |
| Mains connection | 230 V, 50/60 Hz, power consumption 30 W (other voltage variants 120 V and 100 V available) |
Scope of delivery
- 1 x IKA C-MAG MS 4 magnetic stirrer
- 1 x IKAFLON 20 magnetic stir bar
- 1 x IKAFLON 30 magnetic stir bar
- 1 x IKAFLON 40 magnetic stir bar
Installation, Disposal and Warranty
The appliance must be placed on a level, dry surface at a temperature of 5 to 40 °C and a relative humidity of no more than 80 per cent. At the end of its service life, as an electrical appliance, it must be disposed of via the separate collection scheme for waste electrical equipment. IKA manufacturer’s warranty: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.
Individual requirements and procurement service
IKA offers magnetic stirring bars for the MS 4 in several shapes, including round, elliptical, cross-shaped, TRIKA and glass, as well as the LABLIFT m, the universal clamp R 350, the stand rod H 16 V, the stirring rod remover RSE and the beaker lid BC 1000. For documented laboratory environments, factory calibration certificates and IQ/OQ documentation are available. We can help you determine which combination is best suited to your workplace via our procurement service.
Frequently asked questions
Can the MS 4 heat? No, the C-MAG MS 4 is a magnetic stirrer without a heating function. For heated samples, IKA offers models with a heating plate, such as the C-MAG HS 7.
How big is the work surface? 100 x 100 mm; the surface is made of glass-ceramic.
Which stirring rods are included? One IKAFLON 20, 30 and 40 magnetic stirring rod each.
How long is the warranty valid for? IKA’s manufacturer’s warranty: 2 years; extended to 3 years if registered at ika.com/register within 90 days of purchase.
