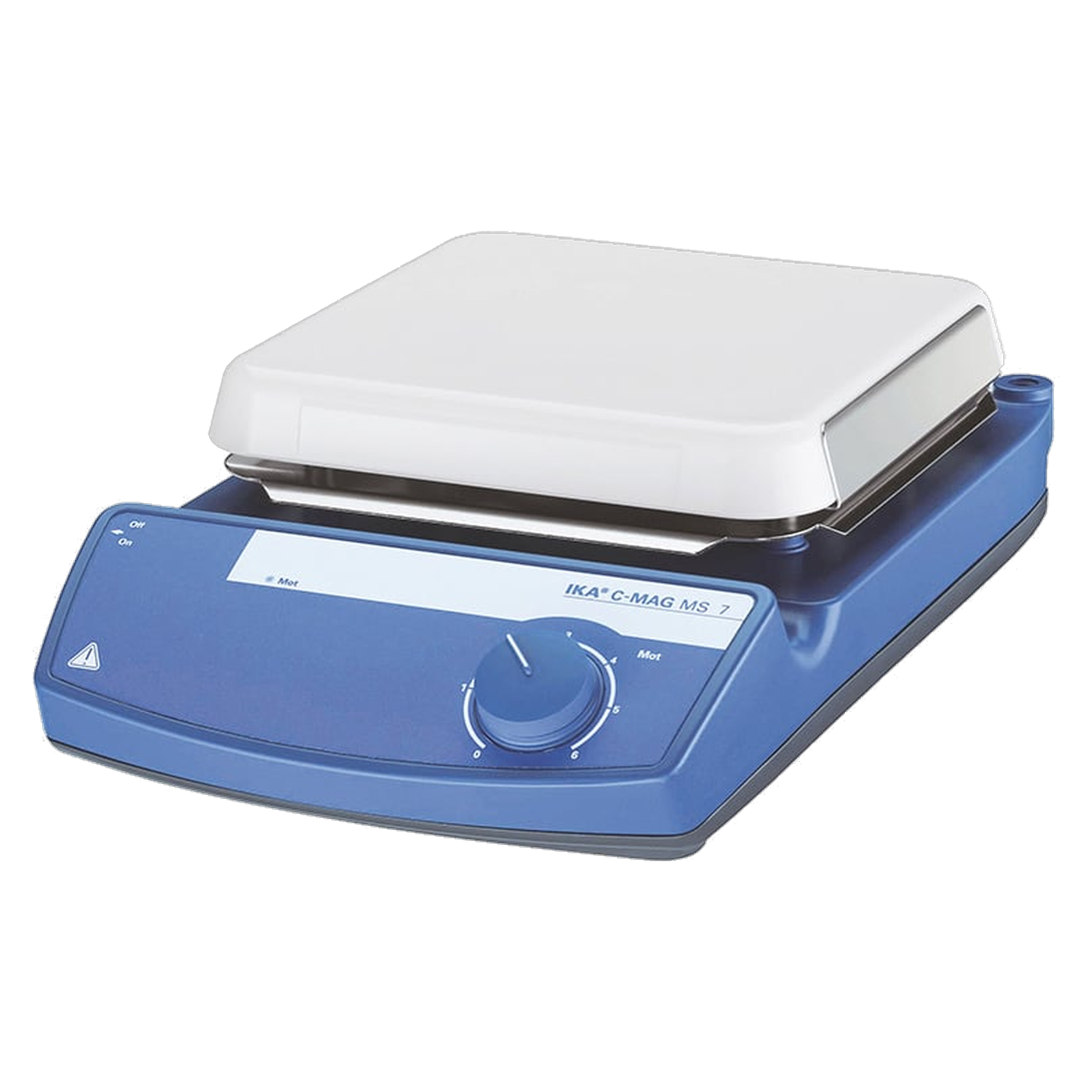

IKA C-MAG MS 7 Magnetic Stirrer without Heating, Ceramic Base 180 x 180 mm, 10 L, 0003582400
€540.75
% Manufacturer's RRP: €721.00 25% below manufacturer's RRP
- Magnetic stirrer without heating, stirring capacity up to 10 l of water, load capacity 15 kg
- Speed 100 to 1,500 rpm via a scale from 0 to 6
- Ceramic base 180 x 180 mm, recessed control panel
- Self-heating of the surface after 1 hour of maximum stirring: only +2 K
- Three IKAFLON magnetic stir bars (20, 30, 40) included in the scope of delivery
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA C-MAG MS 7 Magnetic Stirrer without Heating, Ceramic Base 180 x 180 mm, 10 L, 0003582400"
Ten litres of solution need to be stirred evenly, but do not necessarily need to be heated. For this application, the IKA C-MAG MS 7 (0003582400) is a magnetic stirrer without a heating function, featuring a ceramic base measuring 180 x 180 mm. It stirs up to 10 l of water at 100 to 1,500 rpm and can support up to 15 kg.
Stirring without heating
The speed is adjusted via a scale from 0 to 6; the motor has a power output of 1.5 W and rotates anti-clockwise. Stirring rods may be up to 80 mm long. The unit heats up only slightly during operation: at maximum speed, the temperature of the base rises by approximately 2 K after one hour at a room temperature of 22 °C. The unit’s power consumption is 30 W.
Base and control panel
The surface is made of ceramic; IKA describes it as having very good chemical resistance. The control panel is recessed, thus providing protection against spilt liquids. The housing measures 220 x 105 x 335 mm and weighs 5 kg. The protection rating is IP 21; relative humidity may be up to 80 per cent, and the ambient temperature must be between 5 and 40 °C. The mains voltage is 230 V at 50/60 Hz; other variants are available for 120 V and 100 V.
Typical applications
The device’s technical specifications make it suitable for the following applications:
- Stirring solutions of up to 10 l of water, for example when preparing larger volumes
- Stirring at room temperature without additional heat input
- Stirring large vessels with a load of up to 15 kg
- Stirring with magnetic stir bars up to 80 mm in length
- Benchtop unit for preparations where the work surface must be chemically resistant
Selection guide for the C-MAG-MS series
The C-MAG MS 4, with a 100 x 100 mm surface area, is suitable for smaller batches of up to 5 l. For 15 l and a load of 20 kg, the C-MAG MS 10 is available with a 260 x 260 mm surface area. For those requiring additional heating, the C-MAG HS 7 is available with 1,000 W heating power and a ceramic hotplate of the same size as the MS 7.
| Model | Mixing capacity (H2O) | Load | Surface area | Weight | Heating |
|---|---|---|---|---|---|
| C-MAG MS 4 | 5 l | 7.5 kg | 100 x 100 mm | 2.716 kg | no |
| C-MAG MS 7 (this unit) | 10 l | 15 kg | 180 x 180 mm | 5 kg | no |
| C-MAG MS 10 | 15 l | 20 kg | 260 x 260 mm | 6.665 kg | no |
| C-MAG HS 7 | 10 l | 15 kg | 180 x 180 mm | 5 kg | yes, 1,000 W |
Technical details
| Number of mixing points | 1 |
| Max. mixing capacity (H2O) | 10 l |
| Maximum load | 15 kg |
| Speed range | 100 to 1,500 rpm, scale 0 to 6 |
| Motor power output | 1.5 W |
| Motor direction of rotation | anti-clockwise |
| Max. stirrer rod length | 80 mm |
| Heat generated by the base (at maximum stirring speed, 1 h, 22 °C) | +2 K |
| Material of the mounting surface | Ceramic |
| Dimensions of the mounting surface | 180 x 180 mm |
| Voltage / Frequency | 230 V, 50/60 Hz |
| Power consumption | 30 W |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 21 (DIN EN 60529) |
| Dimensions (W x H x D) | 220 x 105 x 335 mm |
| Weight | 5 kg |
Scope of delivery
- 1 x IKA C-MAG MS 7 magnetic stirrer
- 1 x IKAFLON 20 magnetic stir bar
- 1 x IKAFLON 30 magnetic stir bar
- 1 x IKAFLON 40 magnetic stir bar
Additional stir bars, a H 16 V stand rod, the R 350 universal clamp, the LABLIFT m, a BC 1000 beaker lid and the RSE stir bar remover are available as accessories.
Warranty and disposal
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. At the end of its service life, the device, as an electrical appliance, must be disposed of via the separate collection scheme for waste electrical and electronic equipment and must not be placed in household waste.
Frequently Asked Questions
Does the C-MAG MS 7 have a heating element? No, it is a magnetic stirrer without a heating element. The C-MAG HS 7 is available with a heating plate.
How long is the warranty valid for? IKA manufacturer’s warranty: 2 years, extended to 3 years if registered at ika.com/register within 90 days of purchase.
How much can the MS 7 stir? Up to 10 l of water, with a load of up to 15 kg and stirring rods up to 80 mm in length.
Which stirring rods are included? Three IKAFLON magnetic stirring rods in sizes 20, 30 and 40.
Individual requirements and procurement service
LT Laborhandel supplies suitable stirring rods, stand components, factory calibration certificates and qualification documents for the C-MAG MS 7. Through our procurement service, we can put together a range of accessories for your workplace.
