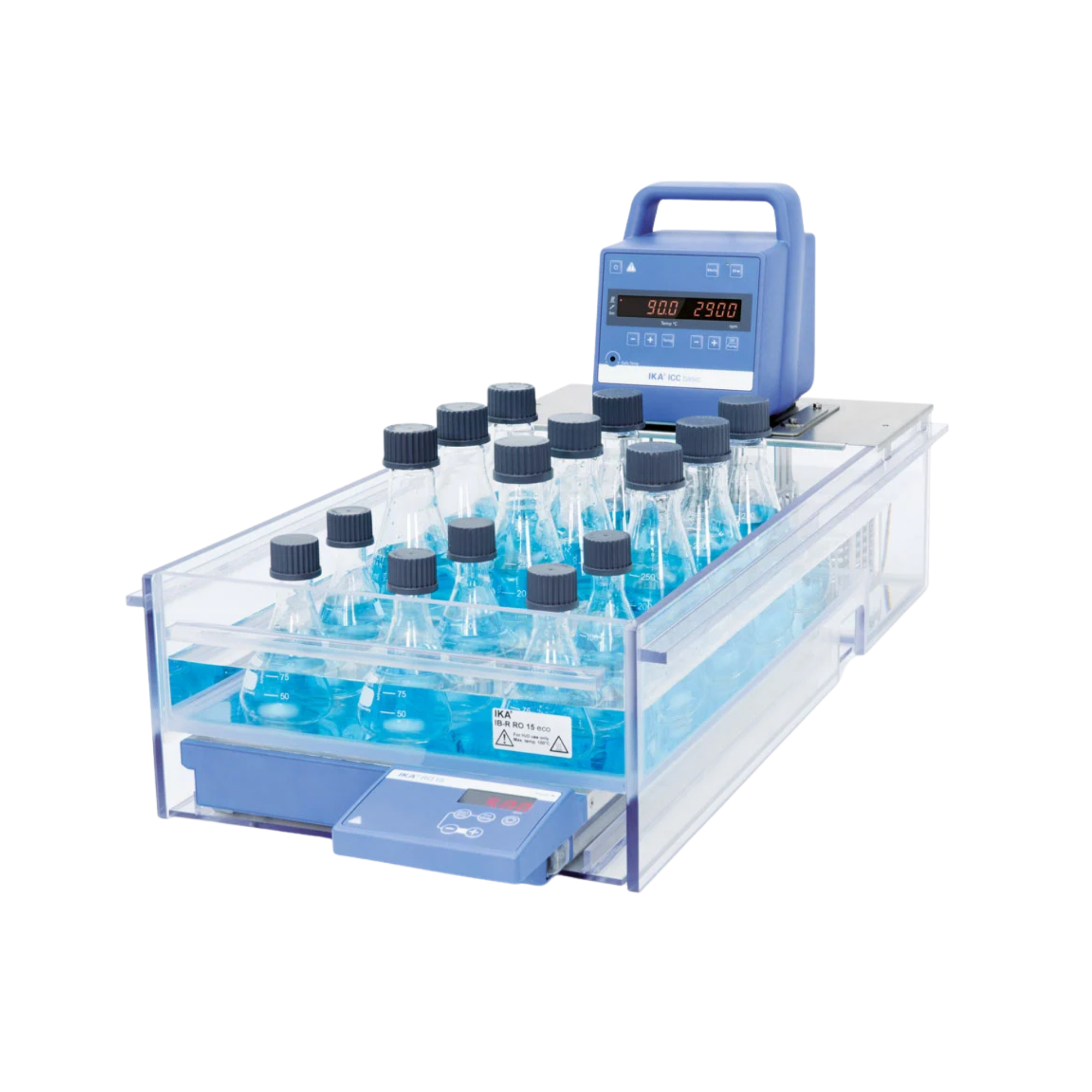

IKA Compact Thermostat Package ICC basic IB R RO 15 eco, polycarbonate bath, 0010002471
€3,765.75
% Manufacturer's RRP: €5,021.00 25% below manufacturer's RRP
- Reliable thermostat package including the ICC basic clip-on thermostat and a special plastic bath
- Stable temperature control to within +/- 0.02 K for precise routine laboratory applications
- Transparent polycarbonate bath (15 L) allows for continuous visual monitoring of all samples
- Geometrically optimised bath base for synchronous heating and stirring on an RO 15 magnetic stirrer
- Clear, high-contrast LED display for straightforward monitoring of actual and setpoint temperatures
- Integrated USB interface for reliable PC connection and digital documentation
Product information "IKA Compact Thermostat Package ICC basic IB R RO 15 eco, polycarbonate bath, 0010002471"
The IKA ICC basic IB R RO 15 eco compact thermostat package offers a reliable, thermodynamically optimised system solution for the precise temperature control and simultaneous mixing of sample media in clinical, biological and chemical laboratory environments. This ready-to-connect complete set combines the robust immersion thermostat from the ICC basic range with a specialised, transparent plastic bath. For standardised analytical test series, enzymatic reactions or routine sample preparation in multi-user operations, high temperature stability and seamless visual monitoring are the primary criteria for achieving reproducible results in a way that is gentle on the material and ensures process reliability in day-to-day laboratory work.
Reliable temperature control and high-performance kinetics
The process engineering centrepiece of this package is the ICC basic immersion thermostat. Equipped with a precise microprocessor control system, the unit achieves outstanding temperature stability of ±0.02 K. A clear, brightly lit LED display shows the setpoint and actual temperatures, as well as all key operating statuses, at a glance, ensuring error-free operation. The integrated, powerful pressure and suction pump, with a flow rate of up to 18 litres per minute, ensures excellent fluid-mechanical mixing and a completely homogeneous temperature distribution throughout the entire bath volume, thereby preventing thermal hotspots whilst minimising damage to the material.
Geometric optimisation for synchronous magnetic stirring processes
The material-scientific and design-related distinctive feature of the supplied IB R RO 15 eco plastic bath lies in its specialised geometry. Manufactured from high-purity, impact-resistant polycarbonate (PC), this transparent bath is structurally dimensioned and modified at the base so that it fits perfectly onto a multi-position magnetic stirrer (such as the IKA RO 15 series). This integrated design enables laboratory staff to heat sample vessels precisely in the water bath whilst simultaneously stirring them synchronously via magnetic coupling through the base of the bath. The bath’s crystal-clear design ensures an unobstructed view of the samples at all times, without disrupting the thermodynamic equilibrium.
Digital connectivity and uncompromising health and safety
The electronic system architecture of the ICC basic is tailored to the requirements of modern laboratory workstations. The thermostat unit can be easily connected to a PC via the integrated USB interface, supporting external control, transient data acquisition and the validation of test reports. A comprehensive range of safety features ensures maximum health and safety in day-to-day operation: an adjustable safety circuit protects against thermal overload, a mechanical float switch provides reliable dry-run protection, and visual and audible alarm signals immediately indicate any process deviations.
Technical details
Thermoregulation & Pump Specifications
- Thermostat type: Compact hanging thermostat (ICC basic)
- Operating temperature range: Room temperature +10 °C to 100 °C (temperature limited by the polycarbonate bath)
- Temperature stability in accordance with DIN 12876: ± 0.02 K
- Pump type: Adjustable pressure and suction pump
- Max. flow rate (free flow): 18 l/min
- Max. delivery pressure: 0.3 bar
- Max. suction pressure: 0.2 bar
Tank geometry & materials
- Tank designation: IB R RO 15 eco
- Bath material: High-quality polycarbonate (PC), transparent and dimensionally stable
- Functional geometry: Optimised for use with multi-position magnetic stirrers (specifically the IKA RO 15)
- Max. bath volume: approx. 15 litres
- Cleaning: Resistant to mild laboratory cleaning agents; can be wiped clean without damaging the material
Electronics, interfaces & safety
- Display: Clear LED display showing actual and setpoint values
- Interfaces: USB-B for reliable PC connectivity
- Safety systems: Adjustable safety circuit (overheating protection), visual/audible fault alarm, liquid level float switch (dry-run protection)
- Mains supply: 230 V / 50/60 Hz
Contents of delivery
- 1 x IKA ICC basic immersion thermostat base unit
- 1 x IKA plastic bath IB R RO 15 eco (System MPN: 0010002471)
- 1 x mounting bracket / bath bridge for secure installation
- 1 x mains cable
- 1 x Operating instructions / Quality certificate
Important note: The optional multi-position magnetic stirrer (e.g. IKA RO 15) for synchronous stirring tasks, the bath lid and test tube holders are not included in the standard scope of delivery and must be ordered separately according to your specific application.
Individual requirements & accessories
To make full use of the functionality of the IKA ICC basic IB R RO 15 eco package, we recommend combining it with the original IKA RO 15 multi-position magnetic stirrer. To minimise evaporation losses and reduce energy consumption at operating temperatures above 60 °C, we stock suitable polycarbonate bath lids and floating insulating balls. To ensure the organised placement of your sample vessels, we also offer corrosion-resistant test tube holders and stainless steel inserts. For automated control and documentation of your temperature profiles, the system can be connected via USB to the labworldsoft laboratory software (®). Please use our technical procurement service to configure your complete workstation.
Matching accessories
Fifteen vessels on a single plate, all rotating at the same speed: That is the task of the IKA RO 15. The multi-position magnetic stirrer without heating accommodates 15 stirring positions on a stainless steel surface measuring 280 x 470 mm, with a spacing of 90 mm between the positions. Each station can hold up to 0.4 l of water, with speeds ranging from 0 to 1200 rpm. According to IKA, the variation between stirring stations is 0 per cent, and batch analyses are carried out under reproducible conditions.One speed for all positionsThe coil drive operates wear-free and silently. According to IKA, the rotational speeds at all stirring points remain constant even under load changes. Settings are adjusted via a membrane keypad in increments of 10 rpm. The direction of rotation can be reversed, an error code display reports faults, and the unit is suitable for continuous operation. Stirring rods 25 to 30 mm in length are used, for example IKAFLON 25 or 30 in round, elliptical and cross shapes.Weight, load capacity and cleaningWeighing 8.627 kg, the RO 15 is significantly heavier than the RO 5, which weighs 3.66 kg; however, the platform can support up to 15 kg instead of 5 kg. The design is enclosed and compact; the surface is easy to clean, and according to IKA, the design protects against the ingress of liquids. The protection class is IP 40 in accordance with DIN EN 60529. In Eco Mode, the surface remains cooler. The unit’s power consumption is 36 W, and the mains connection is rated for 100 to 240 V.Typical applicationsBatch testing with up to 15 parallel runs under reproducible conditionsDissolution and suspension series with the same stirring intensity in all vesselsContinuous operation over extended periods, for which the drive is designedComparison of several concentrations or formulations in a single runRO 15 in comparisonThe RO 15 is suitable for laboratories that regularly run series with more than five samples. For smaller series, the RO 5 is sufficient. If the samples need to be heated simultaneously, the IKA RT 5, with 175 W heating power and a maximum temperature of 120 °C, is the right choice, although it has five positions instead of 15.ModelStirring positionsPlateHeatingMax. loadWeightRO 15 (this unit)15280 x 470 mmNo15 kg8.627 kgRO 55120 x 470 mmno5 kg3.66 kgRT 55110 x 495 mm175 W, up to 120 °C5 kg4 kgTechnical detailsNumber of mixing points15Spacer spacing90 mmSpeed variation between stirring points0 %Max. mixing volume per mixing point (H2O)0.4 lMaximum load15 kgSpeed adjustment10 rpm incrementsSpeed range0 to 1200 rpmStirrer rod length25 to 30 mmBase materialStainless steel 1.4301Base dimensions280 x 470 mmDimensions (W x H x D)280 x 60 x 570 mmWeight8.627 kgPermissible ambient temperature range5 to 40 °CPermissible relative humidity80 %Protection classIP 40 (DIN EN 60529)Mains connection100 to 240 V, 50/60 Hz, power consumption 36 WDC voltage / current consumption24 V DC / 1500 mAScope of delivery1 x IKA RO 15 magnetic stirrer1 x removable transparent anti-slip filmMagnetic stir bars are not included. They are available from IKA in packs of five.Warranty and disposalIKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. End-of-life electrical equipment must not be disposed of with household waste; at the end of its useful life, the RO 15 must be sent for separate collection.Individual requirements and procurement serviceMagnetic stir bars in shapes such as round, ellipse, cross, TRIKA and glass are available for the RO 15, as well as the RSE stir bar retriever, the BC 1000 beaker lid, factory calibration certificates and IQ/OQ documents. Our procurement service is available to assist with larger orders involving multiple units or with enquiries regarding suitable accessories.Frequently Asked QuestionsHow many samples can the RO 15 stir at the same time? There are 15 stirring points, each capable of holding up to 0.4 l of water.Does each stirring point operate at the same speed? Yes, according to IKA, the speed variation between the stirring points is 0 per cent.What stirrer length is recommended? 25 to 30 mm.How long is the warranty valid for? IKA’s manufacturer’s warranty: 2 years; extended to 3 years if registered at ika.com/register within 90 days of purchase.
