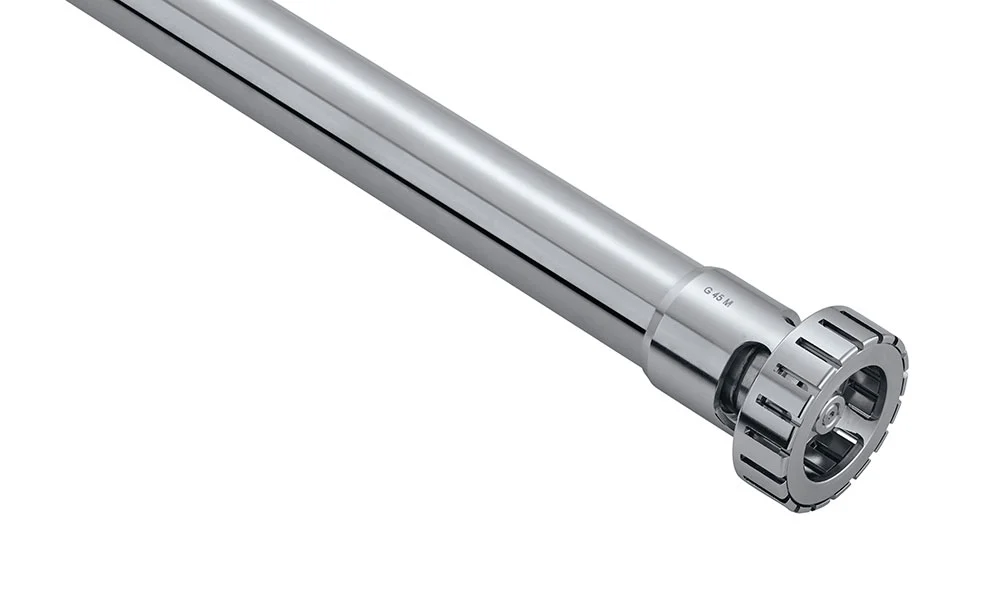

IKA Dispersing Tool S 50 KG - HH - G 45 M, Ø45 mm, #0008003500
€4,384.50
% Manufacturer's RRP: €5,846.00 25% below manufacturer's RRP
Accessories and spare parts are available on request!
Product information "IKA Dispersing Tool S 50 KG - HH - G 45 M, Ø45 mm, #0008003500"
S 50 KG - HH - G 45 M Dispersion tool
Dispersion tool for T 50 digital
drive. Ball-bearing-mounted shaft, single-acting mechanical seal made of carbide/carbide. Suitable for use under vacuum. Solvent-resistant. Sterilisable; short-term operating temperature up to 180°C.
Immersion depth: 70–260 mm
Stator diameter: 45 mm
Working range: 0.5–15 litres
Technical data:
Processable volume (H₂O) 0.5–15 l
Stator diameter 45 mm
Rotor diameter 40.5 mm
Maximum peripheral speed 21.2 m/s
Immersion depth 70–250 mm
Installation length 300 mm
Materials in contact with the product FFPM / WC / AISI 316L
pH range 2–13
Suitable for solvents yes
Maximum operating temperature 150 °C
Sterilisable wet – chemical
Vacuum 1 mbar
Maximum pressure 6 bar
Final particle size of suspensions 25–50 µm
Final particle size of emulsions 5–20 µm
Weight 0.52 kg
