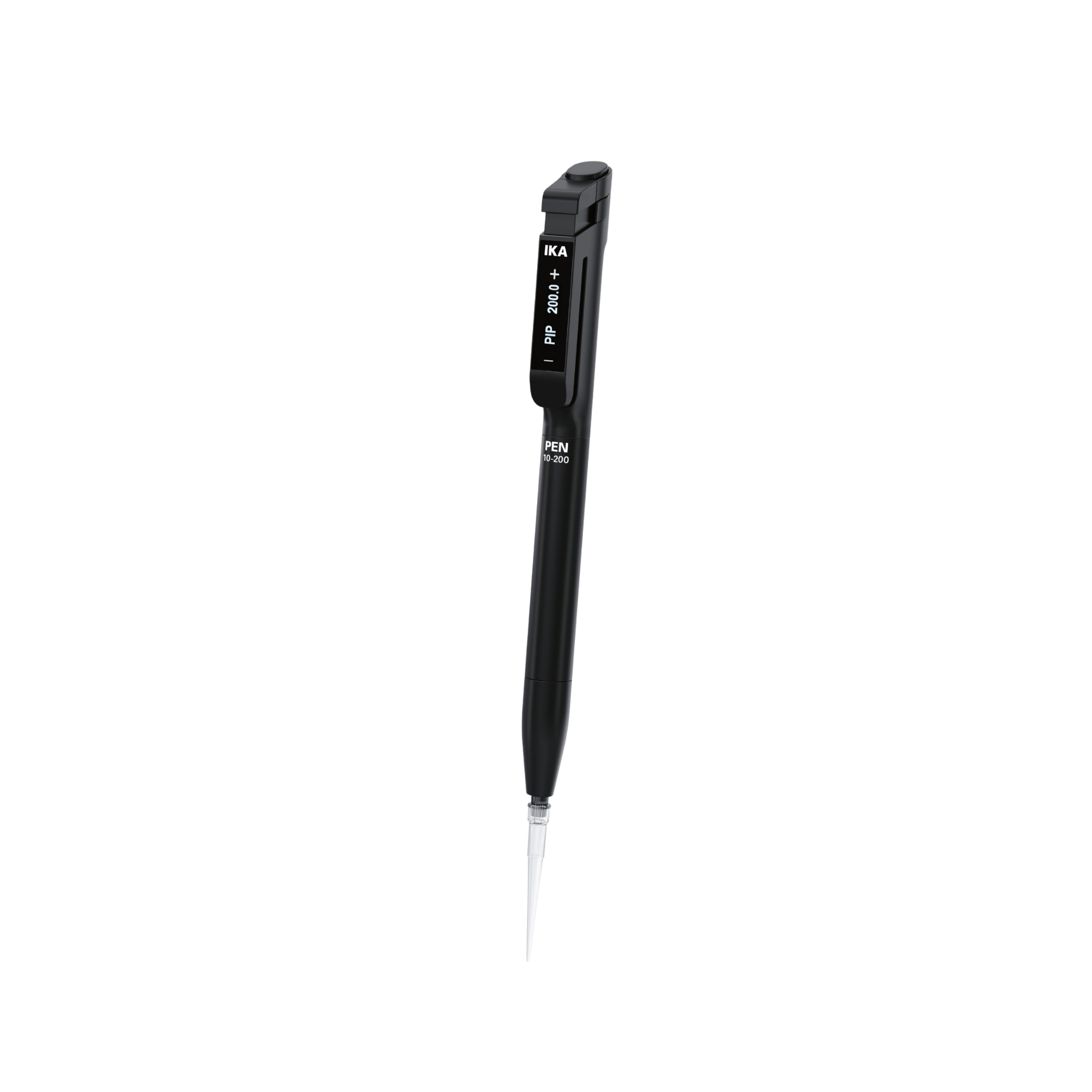

IKA IKA PEN 10 single-channel electronic pipette – 200 µl, air-cushion operated, 0020025103

Important note regarding product availability: This highly innovative liquid-handling system will be officially available from August 2026. Secure your allocation now to modernise your laboratory workstations!

The IKA PEN electronic single-channel pipette (MPN 0020025103) is a highly optimised, ultra-lightweight mechatronic system solution for the precise dosing and transfer of variable liquid volumes in the higher microlitre range. Designed as a groundbreaking air-cushioned piston stroke system, this instrument combines an exceptionally slim, pen-shaped profile with a minimal weight of less than 100 grams. In intensive liquid-handling processes within molecular biology research, pharmaceutical analysis or medical diagnostics, absolutely fatigue-free and high-precision volume control is the primary criterion for eliminating sources of error and guaranteeing gentle handling of materials and process reliability during continuous operation.

Intuitive pen-like handling and outstanding ergonomics

The mechanical system architecture of the IKA PEN breaks with traditional pipette geometries and sets entirely new standards in ergonomics. The slim, perfectly balanced housing guides the hand into a natural, ergonomic grip, thereby noticeably relieving strain on the muscles of the forearm and wrist. This delicate design is the ideal mechatronic solution for long, repetitive pipetting cycles and significantly minimises the risk of work-related strain injuries in multi-user operations. Despite its compact design, the system is technologically engineered without compromise to deliver maximum time savings and intuitive handling without the need for a lengthy training period.

Material excellence through DLC-coated stainless steel

The technical foundation for volume generation is a high-end mechanical piston unit made of pure stainless steel. To permanently minimise frictional resistance and ensure outstanding chemical inertness, the stainless steel piston is sealed with a diamond-like carbon (DLC) coating. This sophisticated material combination guarantees unrivalled mechanical wear resistance and excellent reproducibility. To ensure comprehensive protection against contamination, parts of the pipette’s peripherals are autoclavable and comply in all respects with the strict conformity certificate in accordance with the international standard ISO 8655.

Smart operating concept with dedicated IKA PEN app

The electronic control system of the IKA PEN enables fine volume resolution in increments of 0.1 µl in this model. The pipette features an autonomous power management system based on a replaceable, rechargeable lithium-ion battery, enabling a continuous operating time of up to 8 hours with a charging time of just 3 hours. A technological highlight designed to simplify complex pipetting protocols is wireless connectivity: the pipette can be paired with a smartphone or tablet via the innovative IKA PEN app. The app enhances the user interface with a large display and simplified controls, making traceability, digital documentation and self-calibration easier than ever before.

Technical details

System & Volume Data

• Design / Principle: Piston-stroke pipette with air cushion system
• Operation: Electronically controlled microdrive
• Volume type: Variably adjustable
• Number of channels: 1 (single-channel system)
• Nominal volume: 200 µl
• Volume range: 10 µl to 200 µl
• Increment (step size): 0.1 µl

Measurement accuracy & tolerances (in accordance with ISO 8655)

• Measurement data at nominal volume (200 µl) :
  • Systematic measurement deviation (accuracy): ±1.2 µl (±0.6 %)
  • Random measurement deviation (precision): ±0.4 µl (±0.2 %)
• Measurement data at 50 per cent of the nominal volume (100 µl) :
  • Systematic measurement error (accuracy): ±1.0 µl (±1.0 per cent)
  • Random measurement error (precision): ±0.3 µl (±0.3 per cent)
• Measurement data at 10% of the nominal volume (20 µl) :
  • Systematic measurement deviation (accuracy): ±0.5 µl (±2.5%)
  • Random measurement deviation (precision): ±0.14 µl (±0.7%)
• Certificate of conformity: Yes, certified to ISO 8655

Materials, electronics & geometry

• Piston material: High-purity stainless steel, DLC-coated (Diamond-Like Carbon)
• Autoclavability: Partially autoclavable (shaft components)
• Battery type: Rechargeable lithium-ion battery, type 10440 (convex design)
• Battery capacity: 350 mAh / DC voltage 3.7 V
• Battery life / operating time: Up to 8 hours of continuous operation
• Charging time: approx. 3 hours to full charge
• Dimensions (W x D x H): 15.5 x 28.2 x 204.3 mm
• Net weight: 0.078 kg (78 grams without pipette tip)
• Permissible ambient temperature: 5 to 40 degrees Celsius
• Permissible relative humidity: Up to 80 per cent

Contents

• 1 x IKA PEN electronic single-channel pipette 10–200 µl (MPN: 0020025103)
• 1 x Integrated, rechargeable lithium-ion battery
• 1 x Factory calibration certificate in accordance with ISO 8655
• 1 x Detailed operating instructions / Quick Start Guide

Individual Requirements & Accessories

To make the most of the ergonomic and digital capabilities of the IKA PEN liquid-handling system, we recommend integrating the original IKA system peripherals:

• IKA PEN.Stand (MPN 0020133075): An extremely stable, mechanically robust and space-saving table stand, specially designed for the safe vertical storage of an IKA PEN pipette.
• IKA PEN.WiCo (MPN 0020118751): A smart, wireless external button that can be attached directly to the pipette or used completely separately as an alternative trigger button. It minimises strain on the thumb during repetitive high-throughput tasks.
• Pipette tips & consumables: Our laboratory range includes high-purity, certified pipette tips in the appropriate microlitre volumes (free from DNase, RNase and pyrogens). We would be happy to advise you on absolutely residue-free dispensing when using the purest water or organic matrices. Please use our technical procurement service to configure your ergonomic pipetting workstation.
