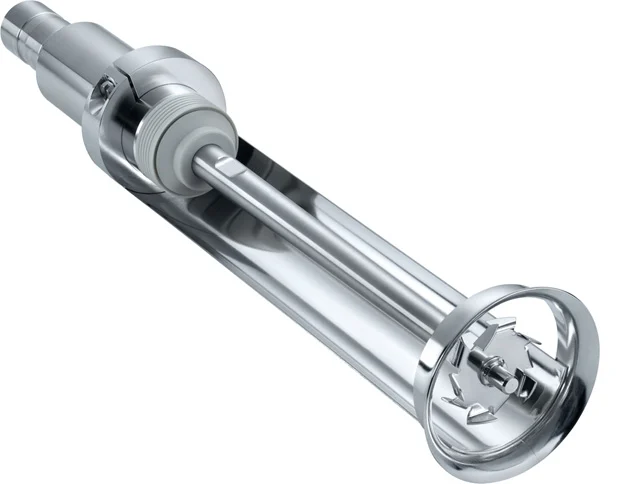

IKA R50 stirring shaft, high speed, #0001689300
€1,979.25
% Regular price: €2,639.00 (25% saved)
Available, delivery time: 3-4 weeks
Accessories and spare parts are available on request!
Product information "IKA R50 stirring shaft, high speed, #0001689300"
R 50 ‘high-speed’ stirring shaft:
The R 50 stirring shaft allows the T 50 disperser to be digitally converted into a high-speed stirrer. This configuration is recommended for applications requiring medium to high shear forces.
The dissolver disc on the mixing head, combined with the high speed, ensures rapid mixing, dissolution and deagglomeration. A safety guard is fitted around the mixing element to ensure operational safety. The R 1402 dissolver is included in the scope of delivery.
Alternatively, the mixing head can be converted to a propeller design using accessory R 1405 to accommodate low to medium viscosities with low shear.
Immersion depth: 180 mm
Working range: 0.25 – 30 l
Rotor diameter: 40 mm
Material: Stainless steel (AISI 316L)
Technical data:
Processable volume (H₂O) 0.25 – 30 l
Rotor diameter 40 mm
Maximum permissible speed 10,000 rpm
Maximum circumferential speed 23.6 m/s
Immersion depth 50 – 180 mm
Installation length 323 mm
Material in contact with the product AISI 316L / AISI 304
pH range 2 – 13
Suitable for solvents yes
Suitable for abrasive substances yes
Maximum operating temperature 150 °C
Dry operation yes
Weight 1.25 kg
