IKA ROTATEMP lo-vi Package, Viscometer Set including Heating System (300 °C), Low-viscosity, 0010014004

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "IKA ROTATEMP lo-vi Package, Viscometer Set including Heating System (300 °C), Low-viscosity, 0010014004"

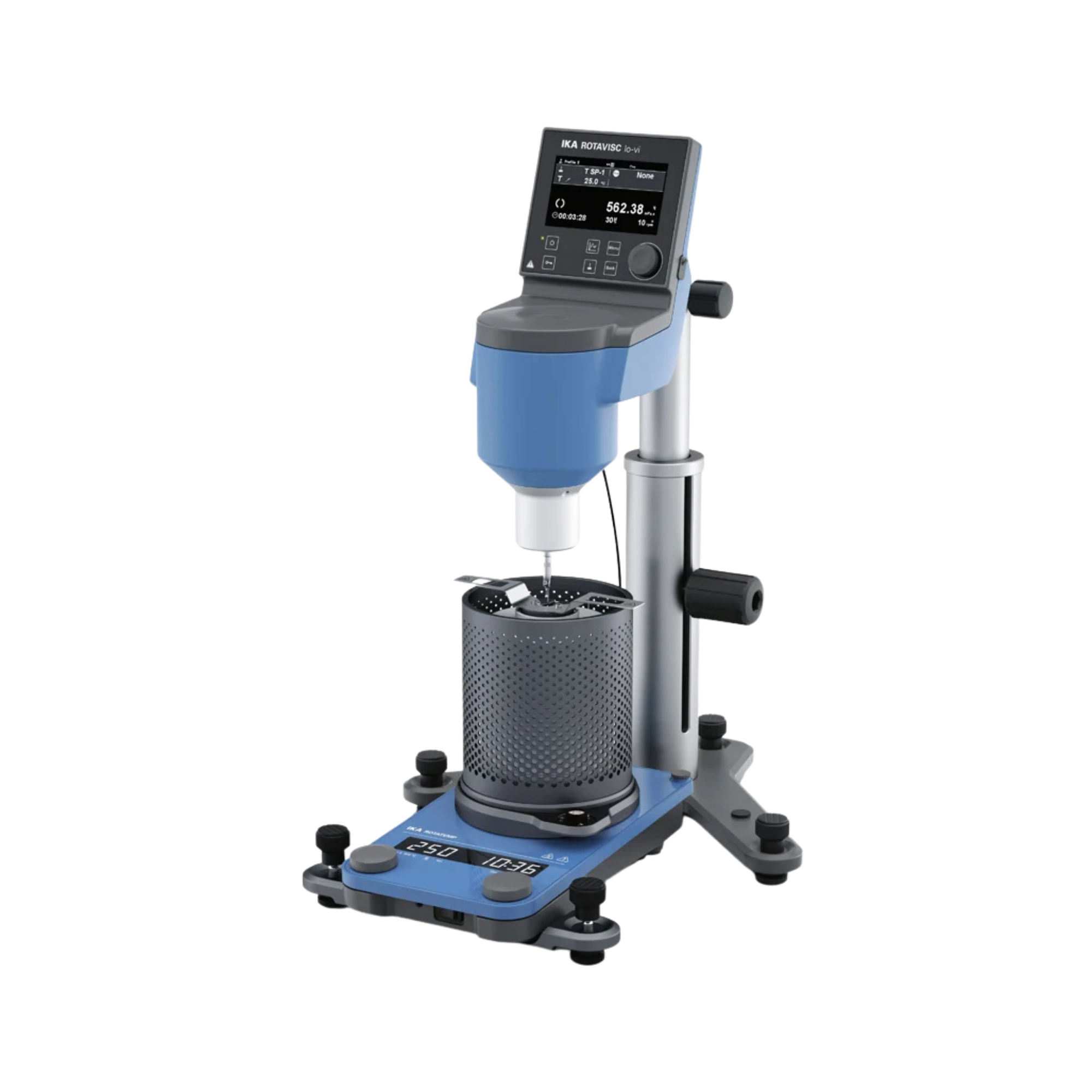

Not every temperature-dependent sample is as tough as bitumen. When heated, waxes, hot-melt adhesives or confectionery mixtures often become thin and fluid before transitioning to a medium viscosity range, and it is precisely this lower range for which the ROTATEMP lo-vi Package is designed. It combines the ROTAVISC drive in the lo-vi range with the IKA ROTATEMP high-temperature system, which heats samples to up to 300 °C in around 16 minutes. The drive, stand, heating system and spindle set are coordinated as a complete package and ready for use.

Spindle set and measuring spring for the lo-vi range

For lower viscosities, a more sensitive measuring spring is fitted than in the me-vi models; the spring torque is just 0.0673 mNm. Together with the SP set-1 spindle set, the instrument covers a range up to 6,000,000 mPas, with an accuracy of 1 % of the measuring range and a repeatability of 0.2 %. This means that even thinner melts remain within the measurement range, whereas with the me-vi instruments they would already be outside the resolution at the lower end.

ROTATEMP high-temperature system

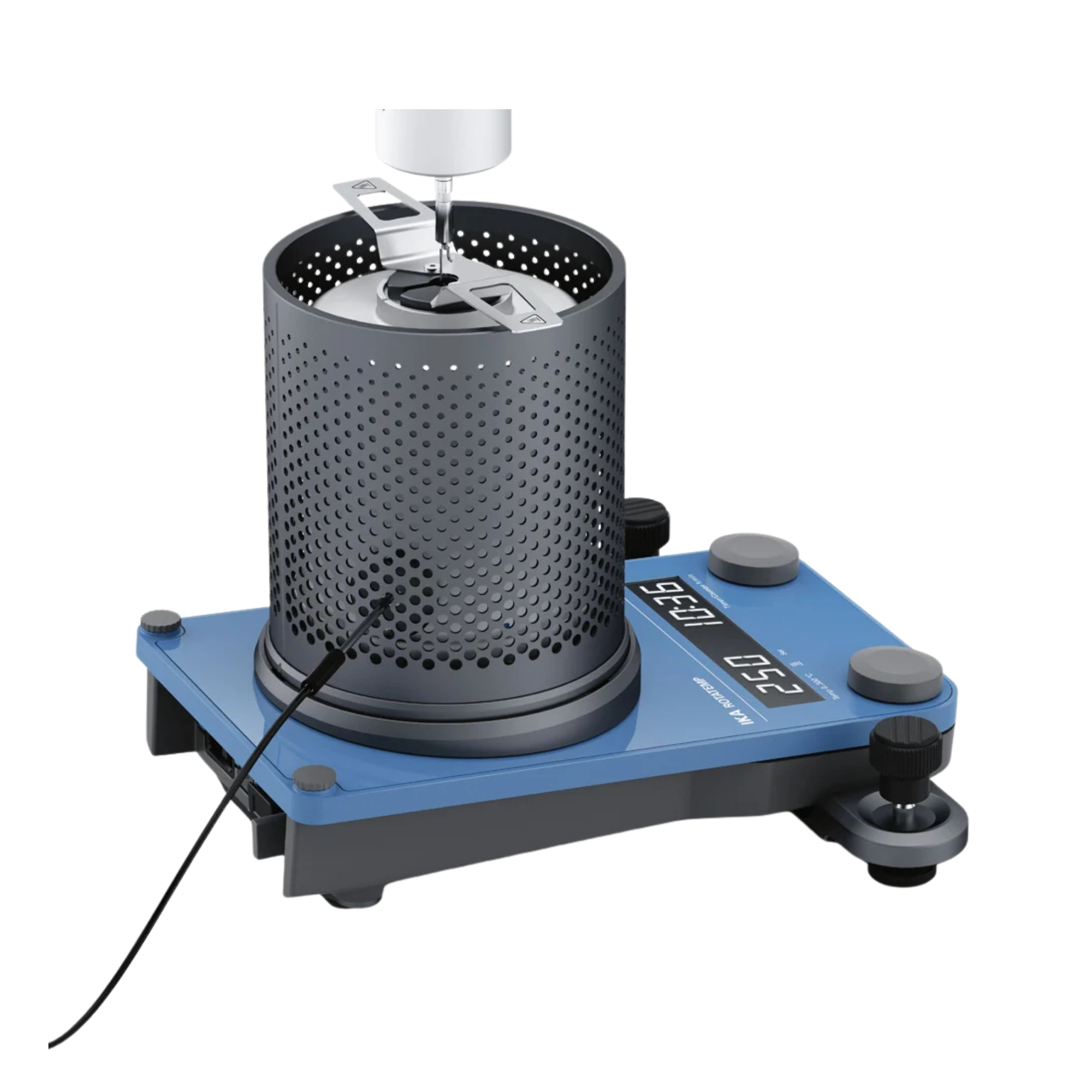

The heating system is mounted directly on the boom, eliminating the need for a separate external water bath. The sample is brought to the target temperature in approximately 16 minutes using magnetic stirrer technology; according to the manufacturer, this is achieved without overheating it. According to the data sheet, the sample’s working temperature ranges from -100 to 300 °C; of particular practical relevance for this package is the heated upper range up to 300 °C, combined with the drive’s low-viscosity measurement range.

Operation and connectivity

The TFT display allows the speed (0.01 to 200 rpm), timer (0.017 to 6,000 min) and measured values to be set and read directly; a ramp function automates recurring test sequences, and the graph function displays the viscosity curve throughout the heating phase. RS 232 and USB-B connect the device to the labworldsoft laboratory software for control, automation and documentation of the measurement series. An external PT-100 temperature sensor with a resolution of 0.1 K supplements the internal measurement.

Operating conditions and compact design

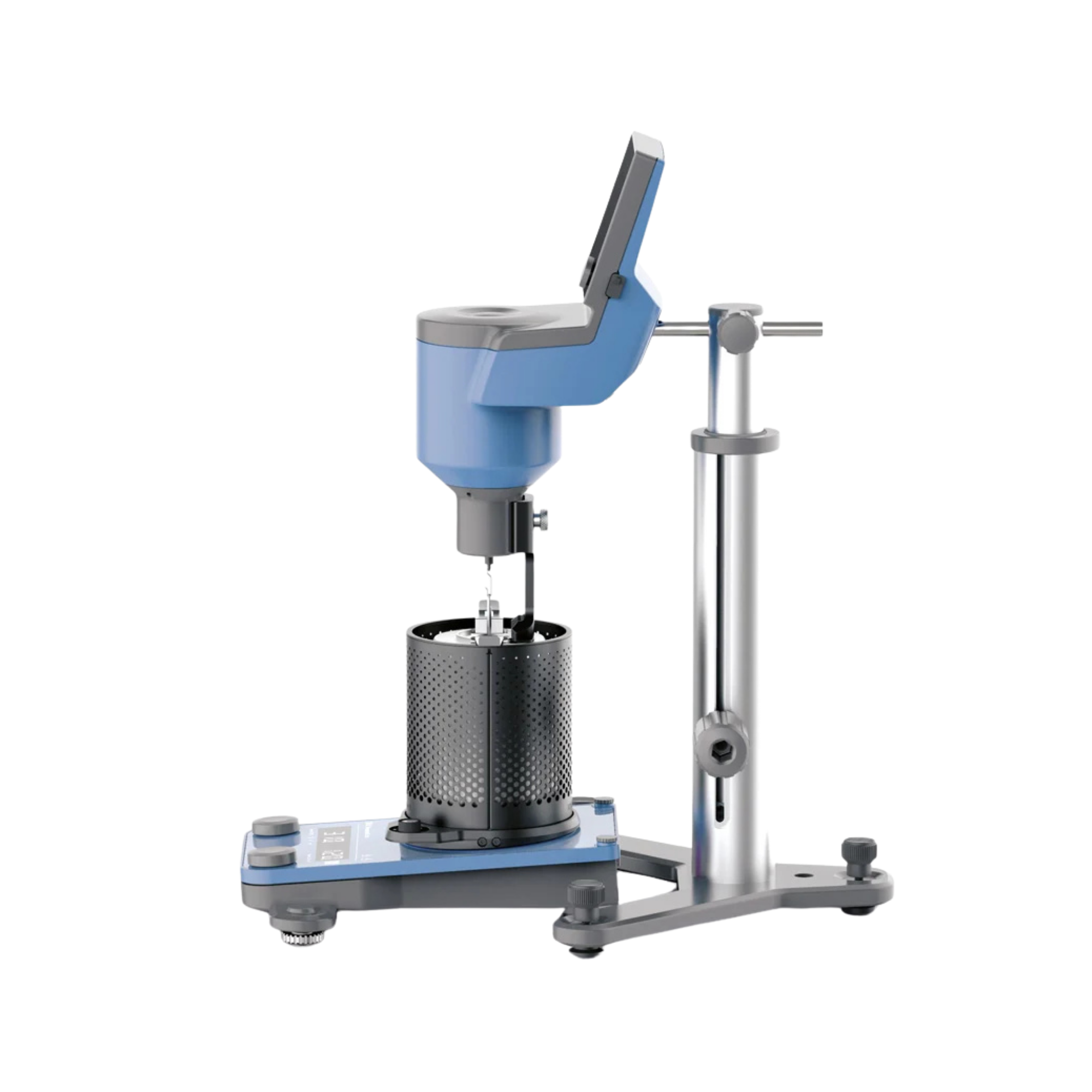

The drive, stand and heating system form a ready-to-connect complete system with a space-saving design; there is no need for a separate setup comprising a bath, pump and tubing. The stand’s telescopic stroke is 200 mm with a permissible dynamic load of 5 kg; the base vessel holds 600 ml of sample. The unit is designed for operation at an ambient temperature of 5 to 40 °C and a maximum relative humidity of 80 %; the motor delivers 4.8 W at the output, rotates clockwise as standard and is protected against overload.

Typical applications

The lo-vi range is suitable wherever samples become flowable when heated but do not reach the extreme viscosity of bitumen or similar materials.

  • Waxes, hot-melt adhesives and polymers in the low-viscosity range
  • Confectionery mixtures and other food melts at a defined temperature
  • Comparative measurement series at different target temperatures up to 300 °C
  • Samples that would be too thin for the me-vi measurement range
  • Quality control with documented, reproducible heating profiles
  • Automated measurement series via labworldsoft and RS 232 or USB-B

Technical details

Viscosity measurement rangeup to 6,000,000 mPas
Accuracy (FSR)1 %
Repeatability (FSR)0.2 %
Spring torque0.0673 mNm
Measuring spindlesSP set-1
Speed range0.01 to 200 rpm
Time setting range0.017 to 6,000 min
Working temperature-100 to 300 °C
StandROTASTAND
Stroke of telescopic stand / max. stroke200 mm / 61 mm
Dynamic load5 kg
Base vessel volume600 ml
InterfacesRS 232, USB-B
Dimensions (W x H x D)351 x 629 x 372 mm
Weight7.1 kg
Connected load100 to 240 V, 50/60 Hz, 24 W (standby 1.6 W), 24 V DC, 1,000 mA
Degree of protectionIP 40 (DIN EN 60529)

Scope of delivery

The drive, stand, heating system and spindle set are supplied as a pre-assembled set; each component can be reordered individually using its own identification number if required, for example for a second temperature sensor.

  • 1 x ROTAVISC lo-vi control S000
  • 1 x ROTASTAND (ID no. 0020116428)
  • 1 x ROTATEMP high-temperature system (ID no. 0020113825)
  • 1 x SP set-1, spindle set (ID no. 0025000319)
  • 1 x PT 100.8 temperature sensor (ID no. 0025000413)

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.

Warranty and procurement service

IKA manufacturer’s warranty: 2 years; extended to 10 years upon registration at ika.com/register within 90 days of purchase. For regularly processed, higher-viscosity samples within the same temperature range, the ROTATEMP me-vi Package is available with a wider measurement range up to 40,000,000 mPas. For SBS ball bearings with high sample throughput, the ROTATEMP SBS me-vi Package is a robust alternative in the higher range. Those who require cooling as well as heating, for example for samples between -25 and 125 °C, are better served by the CBC ROTAVISC lo-vi Package, where a recirculating bath thermostat takes over temperature control instead of the cantilever heating system. We can advise on selecting the appropriate system and the correct measurement range, and can source further accessories, such as replacement spindles, via our procurement service.
