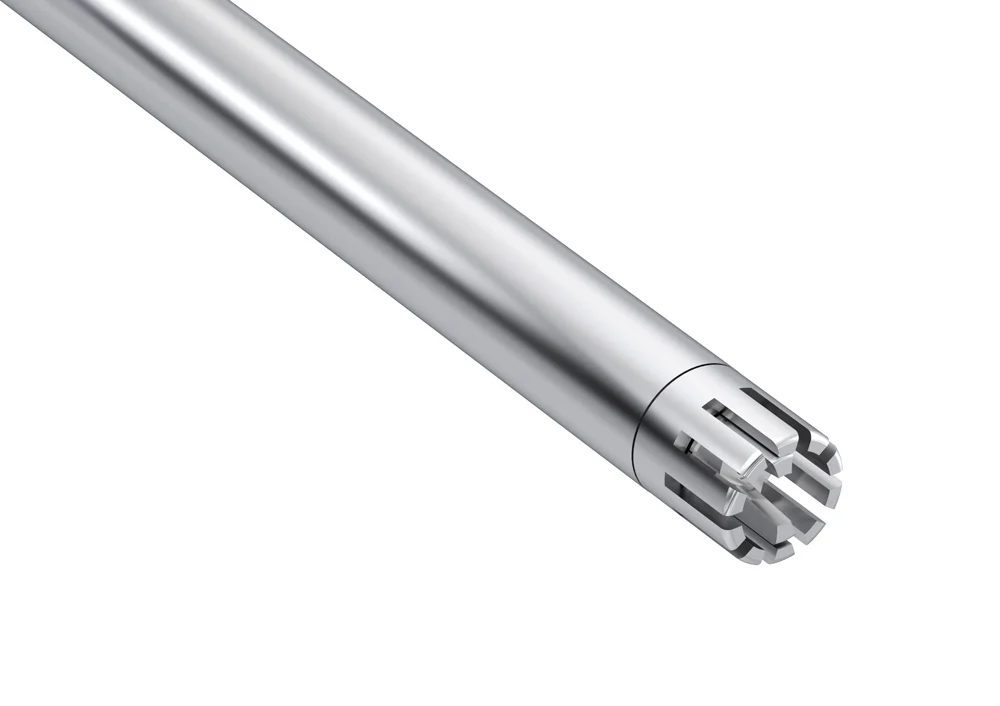

IKA S 10 D - 7 G - KS - 110 dispersing tool, Ø7 mm, 24 pcs, #0020002971
€1,354.50
% Regular price: €1,806.00 (25% saved)
Accessories and spare parts are available on request!
Product information "IKA S 10 D - 7 G - KS - 110 dispersing tool, Ø7 mm, 24 pcs, #0020002971"
S 25 KD - 18 G Dispersion tool
Dispersion tool for the T 25 digital and T 25 easy clean digital/control dispersers
Bearing type and seal type: Ball bearing with PTFE seal and FFKM O-ring
Material in contact with the product: AISI 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilisable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max. operating temperature [°C]: 150
Installation length [mm]: 194
Stator/rotor diameter [mm]: 18/12.7
Gap width [mm]: 0.3
Recommended immersion depth [mm]: 40–185
Recommended working range [ml]: 10–1,500
Technical data:
Processable volume (H₂O) 0.01 – 1.5 l
Stator diameter 18 mm
Rotor diameter 12.7 mm
Gap width between stator and rotor 0.3 mm
Maximum permissible speed 25,000 rpm
Maximum circumferential speed 16.6 m/s
Immersion depth 40–185 mm
Installation length 194 mm
Materials in contact with the product AISI 316L / PTFE / FFPM
pH range 2–13
Suitable for solvents yes
Maximum operating temperature 150 °C
Sterilisability all methods except hot air
Vacuum 100 mbar
Final particle size of suspensions 10–50 µm
Final particle size of emulsions 1–10 µm
FDA compliance yes
Weight 0.336 kg
