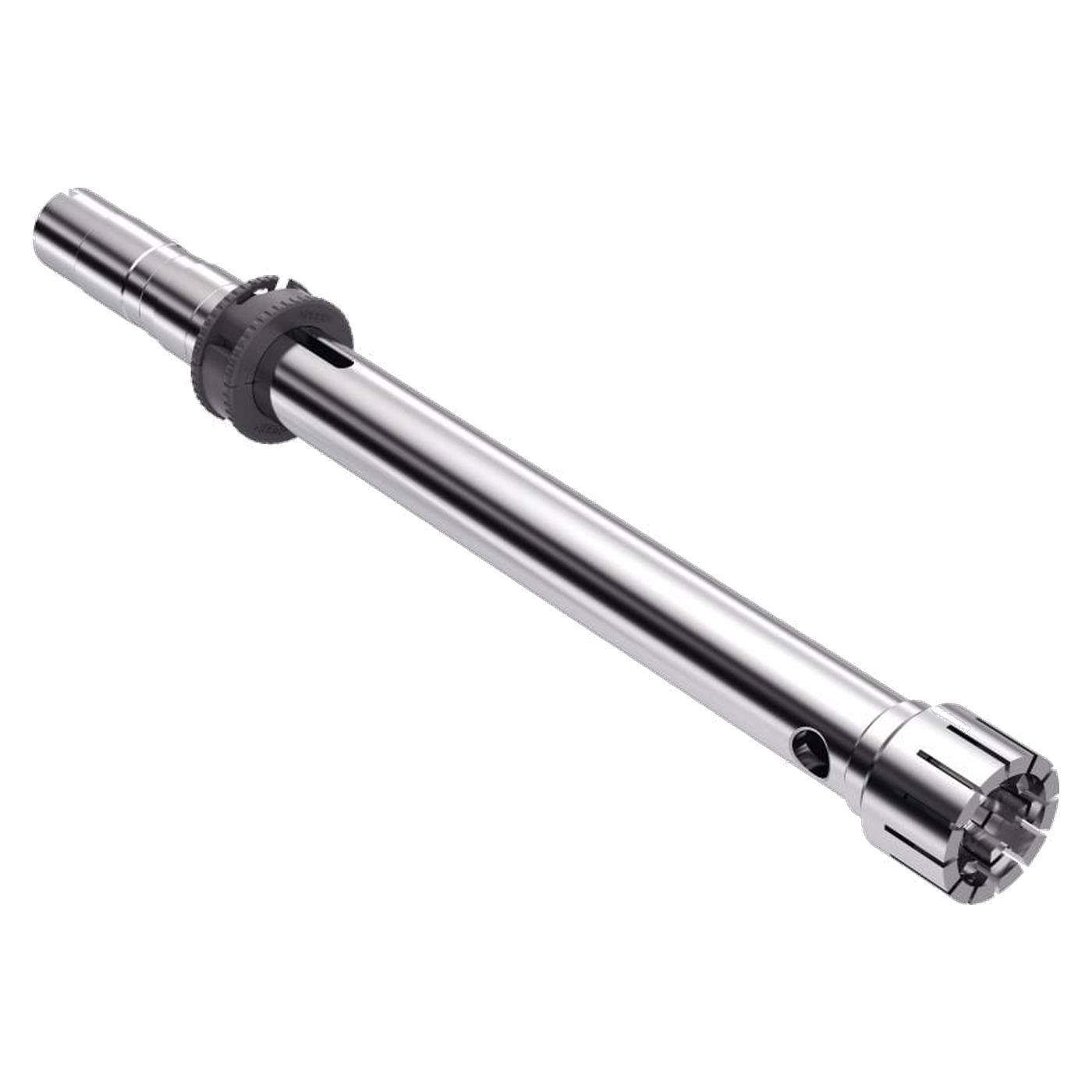

IKA S 25 EC - C - 25 F Dispersing Tool, Ø 25 mm, for T 25 easy clean, 0025007215
€1,394.25
% Manufacturer's RRP: €1,859.00 25% below manufacturer's RRP
- Easy-clean tool: the rotor can be retracted from the stator for cleaning
- Designed for dispersion applications in the cosmetics industry
- Stator 25 mm, rotor 18 mm, working volume 0.1 to 2 l
- Ceramic plain bearings, AISI 316L and ceramic, up to 180 °C
- Final particle size 5 to 25 µm (suspensions), 1 to 5 µm (emulsions)
- For T 25 easy clean digital and control only
Product information "IKA S 25 EC - C - 25 F Dispersing Tool, Ø 25 mm, for T 25 easy clean, 0025007215"
IKA explicitly specifies the S 25 EC - C - 25 F (0025007215) for dispersion applications in the cosmetics industry. The tool, made from AISI 316L and ceramic, has a stator diameter of 25 mm, processes batches from 100 to 2,000 ml and is compatible exclusively with the T 25 easy clean digital and T 25 easy clean control drives.
Cleaning according to the ‘easy-clean’ principle
The name ‘easy clean’ describes the mechanism: when the clamp is turned and lowered, the shaft and rotor drop until the entire rotor emerges from the stator. The shaft tube can then be completely rinsed from the inside as well.
Ceramic plain bearings instead of ball bearings
A ceramic plain bearing is used. AISI 316L and ceramic come into contact with the medium; the pH range is 2 to 13. The tool is suitable for solvents and abrasive substances; the maximum operating temperature is 180 °C. It can be sterilised using any method.
Particle size specifications
The rotor has a diameter of 18 mm, and the gap to the stator is 0.5 mm. At 25,000 rpm, a circumferential speed of up to 23.6 m/s is achieved. The final particle size is between 5 and 25 µm for suspensions and between 1 and 5 µm for emulsions. The immersion depth is 35 to 150 mm, and the installation length is 191 mm.
Further easy-clean tools
From the same range, LT Laborhandel stocks the S 25 EC - C - 25 G and, with a temperature sensor, the S 25 EC - T - C - 25 G. For operation on the drive, IKA offers the T 25 easy-clean digital Solution set.
Typical applications
- Dispersing in the cosmetics industry, batches from 100 to 2,000 ml
- Emulsification with final particle sizes of 1 to 5 µm
- Batch changeover with internal flushing of the shaft tube
- Media containing solvents or abrasive components
Technical details
| Working range (H2O) | 0.1 to 2 l |
| Stator diameter | 25 mm |
| Rotor diameter | 18 mm |
| Stator/rotor gap width | 0.5 mm |
| Max. permissible speed | 25,000 rpm |
| Maximum circumferential speed | 23.6 m/s |
| Penetration depth | 35 to 150 mm |
| Installation length | 191 mm |
| Bearing and seal | Ceramic plain bearings |
| Materials in contact with the product | AISI 316L, ceramic |
| pH range | 2 to 13 |
| Suitable for solvents | Yes |
| Suitable for abrasive substances | Yes |
| Max. operating temperature | 180 °C |
| Sterilisability | all methods |
| Final particle size of suspensions | 5 to 25 µm |
| Final particle size (emulsions) | 1 to 5 µm |
| Weight | 0.4 kg |
Scope of delivery
- 1 x IKA S 25 EC - C - 25 F dispersing tool (single tool)
The drive is not included in the Scope of delivery.
Individual requirements and procurement service
If you require the tool to be supplied together with the appropriate drive unit, do you need a second tool for changing, or guidance on selecting the correct geometry? LT Laborhandel will put together the right combination for your application via its procurement service.
Matching accessories
The “easy clean” concept taken to its logical conclusion: IKA HS 25 EC – DW Holder IKA’s “easy clean” (EC) dispersing tools are revolutionary, as they can be thoroughly cleaned without the need to laboriously dismantle the tool into its individual parts. The IKA HS 25 EC – DW Holder (MPN 0025007380) is the essential accessory for making the most of this advantage in day-to-day laboratory work. The abbreviation ‘DW’ stands for ‘Dish Washer’ (laboratory dishwasher). Reliable cleaning without manual effort With this special holder, you can clean your valuable S 25 EC dispersing tools safely, conveniently and, above all, by machine. Stable positioning: The holder secures the dispersing tool firmly and upright in the washing basket of your laboratory dishwasher. Protection against damage: The delicate tool can no longer tip over due to water pressure, does not slip through the mesh of the washing basket and does not knock against other laboratory vessels. The machine’s spray arm is also not blocked. Optimal rinsing: Thanks to the precisely calculated, upright positioning, the hot water and detergent mixture can flow optimally from bottom to top through the shaft and the rotor-stator gap. Maximum time savings: After sample preparation, simply place the tool into the holder in the dishwasher. There is no need for time-consuming manual scrubbing under running water. Compatibility This holder has been designed exclusively for the current generation of S 25 easy clean dispersing tools (e.g. S 25 EC-C-18G-ST, S 25 EC-T-C-25G, etc.), which are used in combination with the T 25 easy clean (digital and control) drives. (Note: This holder is not intended for use with classic IKA standard tools, which must be completely dismantled for cleaning). Technical data Model: HS 25 EC - DW Holder Product type: Dishwasher holder Compatible tools: IKA S 25 EC (easy clean) series Purpose: Secure, upright positioning of the instrument in the dishwasher basket Durability: Designed to withstand the high temperatures and aggressive cleaning agents found in professional laboratory dishwashers. Contents 1 x IKA HS 25 EC - DW Holder (Note: Dispersing tools and dish racks are not included!) Individual requirements & accessories Do you use the “easy clean” tools with integrated temperature measurement (models with a “T” in their name)? These can also be washed using the DW Holder. We’d be happy to advise you on the ideal combination of drive and tool for your samples. Please contact our procurement service.
