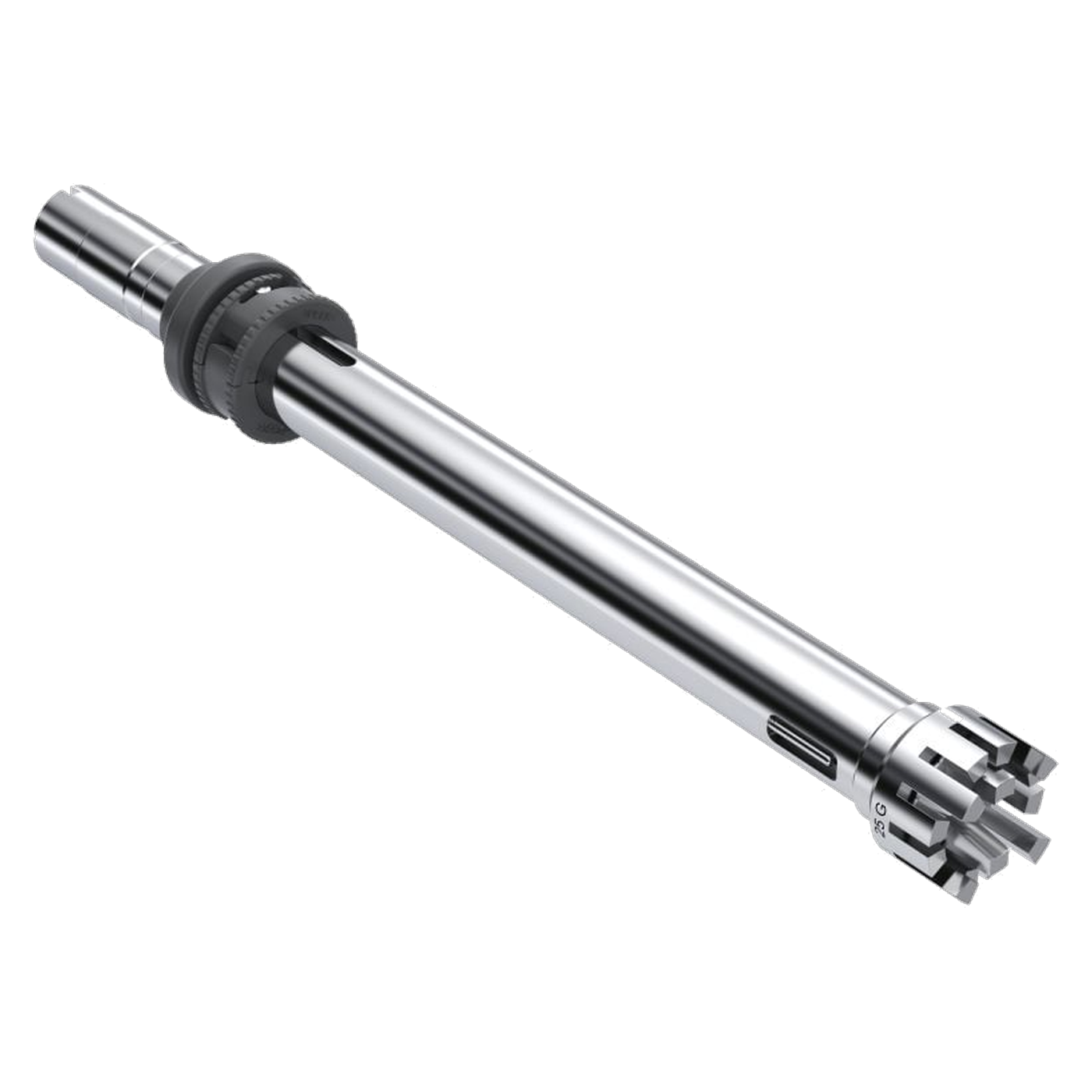

IKA S 25 EC - T - C - 25 G Dispersing Tool, Ø 25 mm, with Temperature Sensor, 0020108999
€1,478.25
% Manufacturer's RRP: €1,971.00 25% below manufacturer's RRP
- Integrated temperature sensor, measuring range 0 to 125 °C, accuracy ±1 K
- Autoclavable, easy-clean tool with a 25 mm stator
- Recommended for biochemistry and pharmacy
- Working range 0.05 to 2 l, immersion depth 45 to 150 mm
- AISI 316L and ceramic, suitable for solvents and abrasive substances
- Sensor function only available with the T 25 easy clean control
Product information "IKA S 25 EC - T - C - 25 G Dispersing Tool, Ø 25 mm, with Temperature Sensor, 0020108999"
On the S 25 EC - T - C - 25 G (0020108999), an integrated sensor measures the temperature in the flask whilst dispersion is taking place. The autoclavable tool with a 25 mm stator is designed for batches of 50 to 2,000 ml and is used with the T 25 easy clean digital and control drives.
In-process temperature measurement
The sensor covers a range of 0 to 125 °C and measures with an accuracy of ±1 K. However, the sensor function can only be activated on the T 25 easy clean control. On the T 25 easy clean digital, the tool operates without a temperature display. The drive also records the tool’s operating time; a message on the display indicates when maintenance is due.
Recommended for biochemistry and pharmaceuticals
IKA describes the tool as being suitable for applications involving mixing at high speed and with high shear force, grinding in liquid, emulsification and reducing particle size in solution. Particular mention is made of the emulsification of heat-sensitive active ingredient intermediates. The sensor allows the temperature to be monitored whilst the unit is running.
Easy cleaning and figures
By turning and lowering the clamp, the shaft and rotor can be removed from the housing, allowing the shaft tube to be flushed from the inside as well. The rotor has a diameter of 17 mm, the gap width is 0.5 mm, and the peripheral speed is up to 22.2 m/s. The final particle size is between 15 and 50 µm for suspensions and between 1 and 10 µm for emulsions. The operating temperature is limited to 120 °C.
Variants without a sensor or with an 18 mm stator
The S 25 EC - T - C - 18 G is available with an 18 mm stator and a temperature sensor; the ST version of this is the S 25 EC - T - C - 18 G ST. The S 25 EC - C - 25 F operates without a sensor, with a 25 mm stator and a finer final particle size (emulsions from 1 to 5 µm).
Typical applications
- Dispersion in biochemistry and pharmaceuticals
- Emulsification of heat-sensitive active ingredient intermediates
- Particle size reduction in solution
- Batches from 50 to 2,000 ml with temperature measurement on the T 25 easy clean control
Technical details
| Working range (H2O) | 0.05 to 2 l |
| Stator diameter | 25 mm |
| Rotor diameter | 17 mm |
| Stator/rotor air gap | 0.5 mm |
| Max. permissible speed | 25,000 rpm |
| Maximum circumferential speed | 22.2 m/s |
| Penetration depth | 45 to 150 mm |
| Installation length | 191 mm |
| Materials in contact with the product | AISI 316L, ceramic |
| pH range | 2 to 13 |
| Suitable for solvents | Yes |
| Suitable for abrasive substances | Yes |
| Temperature measurement range | 0 to 125 °C |
| Temperature measurement accuracy | ±1 K |
| Max. operating temperature | 120 °C |
| Sterilisability | all methods except hot air |
| Final particle size of suspensions | 15 to 50 µm |
| Final particle size of emulsions | 1 to 10 µm |
| Weight | 0.634 kg |

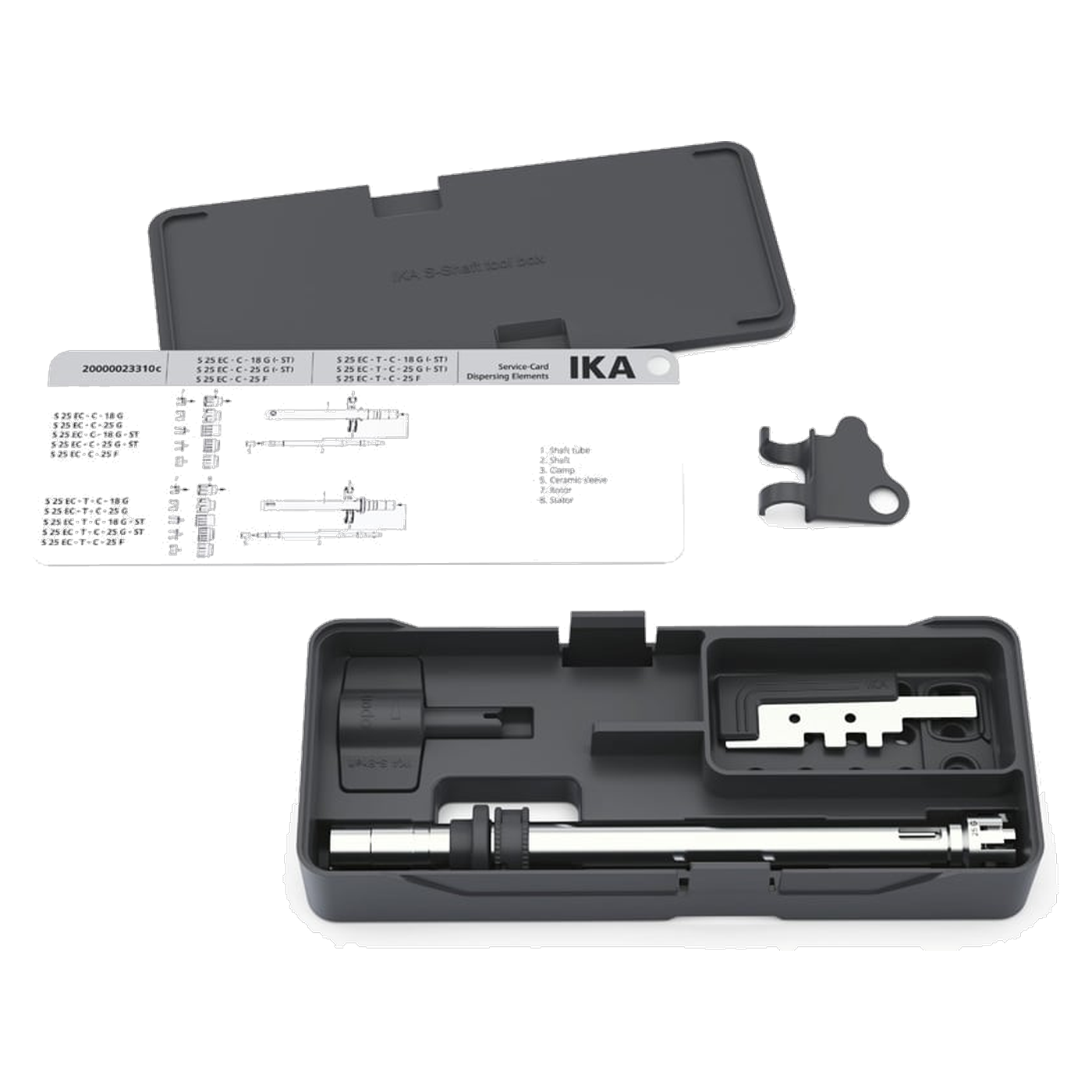

Scope of delivery
- 1 x IKA S 25 EC - T - C - 25 G dispersing tool (single tool)
The drive is not included in the Scope of delivery.
Individual requirements and procurement service
Do you also need the drive unit, a replacement tool or help choosing between the different models? LT Laborhandel sources the components via its procurement service and tailors them to your specific requirements.
