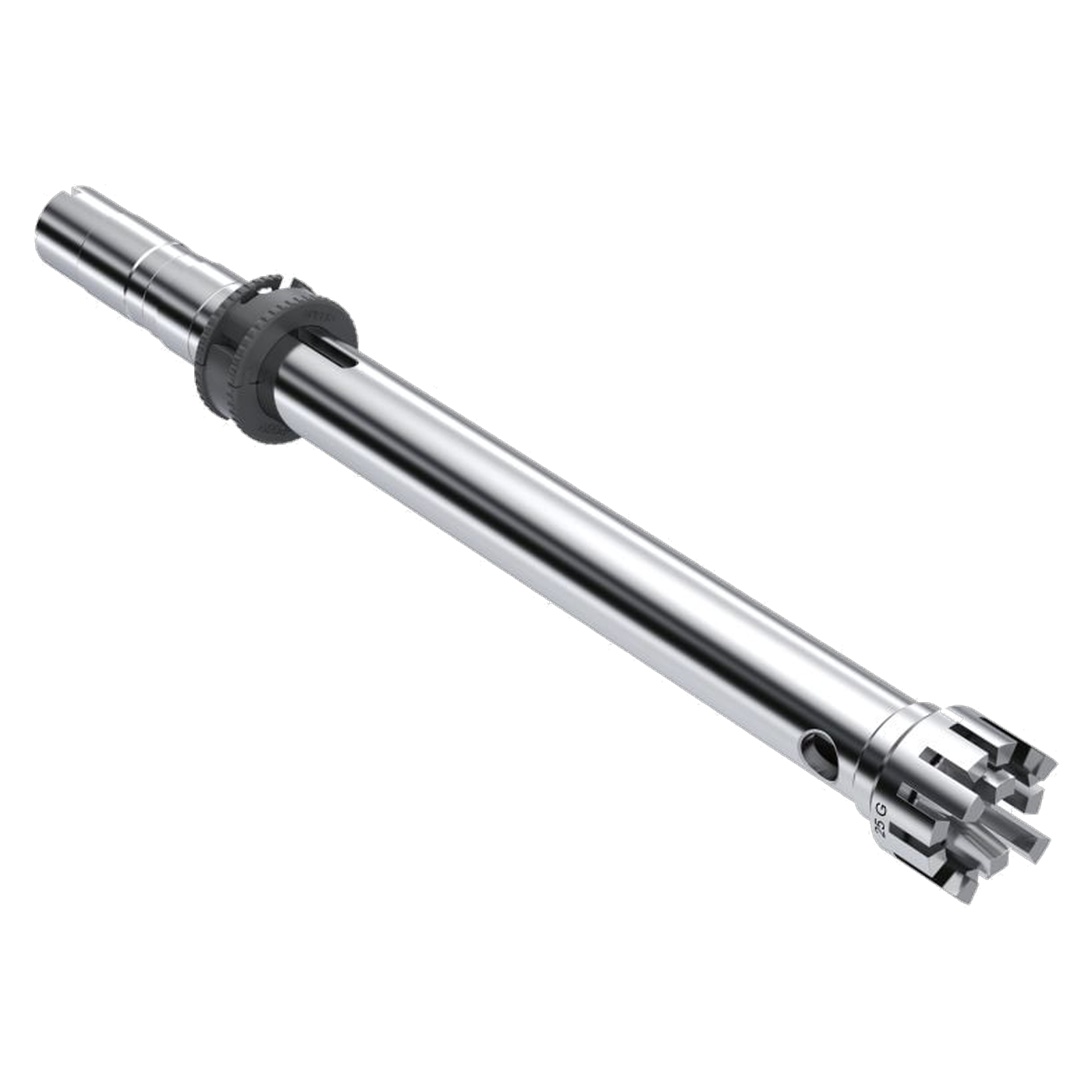

IKA S 25 EC - C - 25 G Dispersing Tool, Ø 25 mm, easy clean, 0020108997
€1,264.50
% Manufacturer's RRP: €1,686.00 25% below manufacturer's RRP
- Easy-clean design; the shaft and rotor can be removed
- Shaft tube can be flushed from the inside
- Stator diameter 25 mm, rotor diameter 17 mm, gap 0.5 mm
- Operating range 0.05 to 2 l
- Parts in contact with the product: AISI 316L and ceramic, suitable for abrasive substances
- All sterilisation methods, up to 180 °C
- For T 25 easy clean digital and control only
Product information "IKA S 25 EC - C - 25 G Dispersing Tool, Ø 25 mm, easy clean, 0020108997"
With the IKA S 25 EC - C - 25 G, cleaning begins with the clamp. Once it has been turned and lowered, the shaft and rotor can be pulled out of the housing, and the shaft tube can also be flushed through completely from the inside. This is the ‘easy-clean’ design.
The tool at a glance
Stator diameter 25 millimetres, rotor diameter 17 millimetres, air gap 0.5 millimetres. The working range is 0.05 to 2 l, the immersion depth 35 to 150 millimetres, and the installation length 191 millimetres. At 25,000 rpm, the rotor reaches a circumferential speed of 22.2 metres per second. IKA specifies a final particle size of 15 to 50 micrometres for suspensions and 1 to 10 micrometres for emulsions.
Materials and Limitations
The parts in contact with the product are made of AISI 316L and ceramic. The unit is suitable for solvents and abrasive substances, with a pH range of 2 to 13. The maximum operating temperature is 180 degrees Celsius, and it can be sterilised using any method. It weighs 0.4 kilograms.
Compatibility
IKA expressly points out that the S 25 EC - C - 25 G is only compatible with the T 25 easy clean digital and control dispersers. The T 25 easy clean digital Solution set is also suitable.
Typical applications
- High-speed mixing with high shear force
- Disintegration in liquid and emulsification
- Disintegration of particles in solution
- Vigorous dissolution of miscible and immiscible solids and liquids in a liquid medium
- Alternating batches, in which the shaft tube is flushed between runs
Technical details
| Stator diameter | 25 mm |
| Rotor diameter | 17 mm |
| Stator/rotor air gap width | 0.5 mm |
| Processable volume (H2O) | 0.05 to 2 l |
| Maximum permissible speed | 25,000 rpm |
| Maximum peripheral speed | 22.2 m/s |
| Immersion depth | 35 to 150 mm |
| Installation length | 191 mm |
| Material in contact with the product | AISI 316L, ceramic |
| pH range | 2 to 13 |
| Suitable for solvents | Yes |
| Suitable for abrasive substances | Yes |
| Max. operating temperature | 180 °C |
| Sterilisability | all methods |
| Final particle size of suspensions | 15 to 50 µm |
| Final particle size (emulsions) | 1 to 10 µm |
| Weight | 0.4 kg |

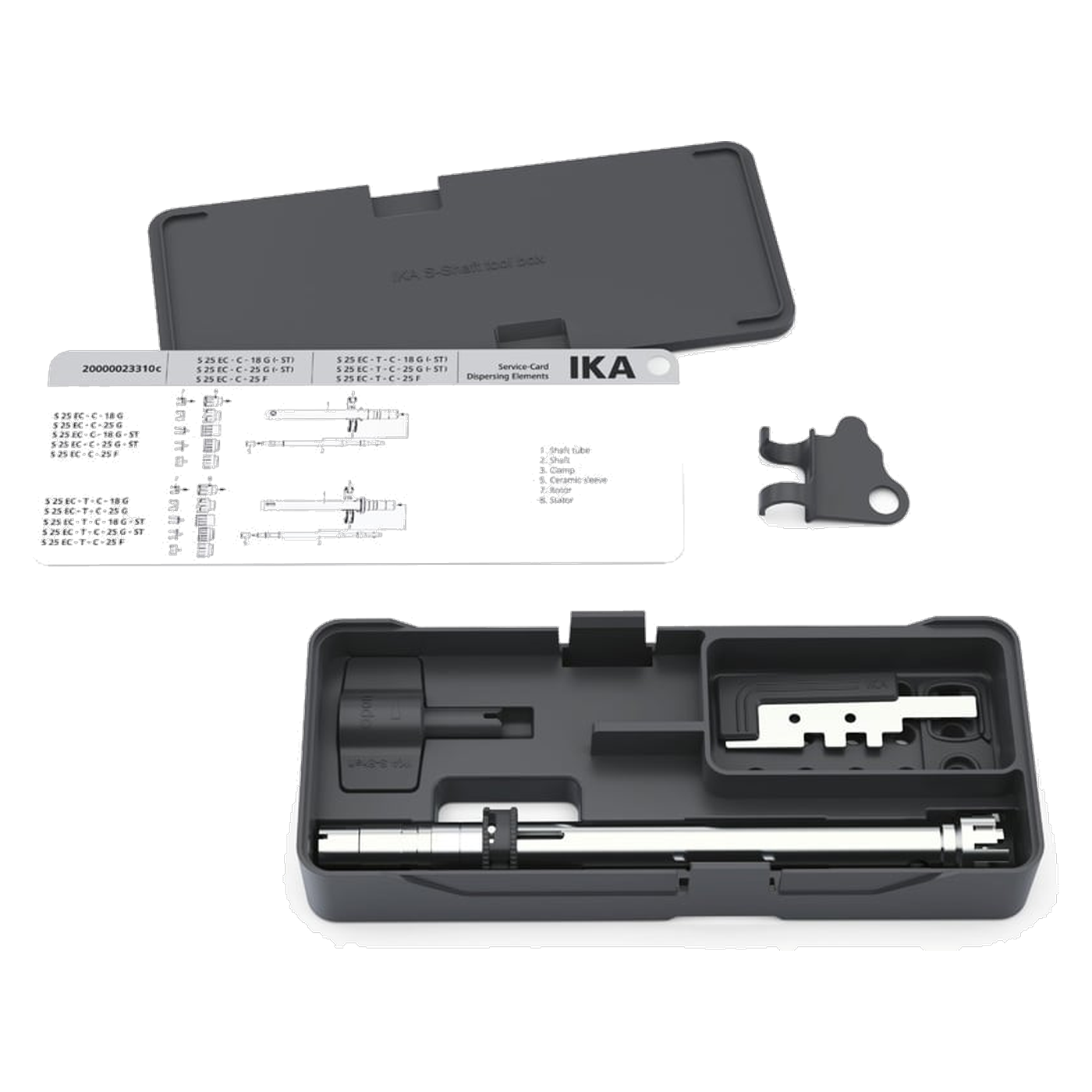

Scope of delivery
- 1 x IKA S 25 EC - C - 25 G dispersing tool (single tool)
- The drive is not included in the scope of delivery.
Siblings in the easy-clean range
The S 25 EC - C - 18 G is available with a stator diameter of 18 millimetres and a working range of 10 to 1,500 millilitres. The S 25 EC - T - C - 25 G is available with an integrated temperature sensor, whilst the S 25 EC - C - 25 F is available in the F geometry.
Selection guide: a comparison
| Tool | Stator / Rotor | Working range (H2O) |
| S 25 EC - C - 25 G (this product) | 25 / 17 mm | 0.05 to 2 l |
| S 25 EC - C - 18 G | 18 / 12.7 mm | 0.01 to 1.5 l |
| S 25 EC - T - C - 25 G | 25 / 17 mm | 0.05 to 2 l |
| S 25 EC - C - 25 F | 25 / 18 mm | 0.1 to 2 l |
Individual requirements and procurement service
LT Laborhandel can source drives from the T-25-easy-clean range and other tools on request. The procurement service is available to assist with any queries regarding selection.
