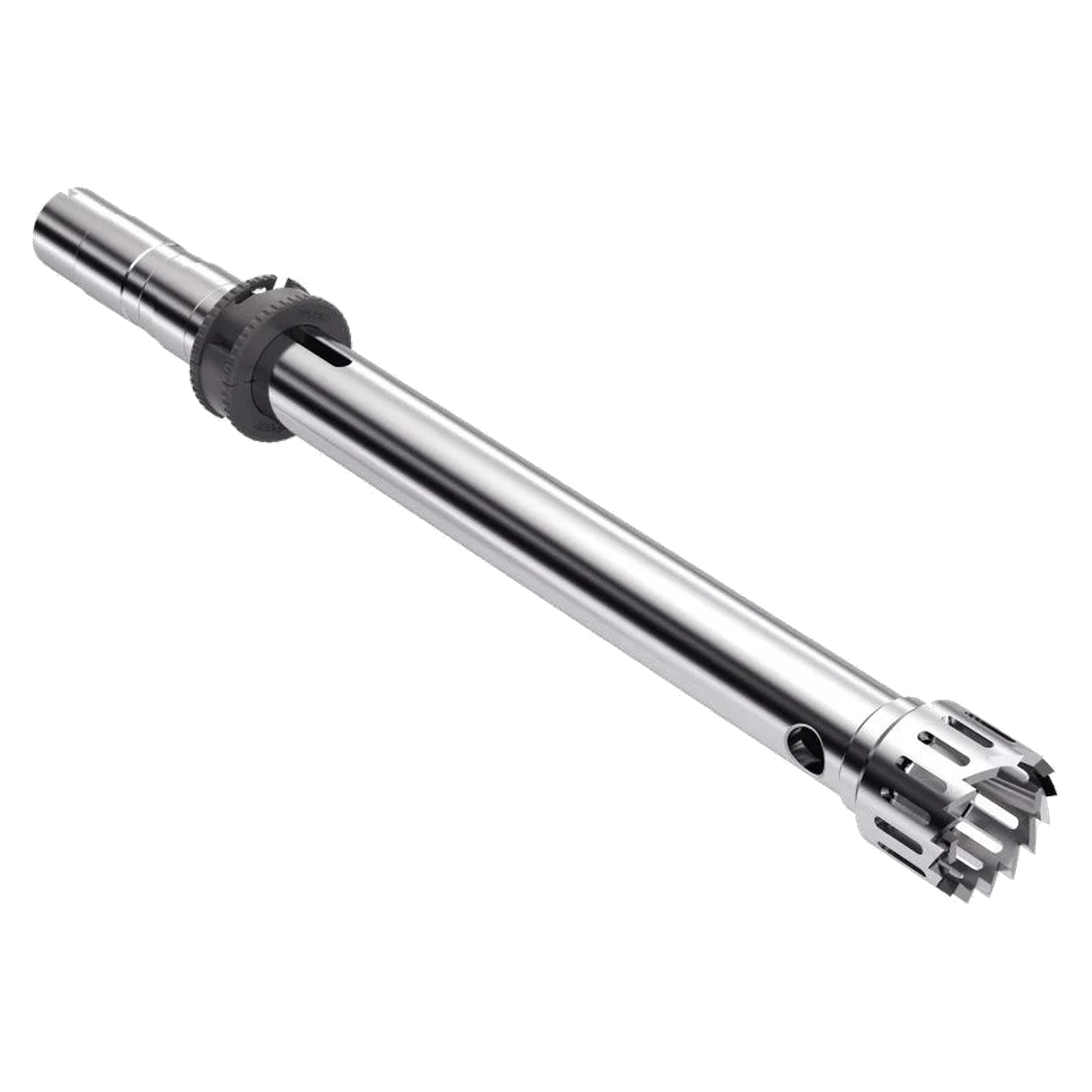

IKA S 25 EC - C - 25 G - ST Dispersion Tool, Ø 25 mm, easy clean, 0025002590
€1,341.75
% Manufacturer's RRP: €1,789.00 25% below manufacturer's RRP
- Easy-clean design with a removable shaft and rotor
- Stator diameter 25 mm, rotor diameter 20 mm, air gap 0.5 mm
- Operating range 0.05 to 2 l, circumferential speed up to 26.2 m/s
- Ceramic plain bearings; parts in contact with the product: AISI 316L and ceramic
- For solvents and abrasive substances, up to 180 °C
- For T 25 easy clean digital and control
Product information "IKA S 25 EC - C - 25 G - ST Dispersion Tool, Ø 25 mm, easy clean, 0025002590"
Dispersing meat or vegetables in liquid: IKA recommends the S 25 EC - C - 25 G - ST (0025002590) for this purpose in food analysis. This easy-clean unit has a 25 mm stator diameter, a 20 mm rotor and processes volumes from 0.05 to 2 l.
Removing the shaft and rotor
After turning and lowering the clamp, the shaft and rotor fall out. The shaft tube can then be rinsed from the inside. The immersion depth is 35 to 150 mm, and the installation length is 191 mm.
Performance data
A maximum speed of 25,000 rpm is permitted, resulting in speeds of up to 26.2 m/s at the rotor circumference. The gap between the rotor and stator is 0.5 mm. The final particle size is 15 to 50 µm for suspensions and 1 to 10 µm for emulsions. The tool weighs 0.4 kg.
Bearings and materials
The shaft runs in a ceramic plain bearing; the parts in contact with the product are made of AISI 316L and ceramic. The tool is suitable for solvents and abrasive substances. The pH range is from 2 to 13, and the operating temperature is up to 180 °C. It may be sterilised using any method.
Drives
IKA approves this tool exclusively for use with the T 25 easy clean digital and the T 25 easy clean control. The T 25 easy clean digital Solution Set is also listed.
Comparison within the 25 mm series
The S 25 EC - C - 25 G operates with a 17 mm rotor diameter and a speed of 22.2 m/s. The S 25 KD - 25 G ST has the same rotor and gap dimensions, uses ball bearings and allows for a vacuum of up to 100 mbar. The S 25 EC - T - C - 25 G is available with a temperature sensor and a 17 mm rotor.
Typical applications
- Dispersion in food analysis, for example meat or vegetables in liquid
- Batch sizes from 0.05 to 2 l
- Work with solvents
- Samples containing abrasive particles
- Sample change with internal cleaning of the shaft tube
Technical details
| Working range (H2O) | 0.05 to 2 l |
| Recommended operating range | 50 to 2,000 ml |
| Stator diameter | 25 mm |
| Rotor diameter | 20 mm |
| Stator/rotor gap width | 0.5 mm |
| Maximum permissible speed | 25,000 rpm |
| Maximum circumferential speed | 26.2 m/s |
| Penetration depth | 35 to 150 mm |
| Installation length | 191 mm |
| Bearing | Ceramic plain bearings |
| Materials in contact with the product | AISI 316L, ceramic |
| pH range | 2 to 13 |
| Suitable for solvents | Yes |
| Suitable for abrasive substances | Yes |
| Max. operating temperature | 180 °C |
| Sterilisability | all methods |
| Final particle size of suspensions | 15 to 50 µm |
| Final particle size (emulsions) | 1 to 10 µm |
| Weight | 0.4 kg |
Scope of delivery
- 1 x IKA S 25 EC - C - 25 G - ST dispersing tool (single tool)
- The drive is not included in the scope of delivery.
