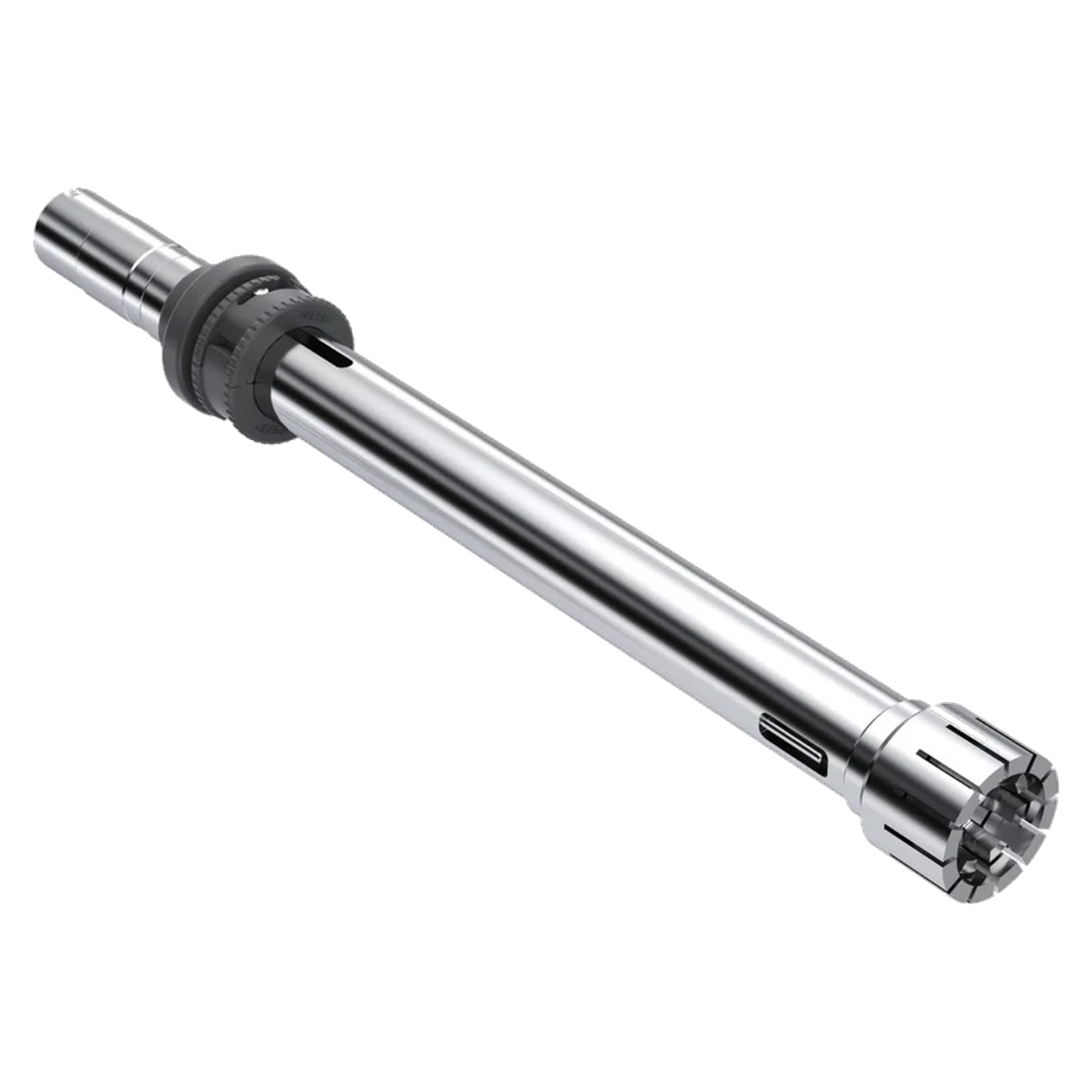

IKA S 25 EC - T - C - 25 F Dispersing Tool, Ø 25 mm, with Temperature Sensor, 0025007199
€1,610.25
% Manufacturer's RRP: €2,147.00 25% below manufacturer's RRP
- Integrated temperature sensor, measuring range 0 to 125 °C
- Operating hours monitoring with maintenance reminder on the drive display
- Stator diameter 25 mm, rotor diameter 18 mm, air gap 0.5 mm
- Operating range 0.01 to 2 l, final fineness for emulsions 1 to 5 µm
- Ceramic plain bearings; AISI 316L and ceramic in contact with the product
- For the T 25 easy clean control
Product information "IKA S 25 EC - T - C - 25 F Dispersing Tool, Ø 25 mm, with Temperature Sensor, 0025007199"
The S 25 EC - T - C - 25 F (0025007199) measures the temperature within the batch itself: the mould contains a sensor for 0 to 125 °C. It has a 25 mm stator and an 18 mm rotor, processes volumes from 0.01 to 2 l and follows the ‘easy-clean’ principle. IKA specifies the T 25 easy clean control as the drive unit.
Sensor and operating hours
Temperature is measured during operation via the integrated sensor. The tool also records operating hours. When maintenance is due, a message appears on the drive’s display. The tool’s maximum operating temperature is 120 °C.
easy clean
After turning and lowering the clamp, the shaft and rotor fall out. The shaft tube can then be rinsed from the inside. The shaft runs in a ceramic plain bearing; the parts in contact with the product are made of AISI 316L and ceramic.
Geometry and precision
The gap between the rotor and stator is 0.5 mm. A speed of 25,000 rpm is permitted, with speeds of up to 23.6 m/s at the rotor circumference. The immersion depth is 45 to 150 mm, and the installation length is 191 mm. The final fineness is 5 to 25 µm for suspensions and 1 to 5 µm for emulsions. The tool weighs 0.634 kg and is suitable for solvents and abrasive substances. The pH range is from 2 to 13; sterilisation may be carried out using any method except hot air.
Without a sensor or with a different rotor
Without a temperature sensor, the same geometry is available as the S 25 EC - C - 25 F with an operating temperature of up to 180 °C. The S 25 EC - T - C - 25 G operates with a sensor, but features a 17 mm rotor and a speed of 22.2 m/s.
Typical applications
- Dispersing in the cosmetics sector
- Batches from 0.01 to 2 l with temperature measurement
- Emulsions with final particle sizes of 1 to 5 µm
- Work with solvents
- Batch runs with maintenance alerts based on operating hours
Technical details
| Working range (H2O) | 0.01 to 2 l |
| Recommended working range | 100 to 2,000 ml |
| Stator diameter | 25 mm |
| Rotor diameter | 18 mm |
| Stator/rotor gap width | 0.5 mm |
| Max. permissible speed | 25,000 rpm |
| Maximum circumferential speed | 23.6 m/s |
| Penetration depth | 45 to 150 mm |
| Installation length | 191 mm |
| Bearing | Ceramic plain bearings |
| Materials in contact with the product | AISI 316L, ceramic |
| pH range | 2 to 13 |
| Suitable for solvents | Yes |
| Suitable for abrasive substances | Yes |
| Temperature measurement range | 0 to 125 °C |
| Max. operating temperature | 120 °C |
| Sterilisability | all methods except hot air |
| Operating hours display | Yes, maintenance reminder on the drive display |
| Final fineness of suspensions | 5 to 25 µm |
| Final fineness of emulsions | 1 to 5 µm |
| Weight | 0.634 kg |

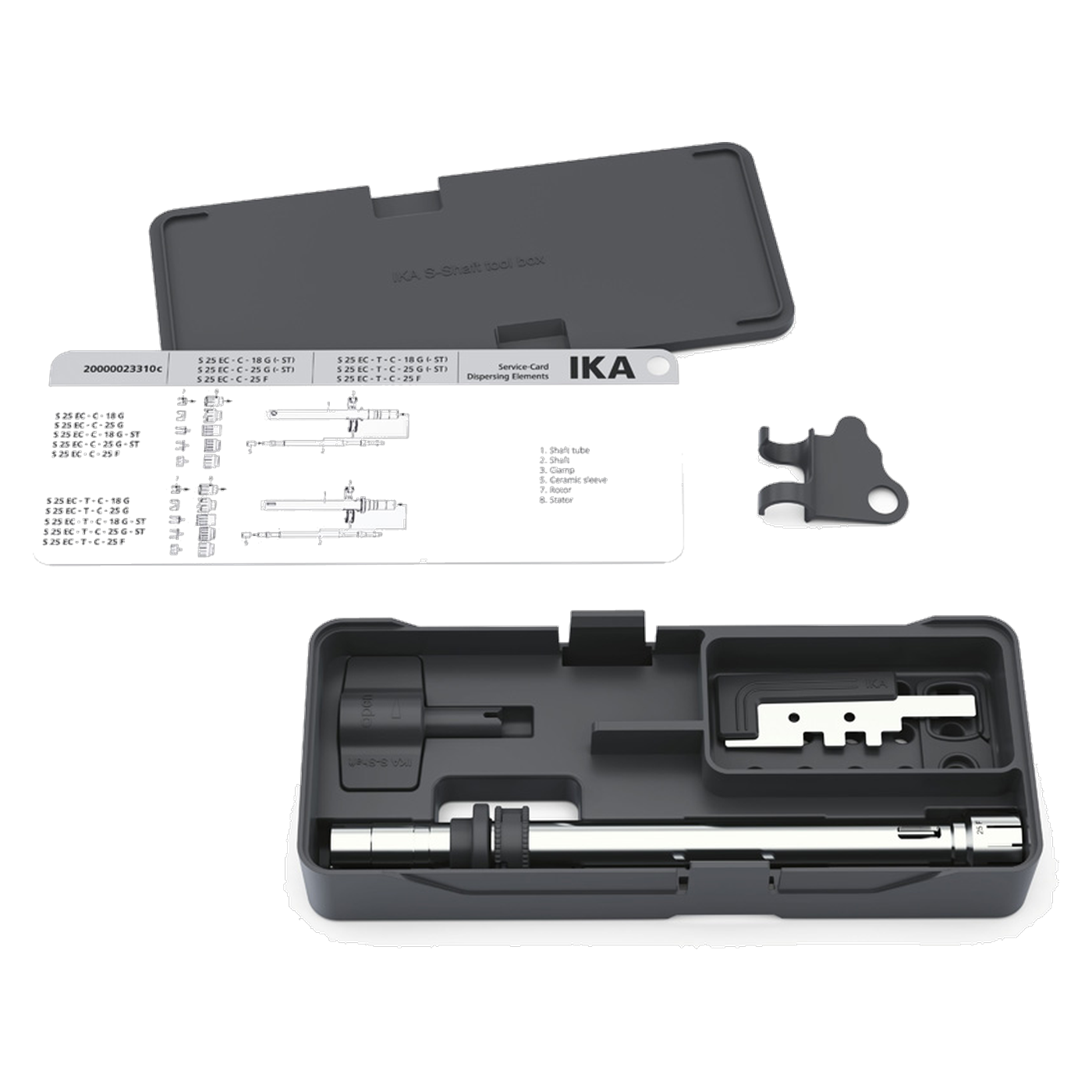

Scope of delivery
- 1 x IKA S 25 EC - T - C - 25 F dispersing tool (single tool)
- The T 25 easy clean control drive is not included in the Scope of delivery.
Individual requirements and procurement service
LT Laborhandel can supply the T 25 easy clean control drive and other tools on request. The procurement service can assist with selection.
